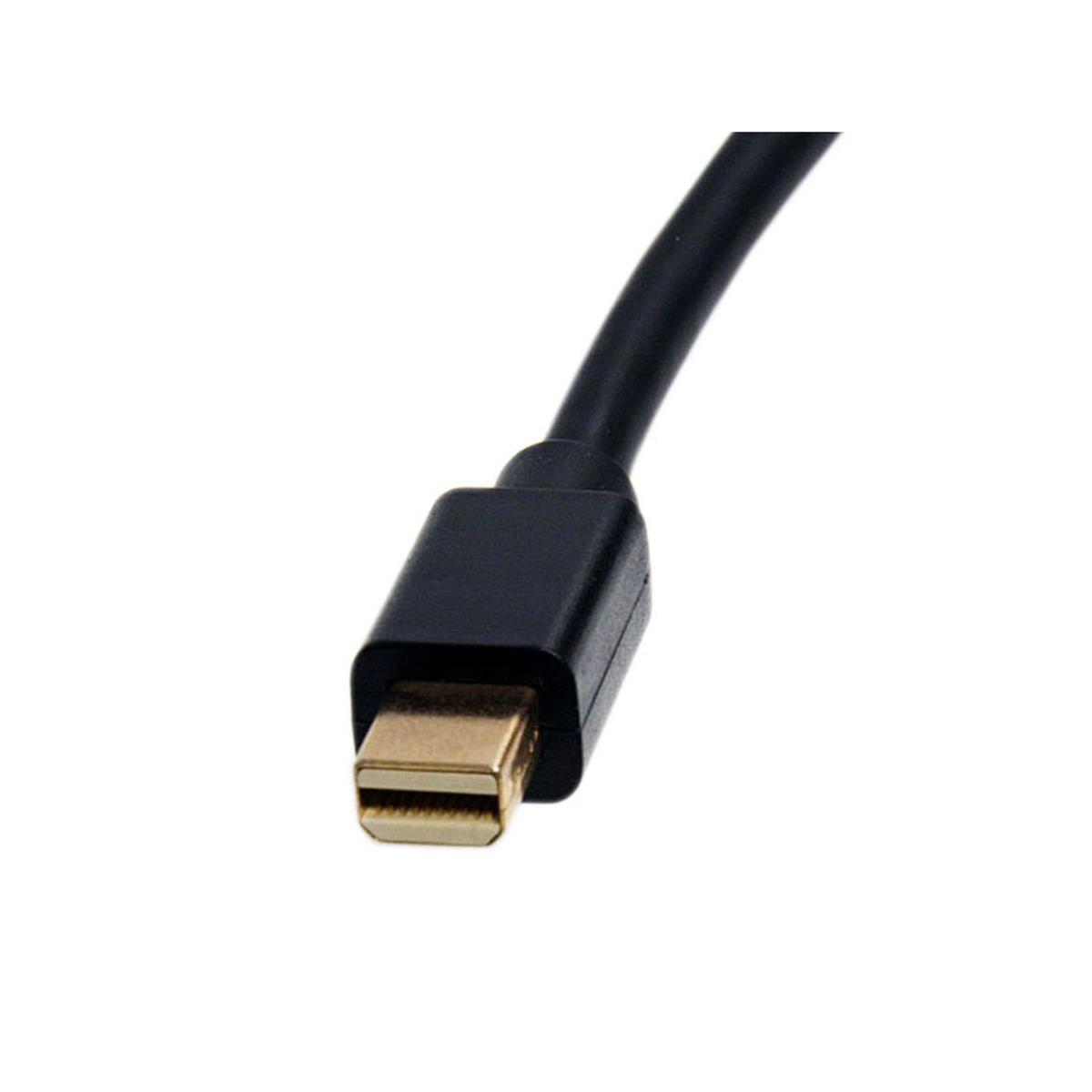

Mini DisplayPort Hdmi Video Adapter Converter
ITCurry #: 75644798 | Article #: MDP2HDMI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Connect an HDMI® enabled display to a Mini DisplayPort® equipped PC or MAC
This Mini DisplayPort to HDMI® adapter lets you connect your mDP computer to an HDMI, television, projector or monitor. The adapter works with Mini DisplayPort computers like your Ultrabook™ or any of the Microsoft® Surface™ Pro devices with mDP.
Easily connect your Mini DisplayPort computer to an HDMI display
The mDP to HDMI adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to an HDMI display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.
Works with HD TVs
The Mini DisplayPort adapter features a female HDMI connector that supports 7.1 audio, making your mDP computer fully compatible with an HDMI television or projector in your home or around your office.
Designed for maximum portability
The Mini DisplayPort to HDMI converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Crystal-clear picture quality
With support for video resolutions up to 1080p, you’ll be surprised at the picture spectacular picture quality this adapter provides. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
The MDP2HDMI is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.13 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
| Chipset | NXP Semiconductors PTN3361B |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
| Certification | RoHS, CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 20 g |
| Width | 40 mm |
| Depth | 76.2 mm |
| Height | 15 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 17 mm |
| Package weight | 29 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 504 mm |
| Master (outer) case length | 332 mm |
| Master (outer) case height | 212 mm |
| Products per master (outer) case | 220 pc(s) |
