Product Information

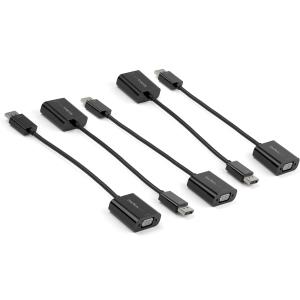

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.18 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| DisplayPort version | 1.2 |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| HBR2 support | Yes |
| Product colour | Black |
| Chipset | Analogix - ANX9833 |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Certification | RoHS, CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -10 - 80 øC |
| Operating relative humidity (H-H) | 10 - 85% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 27 g |
| Width | 35 mm |
| Depth | 220 mm |
| Height | 8 mm |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 36 g |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 213 mm |
| Products per master (outer) case | 150 pc(s) |
