KVM Switch Kit 16 Port 1u USB Rackmount With Osd And Cables
ITCurry #: 75645341 | Article #: SV1631DUSBUK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
A complete 16-port USB KVM kit, including all necessary cables and accessories

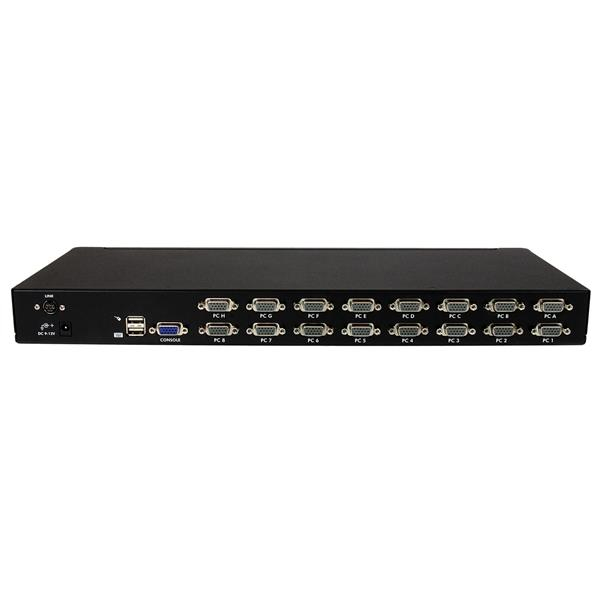

The SV1631DUSBUK 16 Port 1U Rack Mount USB KVM Switch Kit with OSD and Cables offers a well-appointed KVM switch that includes all of the cables and accessories required to connect to 16 servers or PCs right out of the box, making setup convenient and simple.

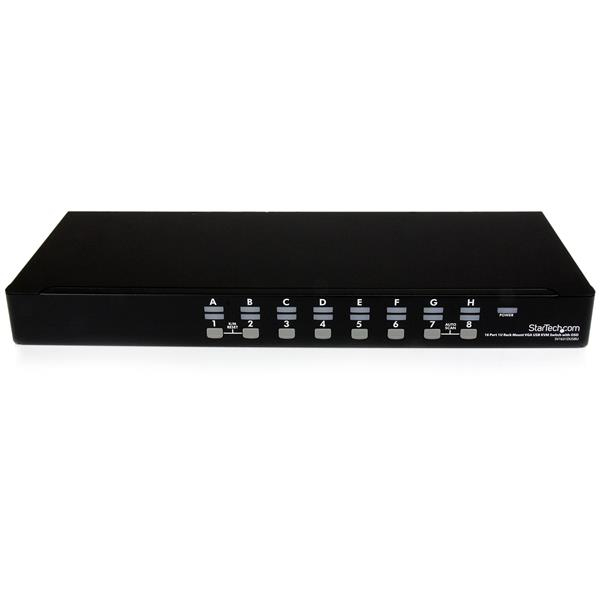

The USB KVM delivers a dependable computer management tool that allows you to control up to 16 USB-connected computers from a single keyboard, mouse and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display.
A suitable addition to server room operations, the 16-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 136 computers from this single switch.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

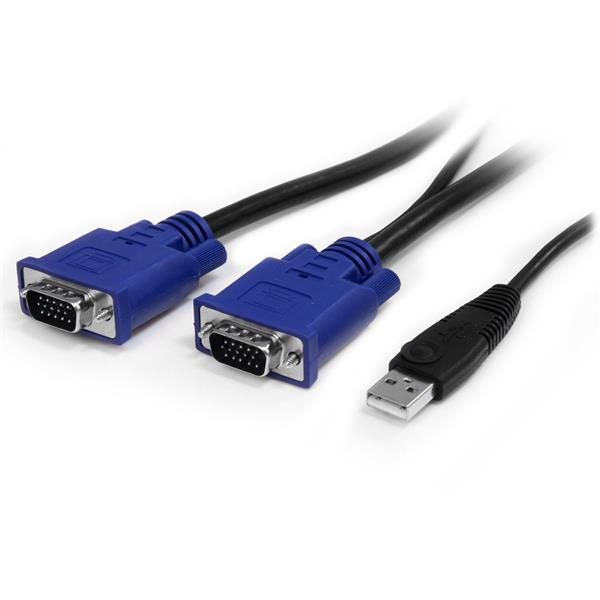

- For simple setup, the KVM cables to connect all 16 ports to servers and PCs are included in the box
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; this unique KVM extracts the keyboard strokes from the USB connection ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in almost any environment
| Ports & interfaces | |
| Video port type | VGA |
| USB 2.0 ports quantity | 2 |
| Performance | |
| Maximum resolution | 1920 x 1440 pixels |
| Design | |
| Product colour | Black |
| LED indicators | Power |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 3.1 kg |
| Packaging data | |
| Package width | 263 mm |
| Package depth | 593 mm |
| Package height | 120 mm |
| Package weight | 6.06 kg |
| Packaging content | |
| Cables included | VGA |
| Other features | |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 540 x 180 x 45 mm |
| Ports quantity | 16 |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
