TRIPP LITE 2-Port USB/HD Cable KVM Switch with Audio/Video Cables and USB Peripheral Sharing
ITCurry #: 57905270 | Article #: B032-HUA2
Related products
Product Information

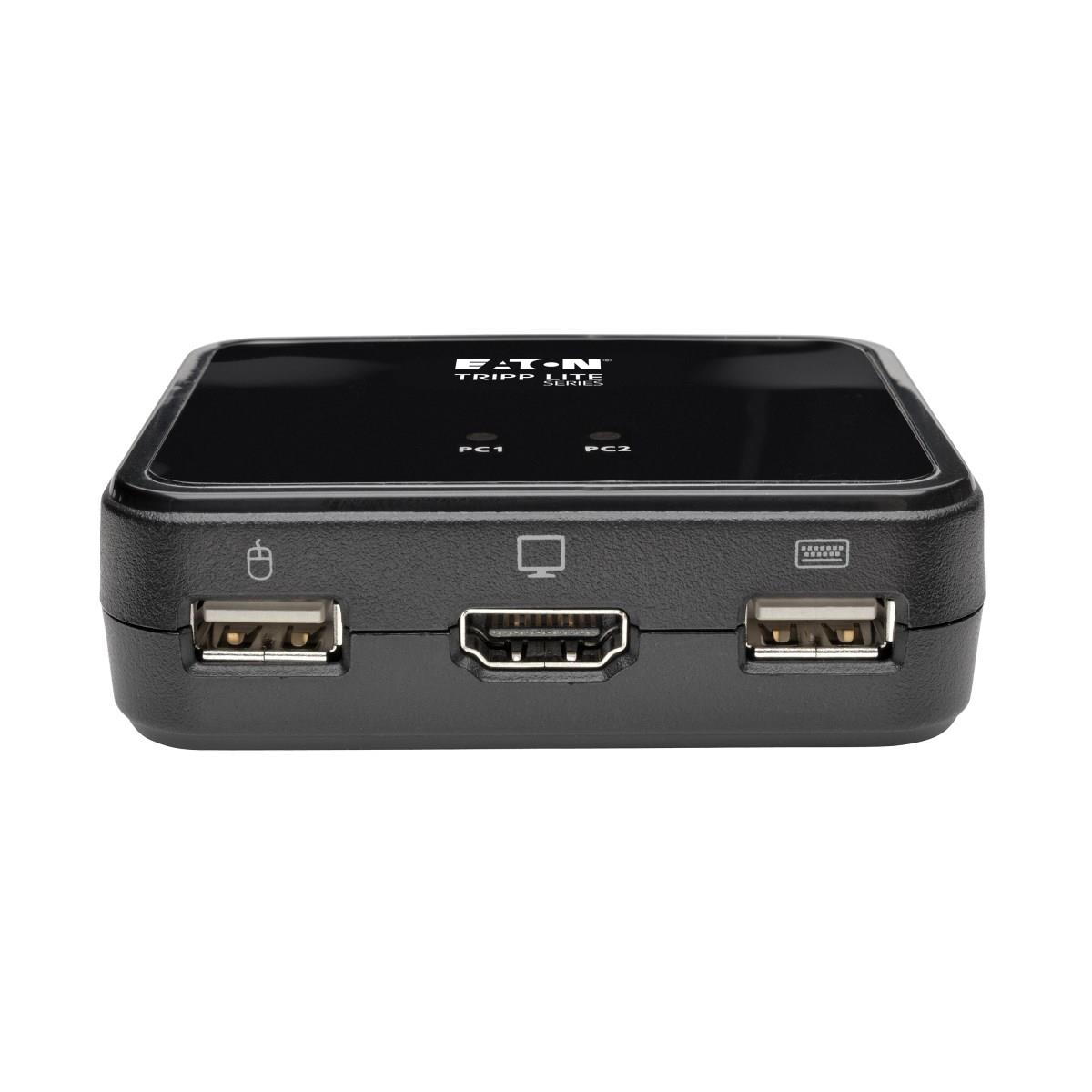

Access and Control 2 Computers with One Keyboard/Mouse/Monitor
Recommended for home, office, gaming and multimedia applications
Switch between computers using remote port selector, hotkeys or mouse wheel
Supports video resolutions up to 1920 x 1200 (1080p)

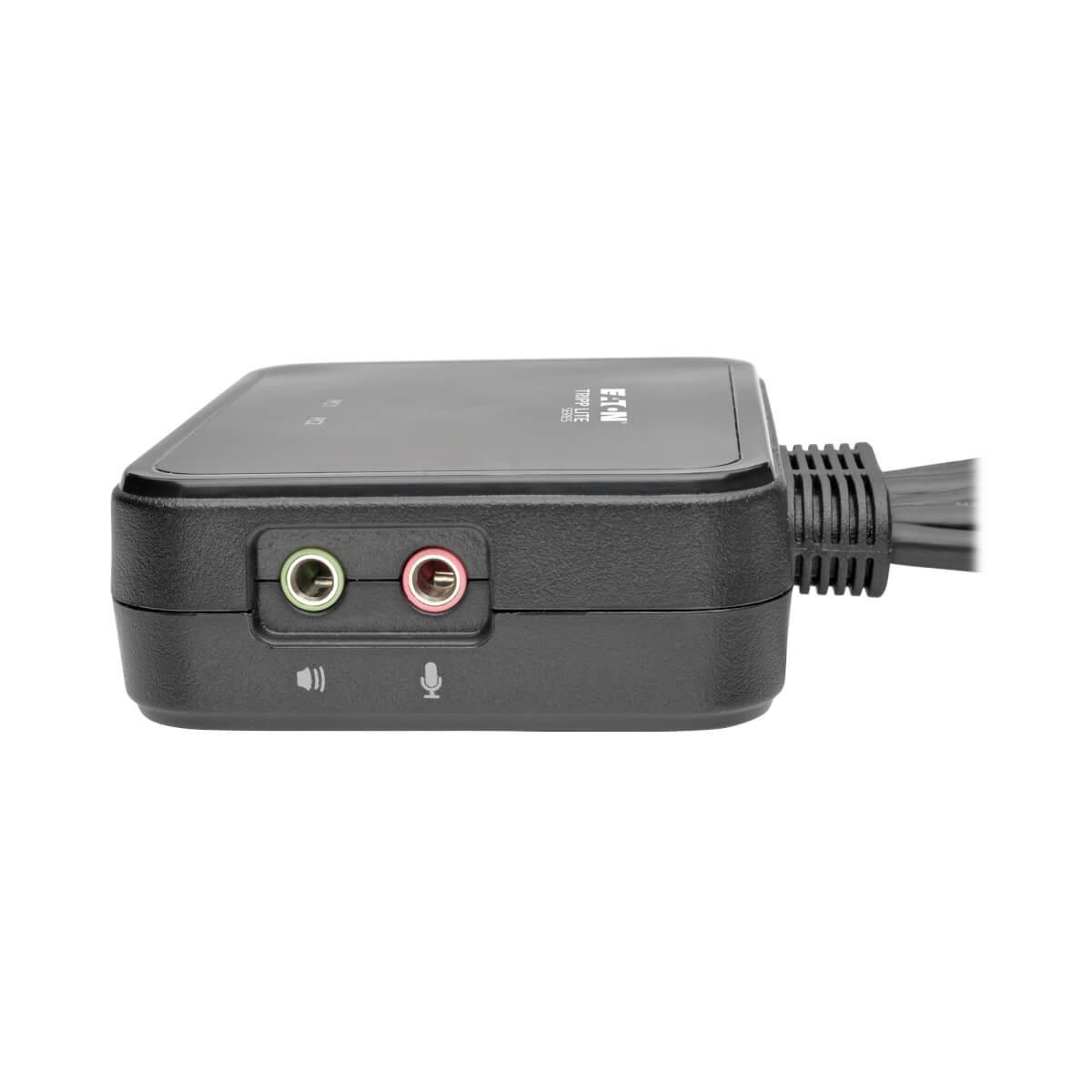

Supports 2.1-channel surround sound with full bass
Listen to audio files on one computer while accessing the other
Compliant with EDID and HDCP

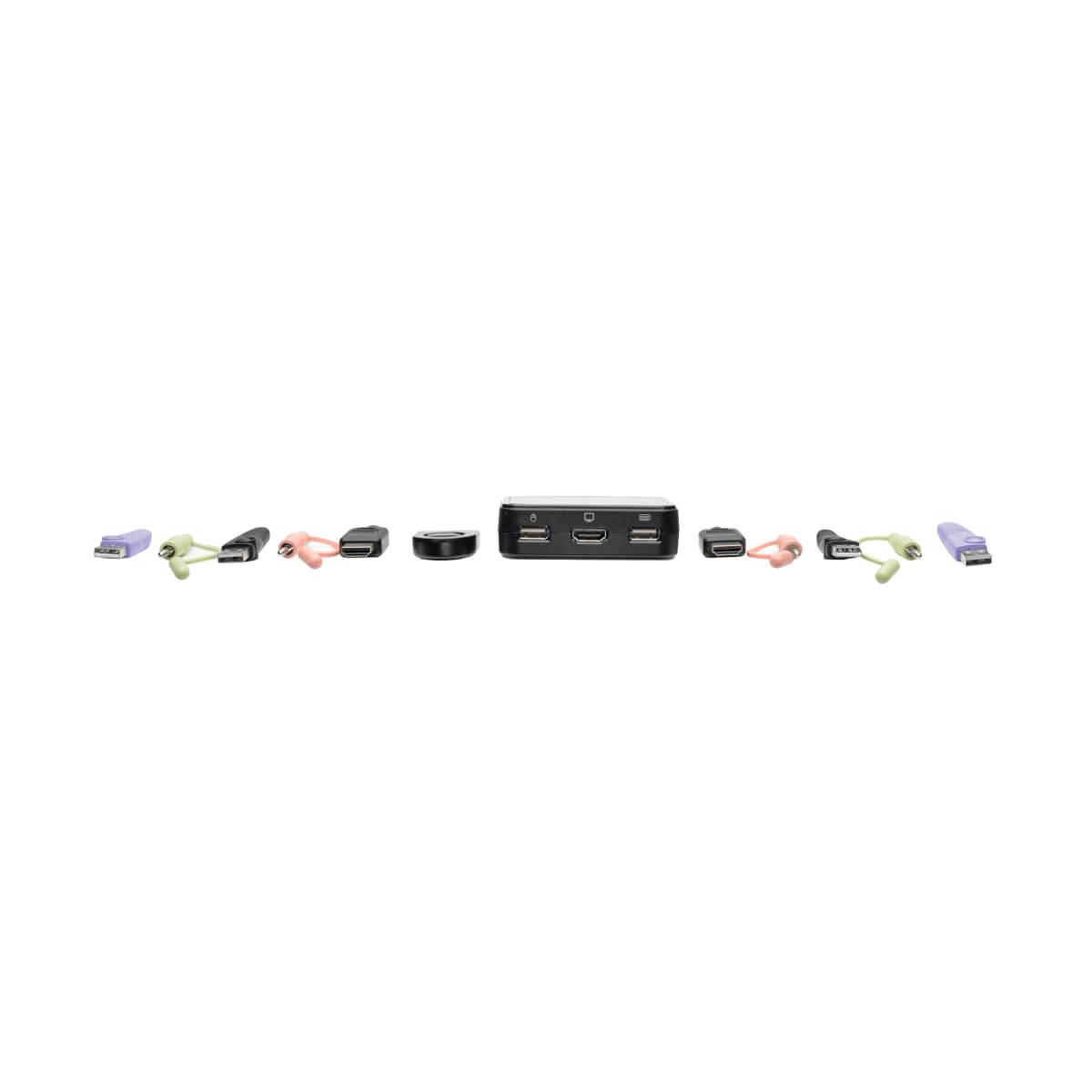

Built-in 4-ft. (1.22 m) HDMI, USB and audio cables
USB 2.0 Peripheral Sharing
Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives
Flexible Keyboard/Mouse Applications
Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
Works with multimedia keyboards and wireless keyboards and mice
Supports Mac keyboard emulation
Easy Plug-and-Play Setup and Use
Compatible with Windows, Mac and Linux
No external power supply, software or drivers to install
Switches automatically to other computer when one powers off
Upgradable firmware
Takes up no valuable desk space
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Performance | |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Number of users | 1 user(s) |
| Design | |
| Product colour | Black |
| Cable length | 1.2 m |
| Hot keys | Yes |
| Certification | CE, FCC,REACH |
| Display | |
| Built-in display | No |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width | 170.2 mm |
| Package depth | 238.8 mm |
| Package height | 61 mm |
| Package weight | 540 g |
| Packaging content | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 327.7 mm |
| Master (outer) case length | 487.7 mm |
| Master (outer) case height | 198.1 mm |
| Master (outer) case gross weight | 5.99 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332200393 |
| Country of origin | China |
