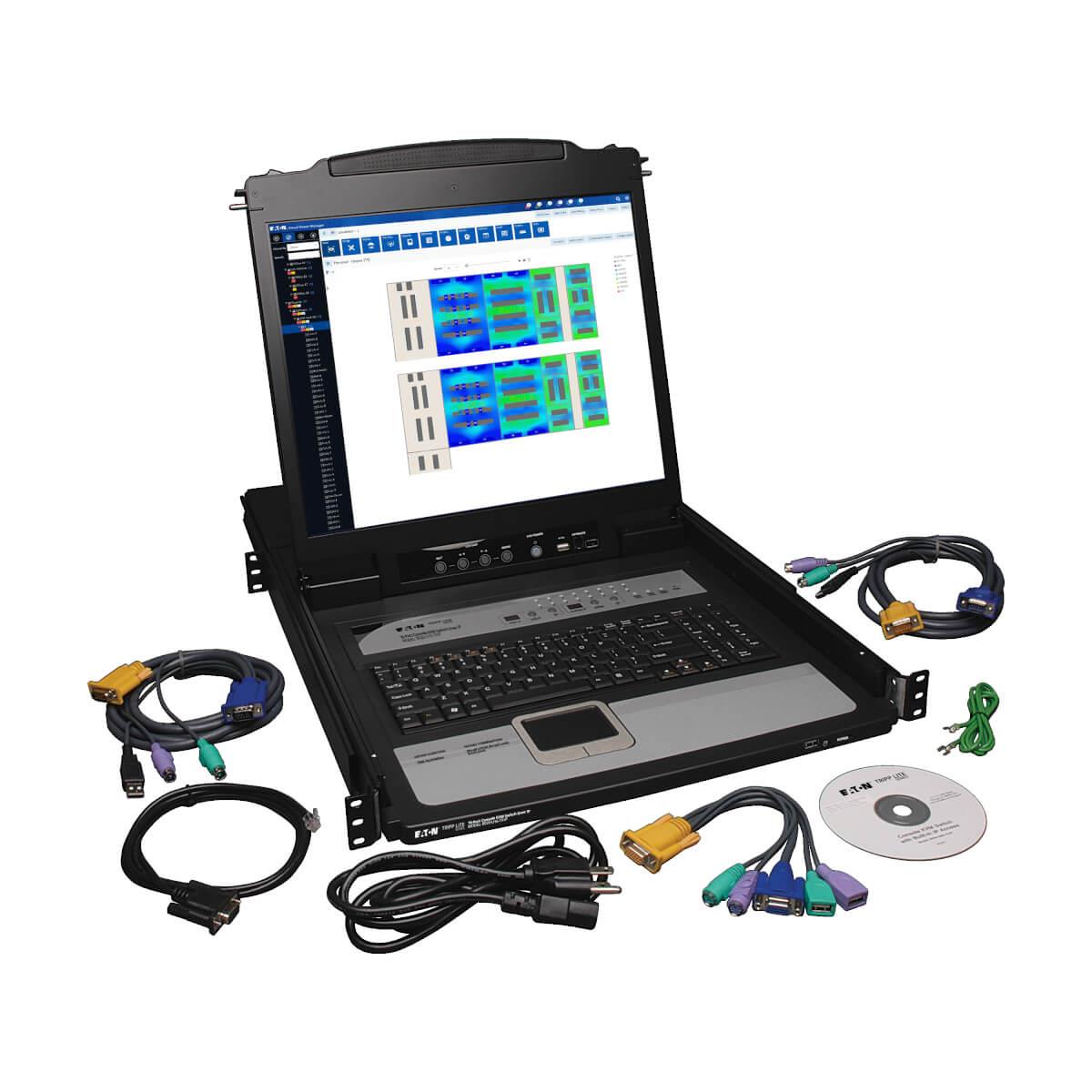

TRIPP LITE NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in LCD
ITCurry #: 57904737 | Article #: B020-U16-19-IP-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Complete Control from Anywhere
Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent
Remotely access computers via LAN, WAN or the Internet via Windows or Java
Panel Array Mode allows remote monitoring of multiple ports at the same time
Windows- and Java-based applications provide access without a browser
Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console
Built-In Security to Keep Your Data Safe
3 levels of security (Admin, User and Select) allow you to delegate proper access
Create up to 64 separate user accounts
Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
Supports RADIUS and LDAP/S remote authentication
LEDs indicate when a computer is connected, powered on and selected
Included firmware upgrade cable keeps the software up to date
Versatile to Meet Your Specific Needs
Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.
Compatible with all major operating systems
User-friendly web management interface can be displayed in English, Spanish, French, German or Italian
Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice
Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol
External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers
Keep Your Colleagues in the Loop
Windows-based log server records events and saves them to a searchable database
Users who are logged in simultaneously can communicate via message board and manage port access
Rack-Mounted Convenience

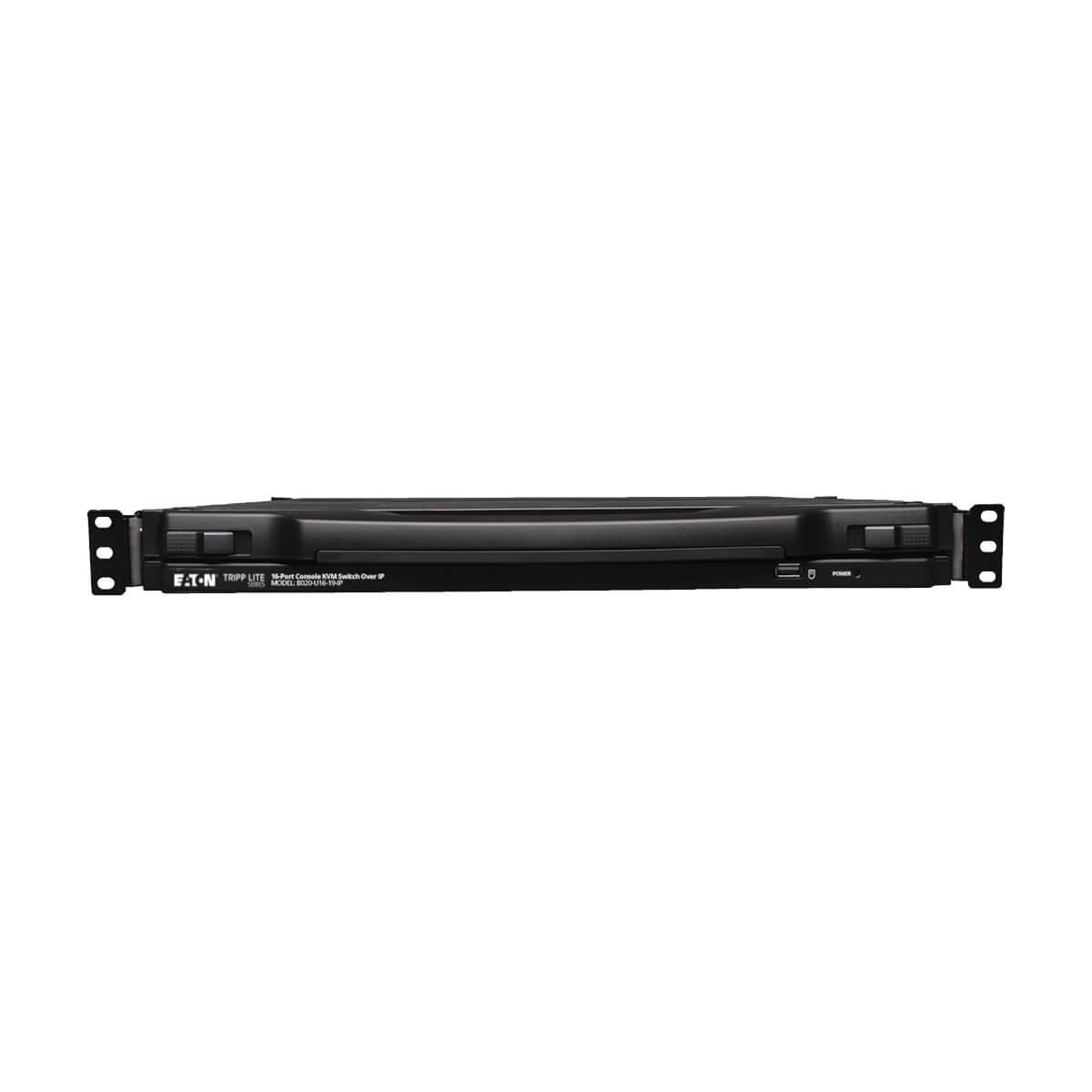

LCD folds down so the unit mounts into just 1U of rack space
Mounts in racks from 26 in. to 38 in. deep
Rugged steel housing and premium connectors built to last
Console locks into place when not in use to prevent sliding out of the rack
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| On Screen Display (OSD) | Yes |
| Technical details | |
| Product colour | Black |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 16 |
| Security algorithms | 3DES, 128-bit RC4, 128-bit SSL, 256-bit AES, RSA |
| LED indicators | Yes |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Country of origin | Taiwan |
| Ports & interfaces | |
| Interface | PS/2; USB; VGA |
| Keyboard | |
| Hot keys | Yes |
| Power | |
| AC adapter input voltage | 100 - 250 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Weight & dimensions | |
| Width | 480.1 mm |
| Height | 43.9 mm |
| Depth | 689.1 mm |
| Weight | 13.7 kg |
| Packaging data | |
| Package weight | 18.6 kg |
| Package width | 665 mm |
| Package depth | 830.1 mm |
| Package height | 130 mm |
| Packaging content | |
| Cables included | PS/2, Phone (RJ-11), USB |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Logistics data | |
| Master (outer) case width | 665 mm |
| Master (outer) case length | 830.1 mm |
| Master (outer) case height | 130 mm |
| Master (outer) case gross weight | 18.6 kg |
| Products per master (outer) case | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
