Product Information
Extend HDMI up to 330ft (100m) over CAT5e/CAT6 cable with Power over Cable to Receiver
This HDBaseT extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT
For greater versatility than a traditional HDMI extender or HDMI cabling alone, this HDBaseT extender offers HDMI + Power Over Cable in a single kit. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending to areas where power outlets may be limited.
Astonishing 4K picture quality from an impressive distance
With the A/V industry quickly adopting 4K as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables beginning signal degradation at 30 feet. With support for 4K you’ll be amazed at how HDBaseT maintains your Ultra HD picture quality, four times the resolution of high-definition 1080p, even at 130 feet away from your video source. Plus, because the extender supports High-Definition 1080p and lower resolutions at 330 feet away, you can comfortably use this extender to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBTPW is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
The StarTech.com Advantage
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Status |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Material | Aluminium |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, FCC, TAA |

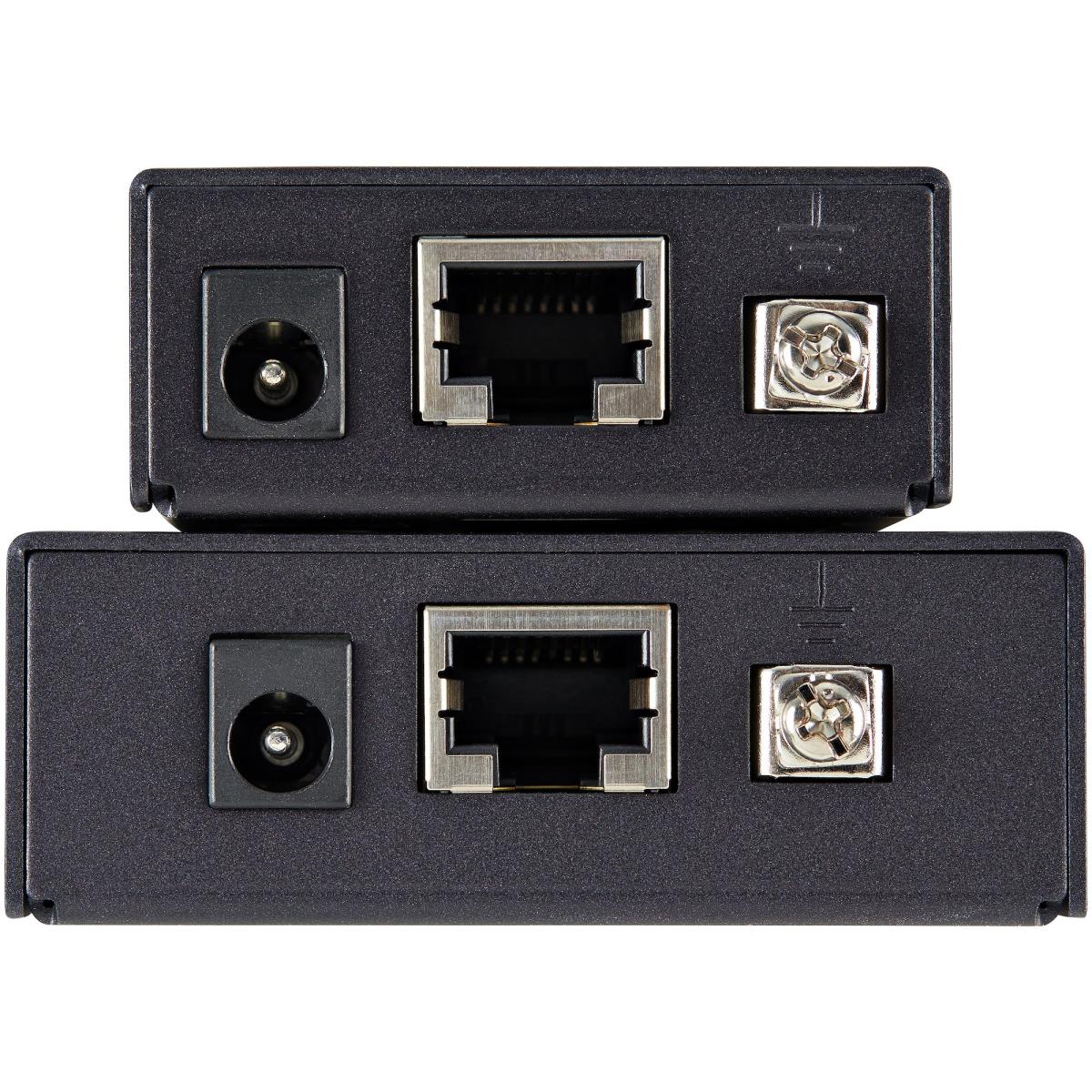

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 423 g |
| Packaging data | |
| Package width | 196 mm |
| Package depth | 295 mm |
| Package height | 72 mm |
| Package weight | 1.2 kg |

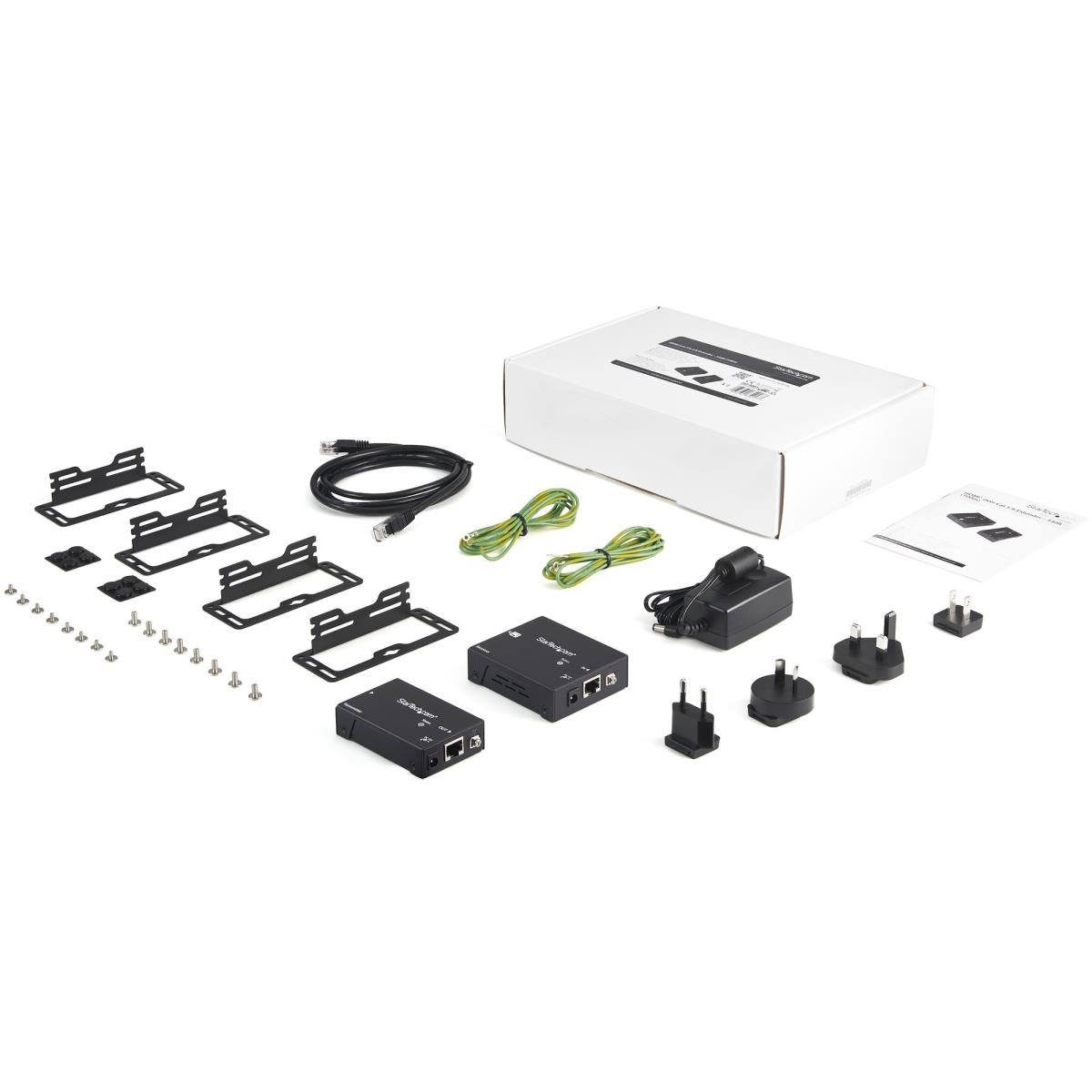

| Packaging content | |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Included power plug types | AU, EU, NA, UK |
| Manual | Yes |
| Mounting brackets included | Yes |
| Grounding wire | Yes |
| Technical details | |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 12 pc(s) |
