Video Extender Set (local+remote Units) Vga Over Cat5e Ethernet
ITCurry #: 90312425 | Article #: VE150A-AT-G
slide 2 of 3
Price:
100.06
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

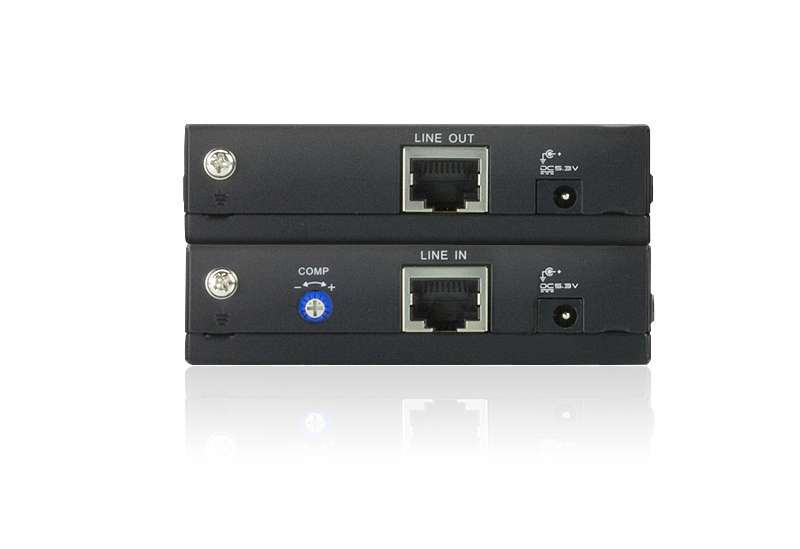

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.
1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5 |
| Maximum transfer distance | 150 m |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA) |
| Material | Metal |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Impedance | 75 O |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |

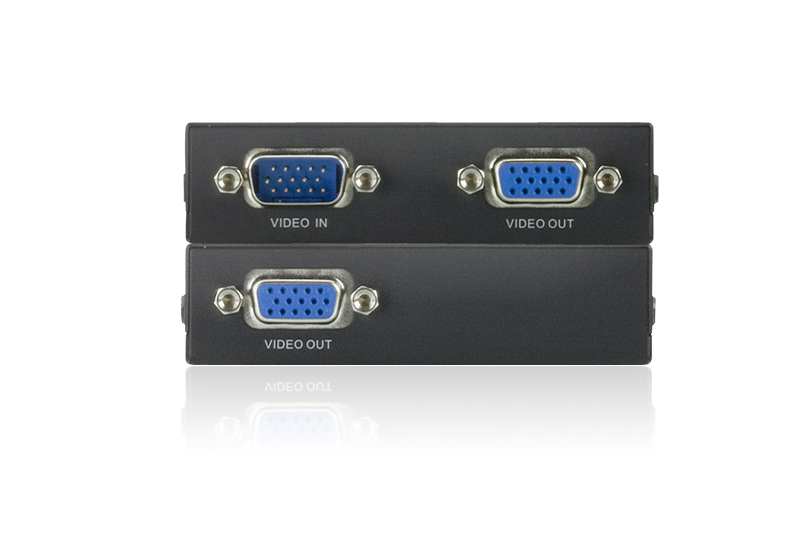

| Video in | 1 x HDB-15 |
| Video out | 1 x HDB-15 |
| Power | |
| Power consumption (transmitter) (max) | 1 W |
| Power consumption (receiver) (max) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Weight | 970 g |
| Receiver dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Receiver weight | 240 g |
| Transmitter dimensions (WxDxH) | 127.7 x 90.4 x 22.6 mm |
| Transmitter weight | 240 g |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.11 kg |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | VGA |
| Manual | Yes |
| Mounting kit | Yes |
| Logistics data | |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.92 kg |
| Master (outer) case net weight | 4.85 kg |
| Products per master (outer) case | 5 pc(s) |
