Extend an HDMI signal by up to 330ft (100m) over CAT5/CAT6 cable, with 10/100 network, infrared, serial control, and Power over Cable

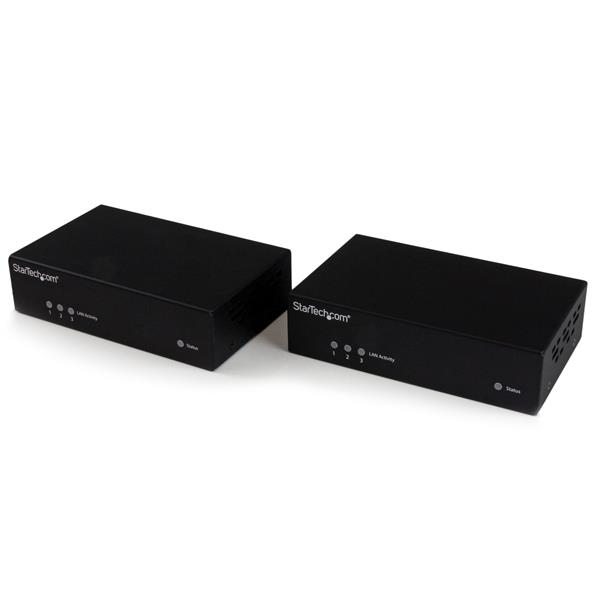

The StarTech.com HDBaseT Extender Kit, extends HDMI up to 330 feet (100 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying 7.1 digital audio. For added versatility, both the transmitter and receiver can be powered from one power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals.
What is HDBaseT?
HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable.
Extend More than Video with HDBaseT

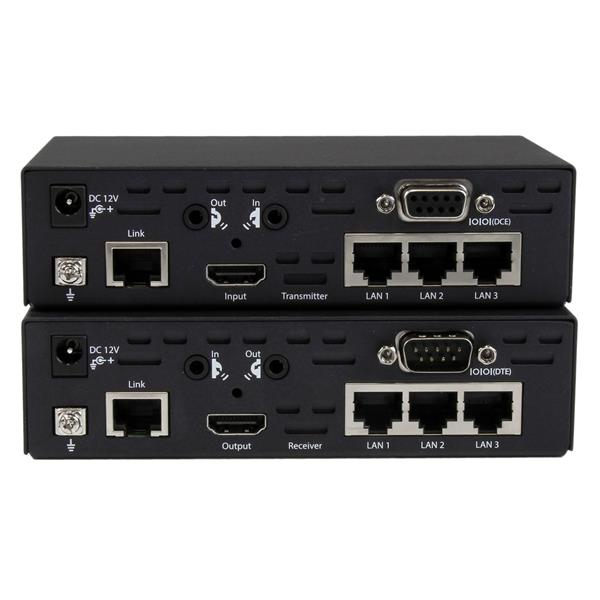

The extender offers HDBaseT technology with HDMI, IR, RS232, Ethernet, and power in a single extender kit, for complete end-to-end control. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The IR extension enables you to operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from either end of your extension. RS232 control let you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display for interactive digital signage presentations. While the built-in 6-Port Ethernet hub lets you connect 5 IP devices to your network (3 remote, 2 local).
Astonishing Picture Quality at 295 Feet Away
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You’ll be amazed at how this HDBase-T extender kit can deliver your 4K video signal at up to 295 ft. away from your video source.
The extender kit is also backward compatible with 1080p at 330 feet (100 m), so you can comfortably use it to make any video source look great.
Hassle-free, Professional Installation with a Single Cable
This extender has been specially crafted for a smooth, tidy setup. HDBaseT technology allows for single cable installation, for seamless integration using existing CAT5e or CAT6 infrastructure, avoiding the hassle of running multiple cables, while reducing potential failure points. Plus, the added benefit of power over cable means you’ll only need one power source to power both your extender and receiver, great for extending to areas where power outlets may be limited. Mounting hardware is also included for both the extender and receiver for discrete, professional mounting.
The ST121HDBT5 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Save cost by extending HDMI, Ethernet, RS-232, IR, and Power over a single Cat5 cable, using HDBaseT technology
- Astonishing picture quality with support for UHD 4K resolutions at up to 295 ft. (90 m)
- Supports HD 1080p resolutions at up to 330 ft. (100 m)
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |

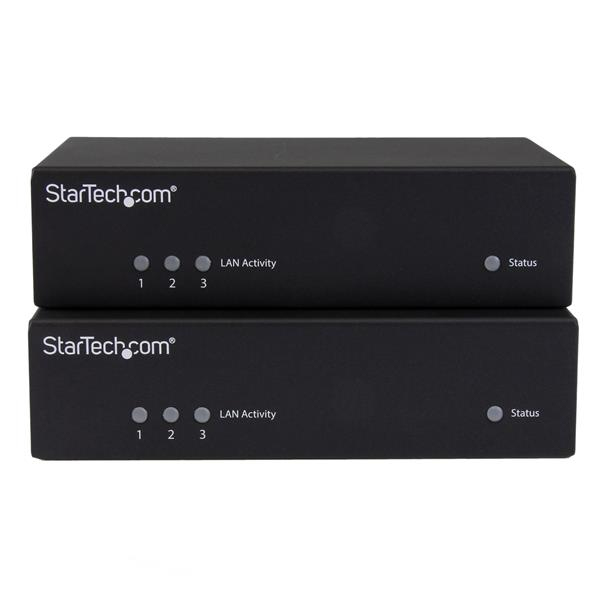

| LED indicators | LAN, Status |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160, 4096 x 2160 |
| Remote control type | IR |
| Material | Aluminium |
| Rack mounting | Yes |
| Daisy chain | No |
| Rubber feet | Yes |
| Product colour | Black |
| Certification | FCC, CE, TAA, HDBT, REACH |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Ethernet LAN | Yes |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 89 x 139 x 37 mm |
| Receiver weight | 859 g |
| Transmitter dimensions (WxDxH) | 89 x 139 x 37 mm |
| Transmitter weight | 859 g |
| Packaging data | |
| Package width | 179 mm |
| Package depth | 313 mm |
| Package height | 74 mm |
| Package weight | 1.64 kg |

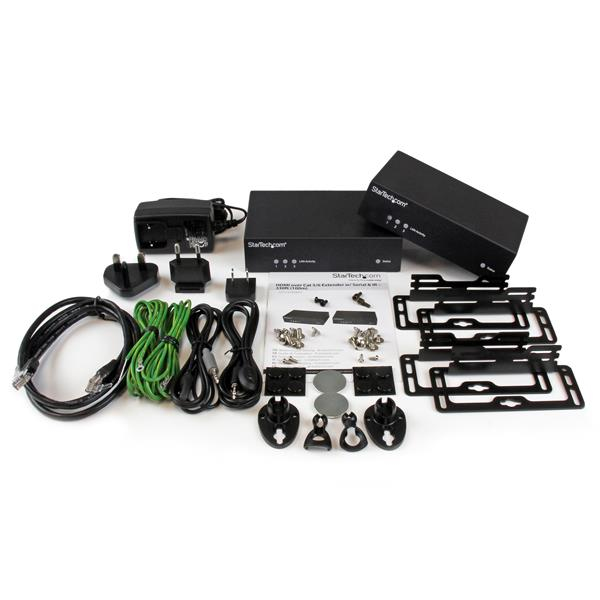

| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting brackets included | Yes |
| Grounding wire | Yes |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | RoHS |
