Product Information
The NC40U series comes with powerful and efficient 12th generation Intel Core processors, codenamed "Alder Lake-U". Despite the nano format with only 850 ml volume, it offers enormous connection variety and expansion options. Thus, up to three UHD displays (4K/60Hz) and up to seven USB 3.2 devices can be connected, and two NVMe/SSD cards in M.2-2280 format as well as one 2.5" hard drive (up to 15 mm thickness) can be installed. The NC40U series is ideal for Digital Signage, POS, control, office or even multimedia.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i3 |
| Processor generation | 12th gen Intel© CoreT i3 |
| Processor model | i3-1215U |
| Processor cores | 6 |
| Processor threads | 8 |
| Performance cores | 2 |
| Efficient cores | 4 |
| Built-in processor | Yes |
| Processor cache | 10 MB |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Card reader integrated | No |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel© UHD Graphics |
| Maximum resolution | 7680 x 4320 pixels |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel© I219 |

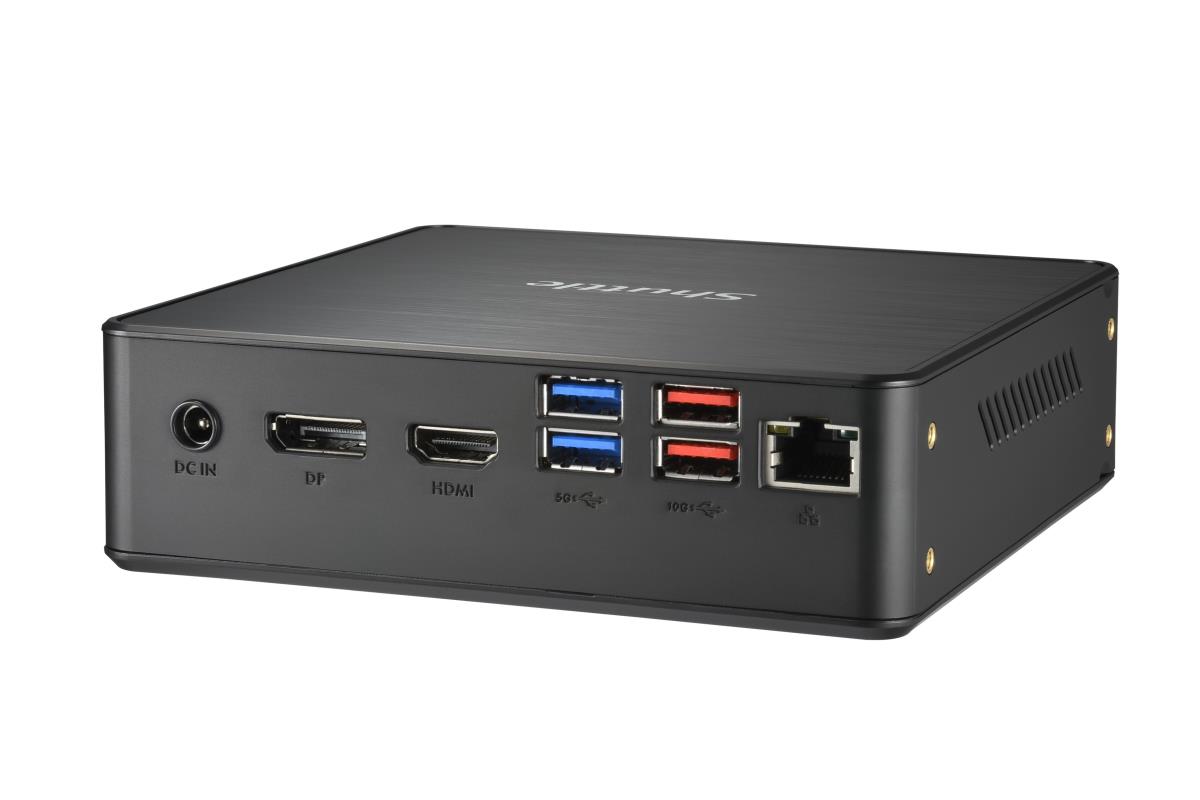

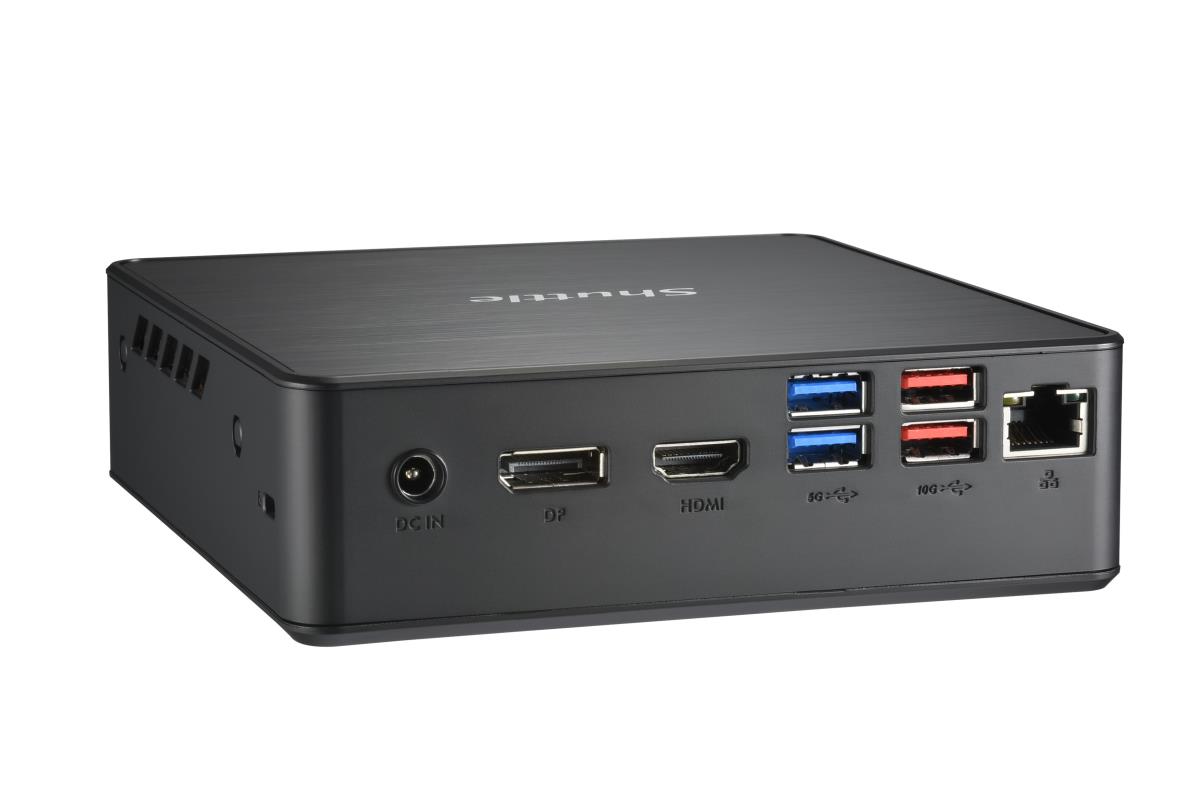

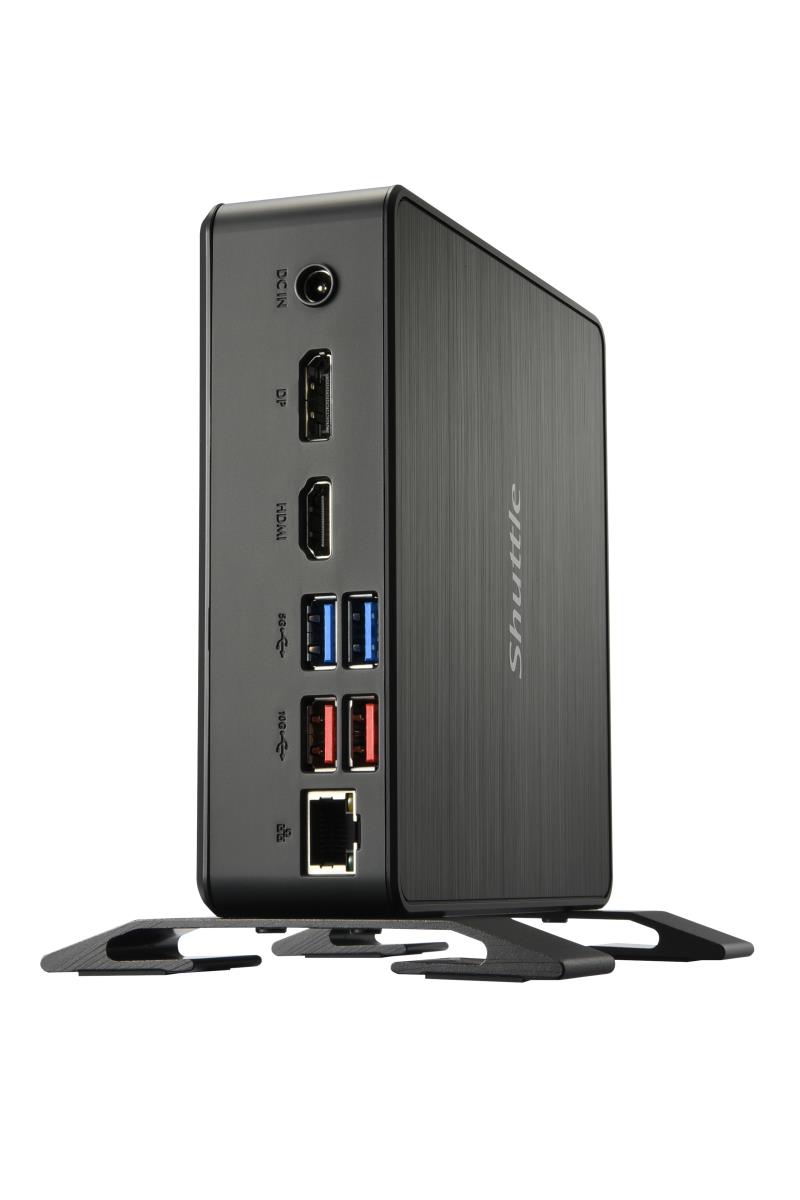

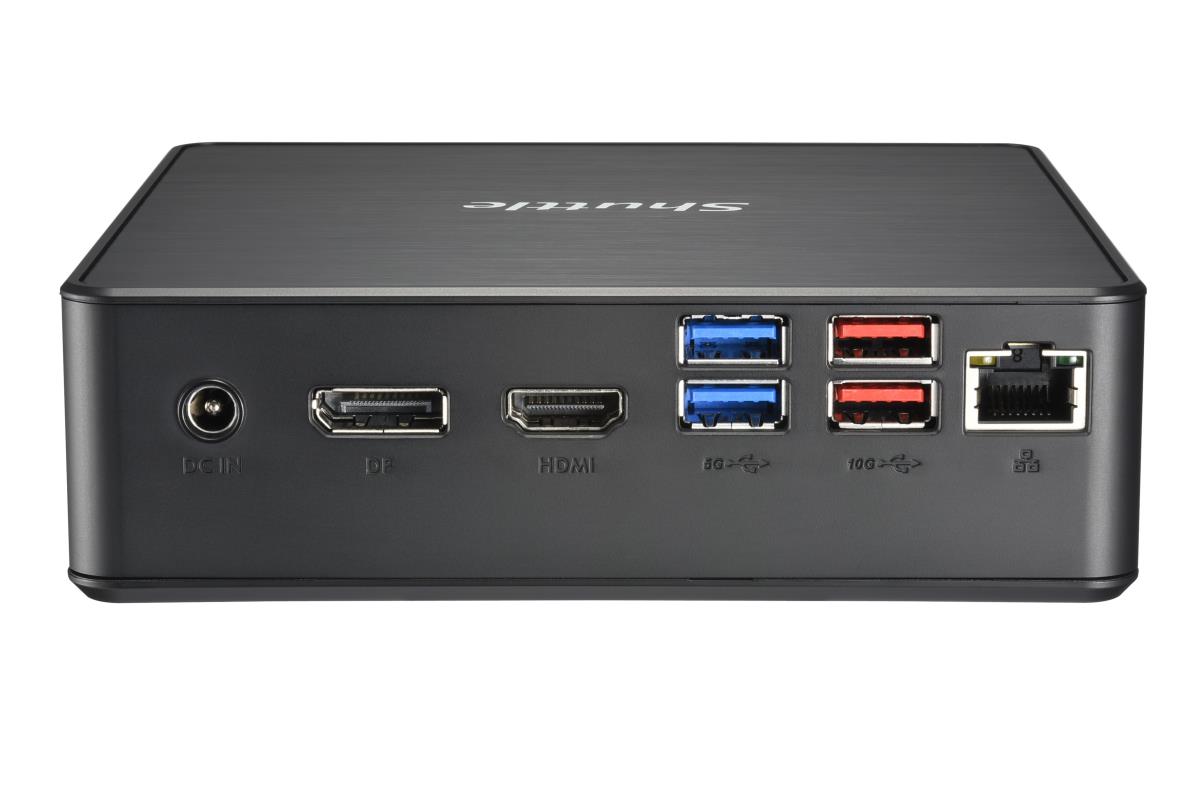

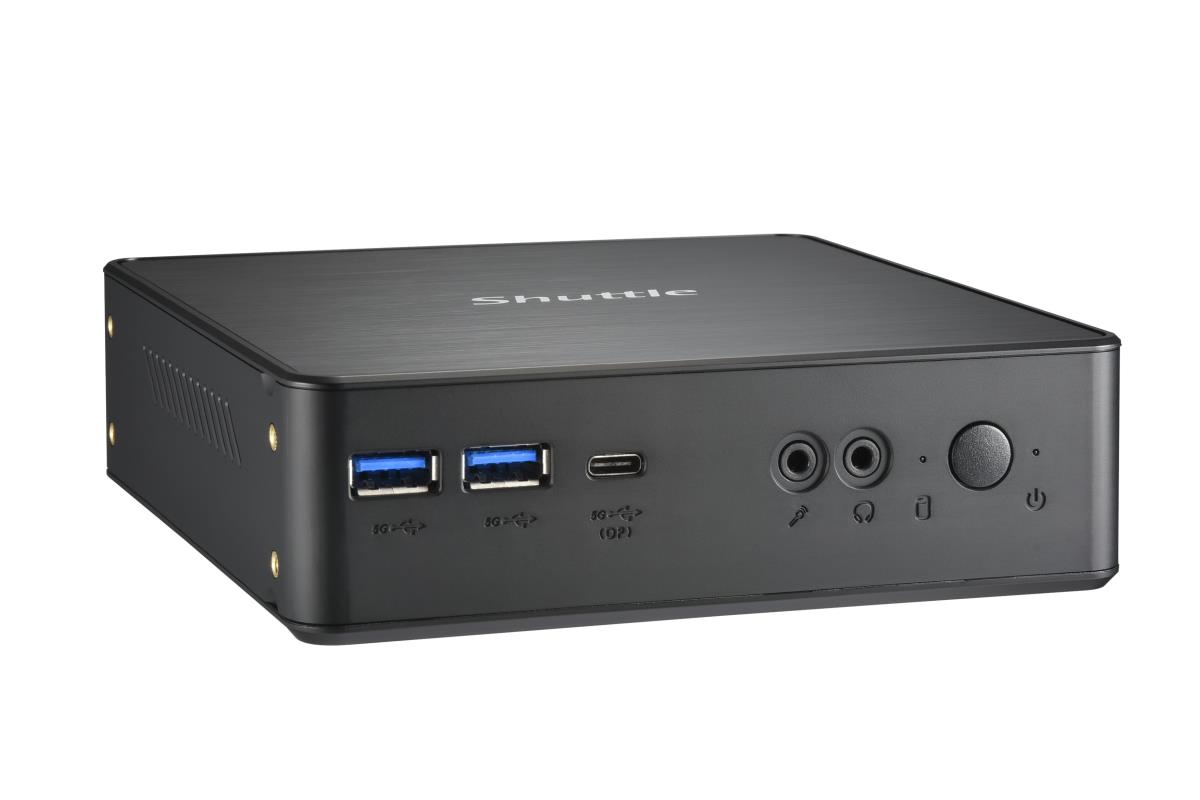

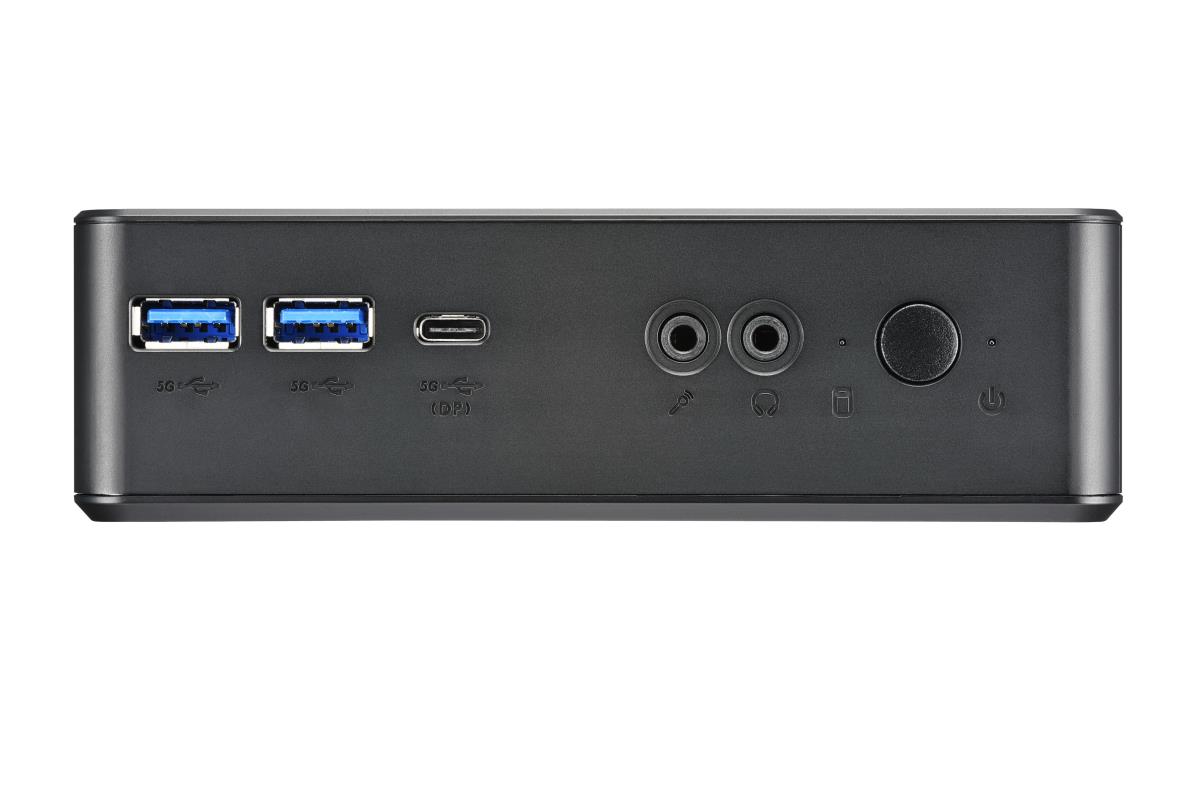

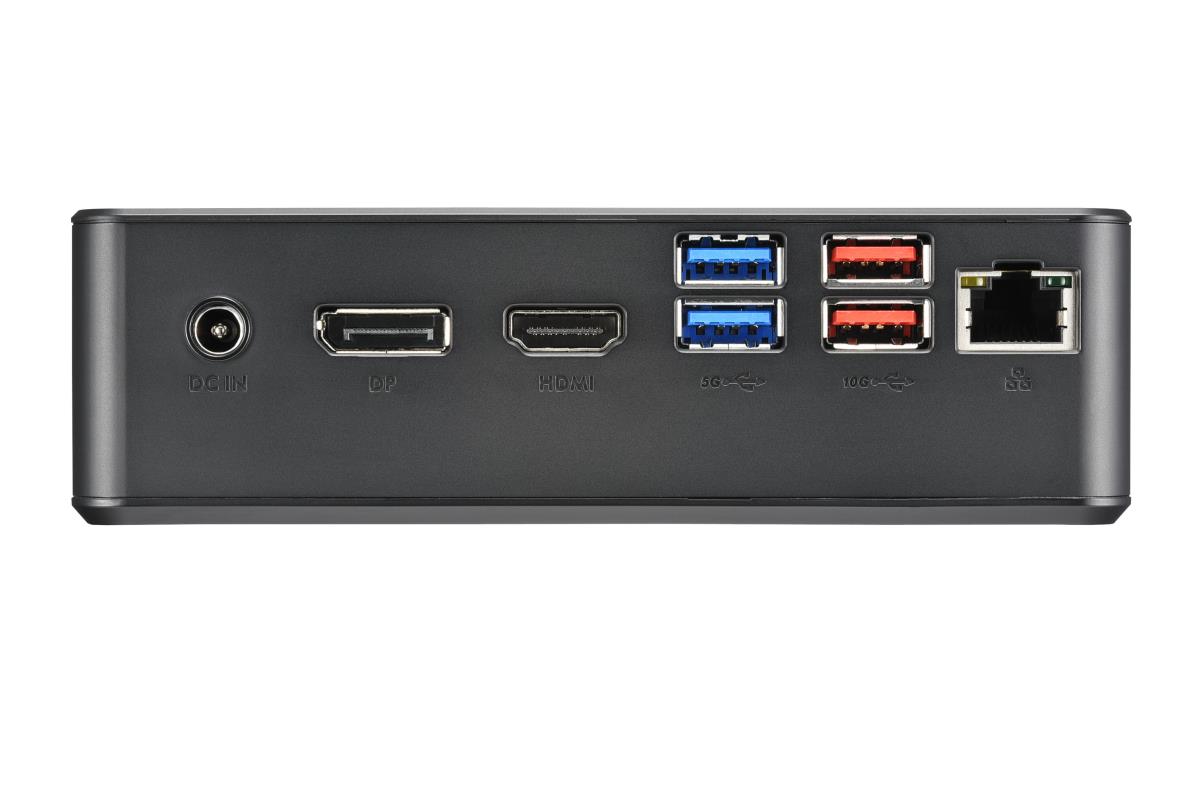

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0, 4.0 |
| Number of M.2 (M) slots | 2 |
| Design | |
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Safety | CB IEC60950/62368, cTUVus (UL 62368) |
| Performance | |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| BIOS type | AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Technical details | |
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11 |
| Linux operating systems supported | Yes |
| Operating system installed | No |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 142 mm |
| Height | 42 mm |
| Weight | 400 g |
| Package weight | 1.2 kg |
| Packaging content | |
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Warranty | |
| Base Warranty | Non Non |
