Product Information

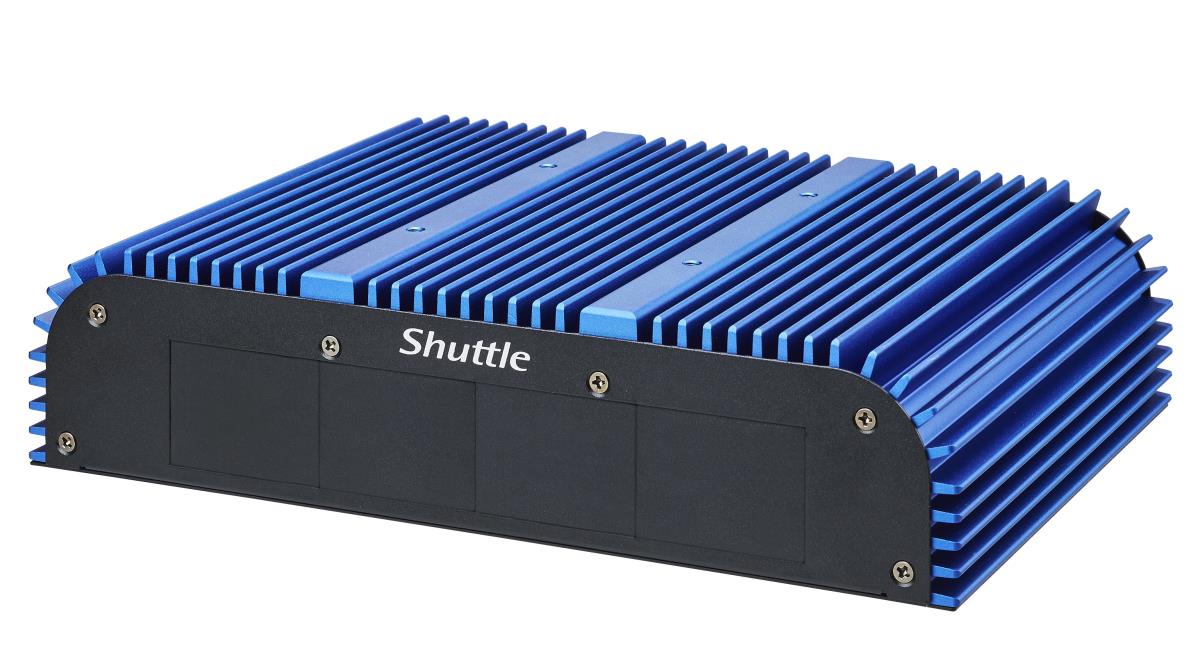

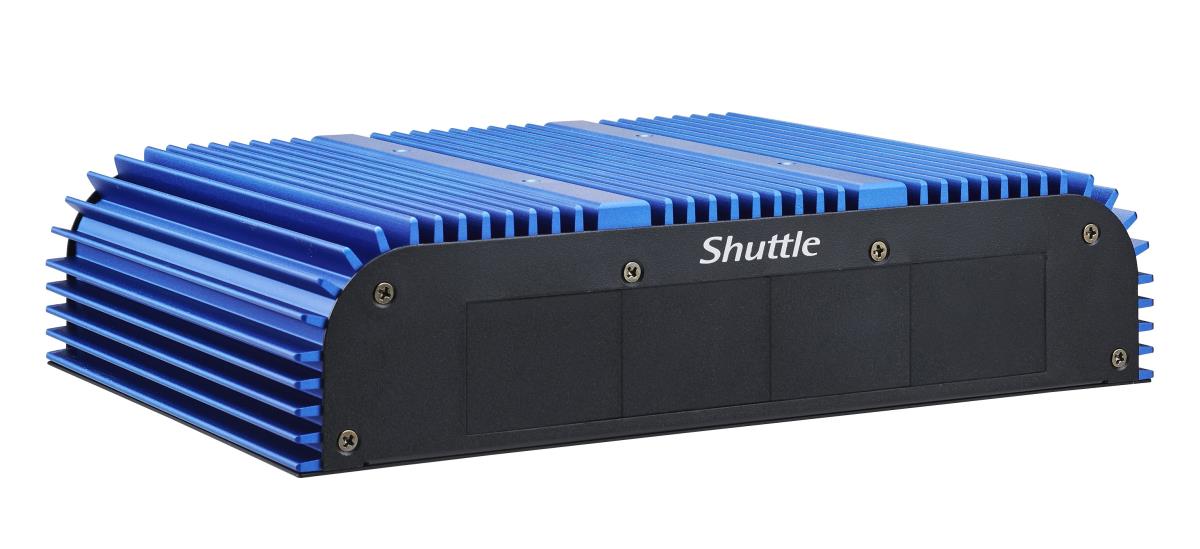

Fanless Box-PC with Intel Core processor in a robust chassis

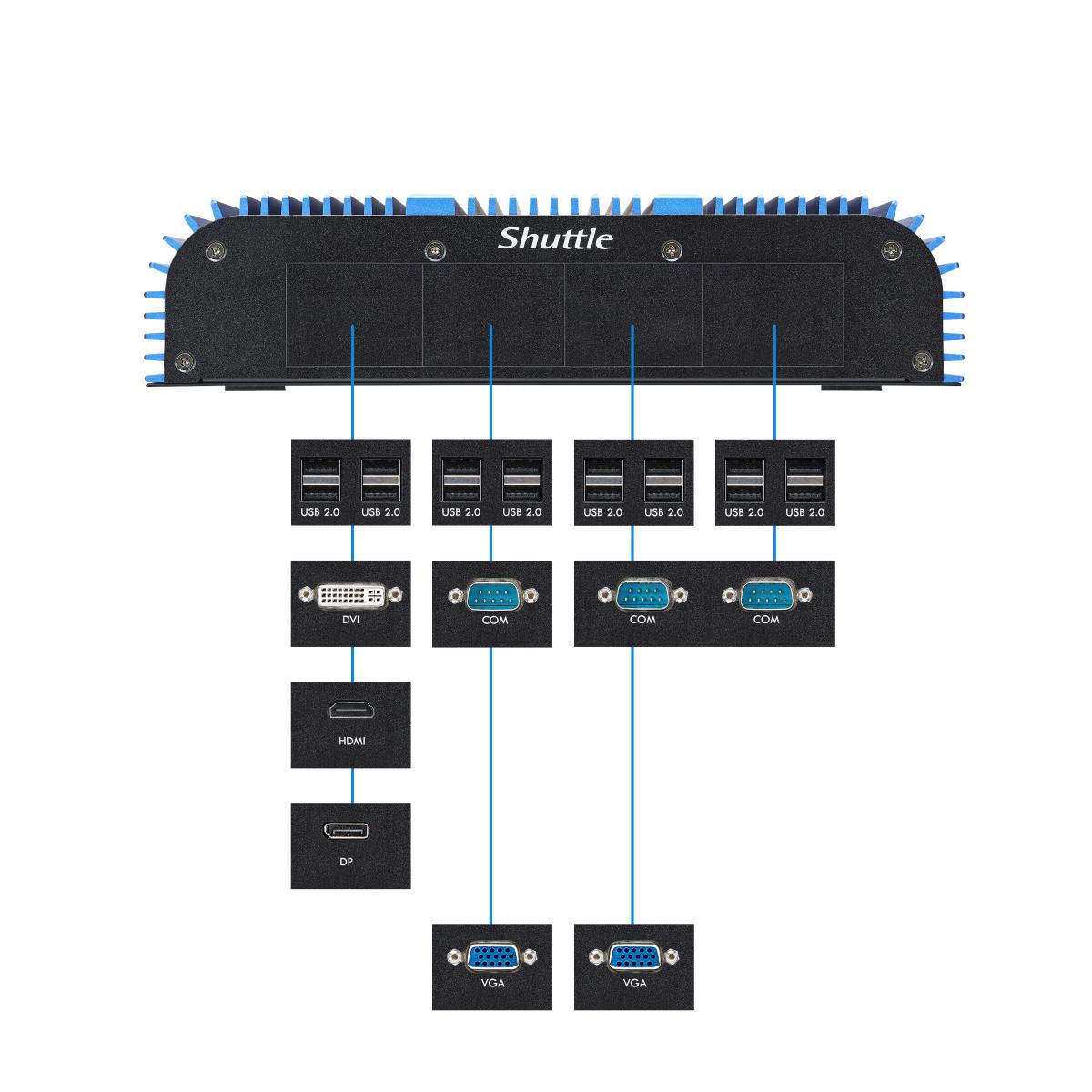

Shuttle's BPCAL02 fanless Box-PC Series is fueled by Intels 12th Generation (Alder Lake) Core processors in a ruggedized box design for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customized requirements in industrial environments.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i5 |
| Processor generation | 12th gen Intel© CoreT i5 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Built-in processor | Yes |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 15 W |
| ECC supported by processor | No |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage | 1.1 V |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | PCI Express, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 1 |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type | 2.6L sized PC |
| Product colour | Black, Blue |
| Cooling type | Passive |
| Housing material | Aluminium, Steel |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Product type | Mini PC barebone |
| Performance | |
| BIOS type | UEFI AMI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC888S |
| Technical details | |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Sustainability | |
| Sustainability certificates | Certified Enviro Cranberries (CEC), ErP |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 169 mm |
| Height | 57 mm |
| Weight | 2.85 kg |
| Packaging content | |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
