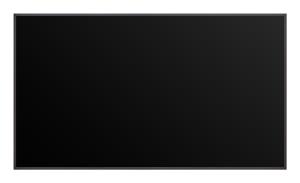

Digital Signage - 49xe4f-b - 49in - 1920 X 1080 (full Hd)
ITCurry #: 31828960 | Article #: 49XE4F-M.AEU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Slim & Robust Design with Outstanding Visibility
With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs in external environments that require complex installation conditions. And upgraded brightness captures the attention of customers even under strong and direct sunlight.
Slim & Light Design
XE4F series is composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
Easy integration for partner’s customized design
The XE4F series is lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series is also mountable and optimized for customers, based on the industry purpose and use.
Bright & Brilliant
The XE4F series possesses powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Wide Viewing Angle
IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Long Lasting Brightness
By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
Visible with Polarized Sunglasses
QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
Secured Protection with IP56 Design
The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
Protective Glass (IK10 Certified)
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
Support HDBaseT ™
The XE4F Series supports HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.
Web Monitoring
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
| Display | |
| LED backlighting type | Direct-LED |
| Display diagonal | 124.5 cm (49") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 4000 cd/mý |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1300:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Panel life | 50000 h |
| Haze rate | 3% |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor/outdoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Bezel width (bottom) | 3.84 cm |
| Bezel width (side) | 2.6 cm |
| Bezel width (top) | 3.84 cm |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| International Protection (IP) code | IP56 |
| Power | |
| Power consumption (typical) | 300 W |
| Energy efficiency class (SDR) | A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Display width | 1153 mm |
| Display depth | 88 mm |
| Display height | 656.2 mm |
| Display weight | 32 kg |
| Packaging data | |
| Package width | 1286 mm |
| Package depth | 207 mm |
| Package height | 797 mm |
| Package weight | 37 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 øC |
| Operating relative humidity (H-H) | 5 - 100% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Warranty | |
| Base Warranty | Non Non |
