Digital Signage - Po-5502 - 55in - 1920 X 1080 (full Hd)
ITCurry #: 92942536 | Article #: PO-5502-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

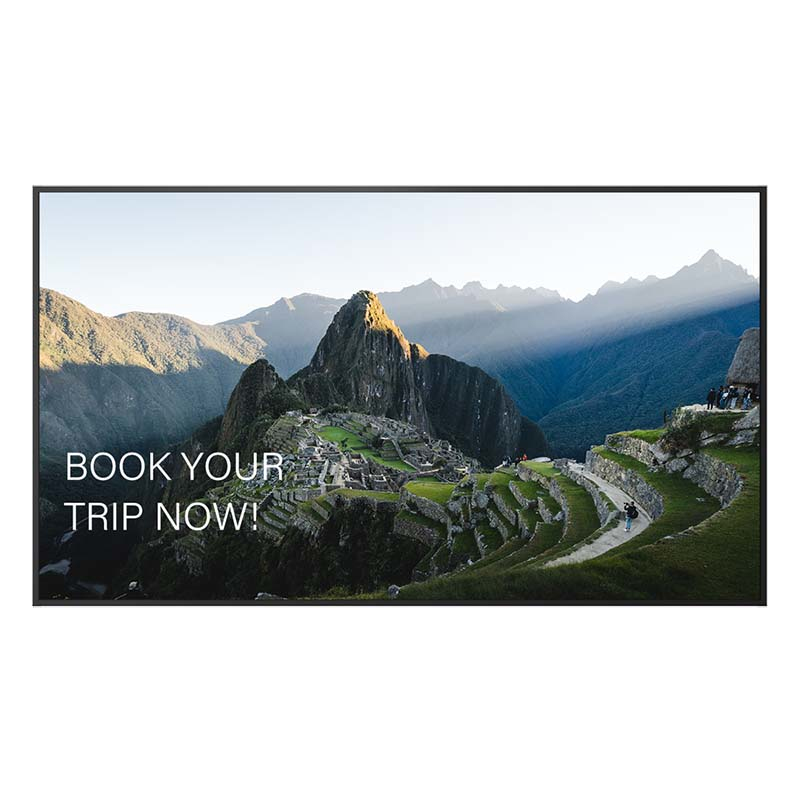

The PO-5502 55-inch 1080p open frame displays are built to stand out in different outdoor environments with 2,500 nits of ultra-high brightness. The LED-backlit open frame panels include brightness levels that maximise visibility, along with an energy-saving EcoSmart Sensor and Anti-Burn-in technology that make the ultra-high brightness digital signage display ideal for 24/7 outdoor use. An open-frame option boosts adaptability, allowing for easier integration into customised designs. In contrast, a dual-fan cooling design coupled with a HeatControl sensor keeps temperatures in control, enhancing the PO-5502 display’s aptitude for outdoor use.
2500 NITS ULTRA-HIGH BRIGHTNESS
With 2500 nits ultra-high brightness, the PO-5502 open frame displays provide optimal readability, whether in direct or indirect sunlight conditions, while retaining the superior image quality AG Neovo large format displays are known for.
24/7 OPERATION UNDER SUNLIGHT
The PO-5502 is made of a Public Information Display (PID) panel for 24/7 operation, in which the liquid crystal cell can resist heat up to 110°C / 230°F, compared to the typical TV panel, around 65-75°C (149-167°F). This unique high-temperature liquid crystal technology prevents the black spots that can develop on competing displays when subject to high heat loads from direct sunlight.
LOW REFLECTION FOR SUPERIOR READABILITY
The PO-5502 displays adopt the Quarter Wave Plate (QWP) polariser with a low reflection solution (Reflectance = 1.45%) to enhance the visibility and colour vibrancy of the display for outdoor applications.
AN EASY-TO-MOVE SENSOR BOARD FOR IR & LIGHT
The magnetic IR and ambient light sensor board can be easy-to-move and magnetised to the rear of the displays or the iron cases to suit different outdoor environments.
BUILT-IN HEATCONTROL SENSORS
The PO-5502 open frame display’s built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises in outdoor environments.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
BUILT-IN ECOSMART SENSOR
An embedded energy-saving EcoSmart Sensor, exclusively designed by AG Neovo, can automatically adjust display backlight brightness based on the ambient luminance, particularly in outdoor settings, which can significantly save energy.
LANDSCAPE/PORTRAIT CAPABILITY
The PO-5502 displays are signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfil the need in different scenarios.
| Display | |
| Panel type | VA |
| LED backlight | Yes |
| Display diagonal | 139.7 cm (55") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 2500 cd/mý |
| HD type | Full HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.63 x 0.63 mm |
| Colour saturation | 72% |
| Horizontal scan range | 30 - 74 kHz |
| Vertical scan range | 56 - 76 Hz |
| Surface hardness | 3H |
| RGB colour space | NTSC |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| Ethernet LAN | No |
| Wi-Fi | No |
| Microphone in | Yes |
| Number of speaker outputs | 1 |
| RS-232C | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor/outdoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Performance | |
| Purpose | Universal |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| Power | |
| Power consumption (typical) | 236 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Computer system | No |
| Weight & dimensions | |
| Display width | 1235.6 mm |
| Display depth | 108 mm |
| Display height | 706.4 mm |
| Display weight | 23.5 kg |
| Packaging data | |
| Package width | 1370 mm |
| Package depth | 870 mm |
| Package height | 282 mm |
| Package weight | 30.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 80% |
| Technical details | |
| Compliance certificates | Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Warranty | |
| Base Warranty | Non Non |
