Oled Signage - 55ew5tk - 55in - 1920 X 1080 (full Hd) - Transparent
ITCurry #: 31829853 | Article #: 55EW5TK-A.AEU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

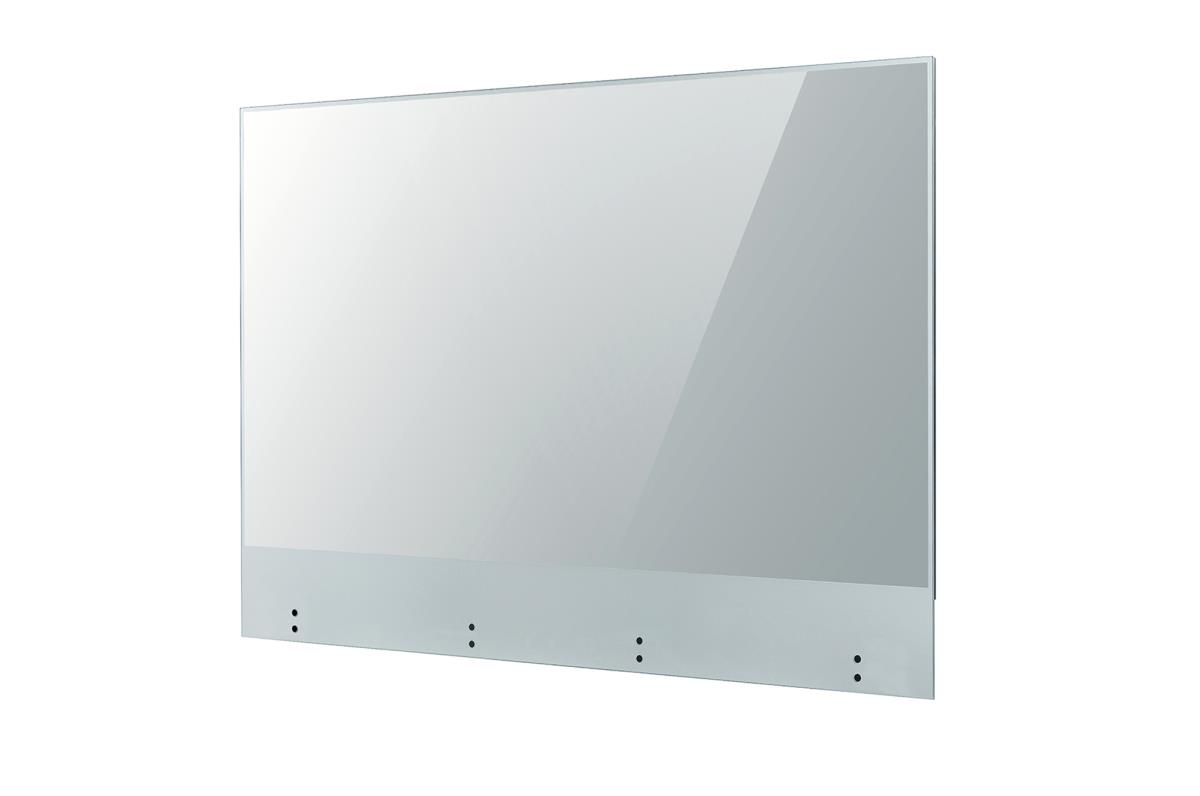

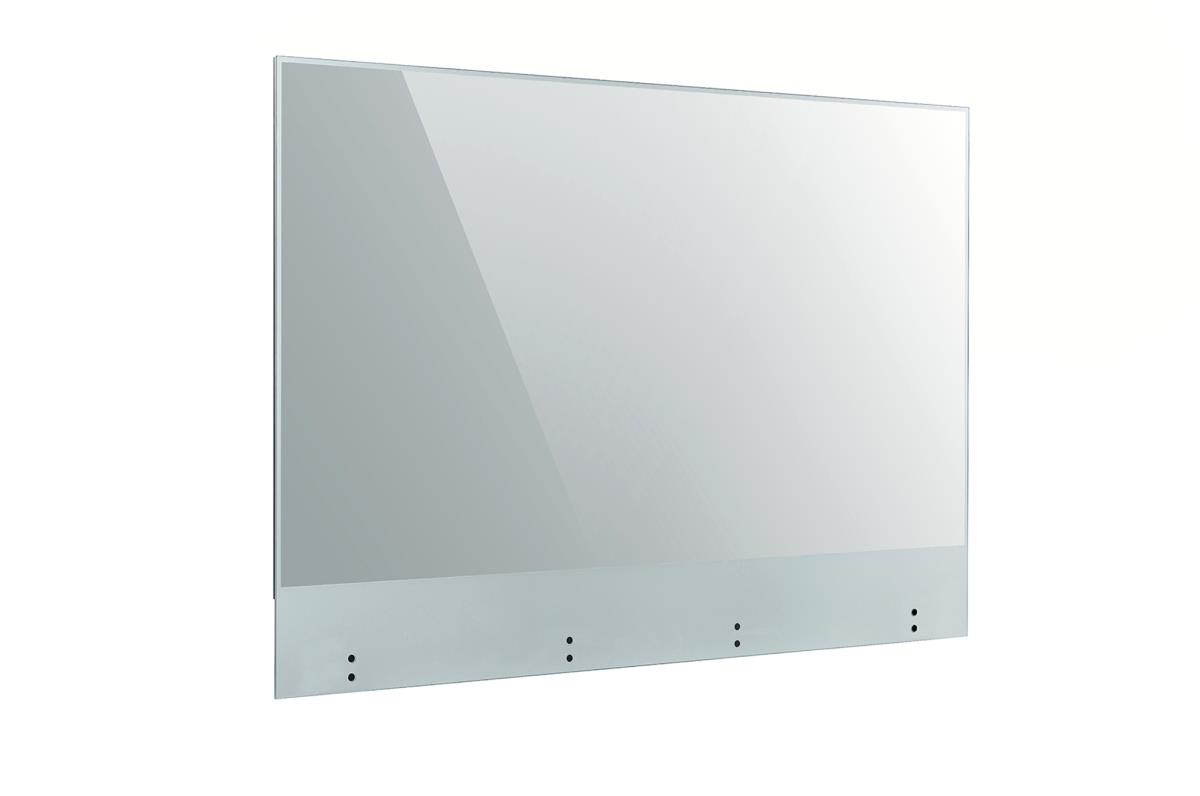

A New Level of See-through View
LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.
Not only that, it can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.
Accurate and Vivid Colors
Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.
Intuitive P-Cap Touch
By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips with no lag.
High Transparency
LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film much higher than conventional LCD transparent displays (10%*). While clearly showing objects behind the screen, it overlays the relevant information right before them.
Protective Tempered Glass
Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’
injuries.
Expandable Design
LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.
| Display | |
| Display diagonal | 139.7 cm (55") |
| Display technology | OLED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 150 cd/mý |
| HD type | Full HD |
| Touchscreen | Yes |
| Response time | 8 ms |
| Contrast ratio (typical) | 150000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Colour depth | 10 bit |
| Colour gamut | 120% |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| Design | |
| Placement supported | Indoor |
| Product colour | Silver |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 20 |
| HDCP version | 1.4 |
| Power | |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 85 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Windows operating systems supported | Windows 10, Windows 8.1 |
| Weight & dimensions | |
| Display width | 1225.5 mm |
| Display depth | 74 mm |
| Display height | 832.9 mm |
| Display weight | 12.9 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Warranty | |
| Base Warranty | Non Non |
