ProLiant DL360 Gen11 - 1p 4510 - 2x32GB-R - 4LFF 2x960GB SSD NC BCM5719 - 2x800W PS - EU
ITCurry #: 1171APL1 | Article #: P81782-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

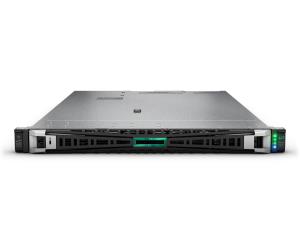

Are you looking for a scalable, compute-dense solution for hybrid cloud or other data workloads in a virtualized and containerized environment? The HPE ProLiant DL360 Gen11 server is a rack-optimized, 1U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth at 2P compute capability. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drives as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect solution for Electronic Design Automation (EDA), CAD, and VDI. The HPE ProLiant 360 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by 5th Gen Intel Xeon Scalable Processors that supports up to 64 cores & 385W, and 16 DIMMs for up to 8 TB of high bandwidth DDR5 memory up to 5600 MHz.
16 DIMMs per processor for up to 8 TB total DDR5 memory per server with increased performance, High Bandwidth Memory (HBM) support, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2 x16 PCIe Gen5 and 2 OCP slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports up to three single-wide (SW) GPUs[1] to accelerate graphic intense workloads.
Supports Liquid Cooling Modules for highest thermal design points (TDPs).
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4510 |
| Processor frequency | 2.4 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| Configurable TDP-down | 4.5 W |
| Processor cache type | L3 |
| Bus type | OPI |
| Memory | |
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 32 GB |
| Storage | |
| Maximum storage capacity | 20 TB |
| Total storage capacity | 1.92 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 960 GB |
| HDD interface | SATA |
| Supported HDD sizes | 3.5" |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| Supported SSD sizes | 3.5" |
| RAID support | Yes |
| Supported RAID controllers | Embedded SATA controller |
| Hot-Plug support | Yes |
| Optical drive type | No |
| Graphics | |
| On-board graphics card | Yes |
| Network | |
| LAN controller | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | 2-slots (x16 FH, x16 HH) as standard. Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in a 2nd processor configuration. And maximum 2 OCP 3.0 PCIe5 slots. |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
| Remote administration | iLO 6 ASIC |
| Management platform | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, HPE OneView Advanced and HPE Compute Ops Management Refer to the iLO 6 User Guide |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server VMware ESXi Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Canonical Ubuntu Oracle Linux and Oracle VM SAP Linux |
| Processor special features | |
| CPU configuration (max) | 1 |
| Intel Smart Response Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Power | |
| Power supply type | 2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 2 |
| Power supply input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -30 - 60 øC |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 990 mm |
| Height | 241 mm |
| Weight | 32.3 kg |
| Other features | |
| Standard fans | 5x Standard Fans |
| Dimensions (W x D x H) (imperial) | 599.9 x 990.1 x 241 mm (23.6 x 39 x 9.49") |
| Storage drive type | 2x HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs. |
| Weight (imperial) | 32.3 kg (71.3 lbs) |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
