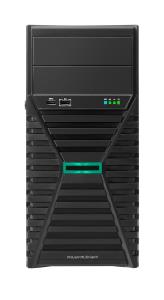

ProLiant ML30 Gen11 - 1p E-2434 - 32GB-U - 4LFF 2x960GB SSD - 800W RPS - EU
ITCurry #: 1171AKY6 | Article #: P77232-425-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Do you need a reliable enterprise-class tower server that can easily meet your budget? The HPE ProLiant ML30 Gen11 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust. A redundant power supply option and up to four LFF or eight SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen5, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows, which can give you an extra edge. Power your business now with an HPE ProLiant ML30 Gen11 server.
What is new supporting point:
Supports Intel Xeon E Processors up to 8 cores 95W.
4800 MT/s HPE DDR5 Standard Memory UDIMM offering: 16 GB and 32 GB, maximum 128 GB memory capacity.
Four expansion slots for more flexible usage, including one PCIe Gen5 x16.
Onboard M.2 NVMe SSD support.
Dedicated HPE iLO port and serial port kit option.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© |
| Processor model | E-2434 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Processor cache type | Smart Cache |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 128 GB |
| Storage | |
| Maximum storage capacity | 80 TB |
| Total storage capacity | 1.92 TB |
| Number of HDDs installed | 2 |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| Supported RAID controllers | Embedded Intel VROC SATA (formerly known as Intel RSTe) |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Expansion slots | 4, for detailed descriptions refer to the QuickSpecs |
| Design | |
| Chassis type | Tower (4U) |
| Performance | |
| Management platform | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management (optional subscription available). |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
| Power supply type | 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Power supply | 800 W |
| Number of main power supplies | 1 |
| Weight & dimensions | |
| Width | 175.3 mm |
| Depth | 475 mm |
| Height | 368.3 mm |
| Other features | |
| Standard fans | 1x Standard Fan |
| Storage drive type | 2x HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD |
| Security features | Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled. For full security features refer to the QuickSpecs. |
| Number of processors supported | 1 |
| Warranty | |
| Base Warranty | Non Non |
