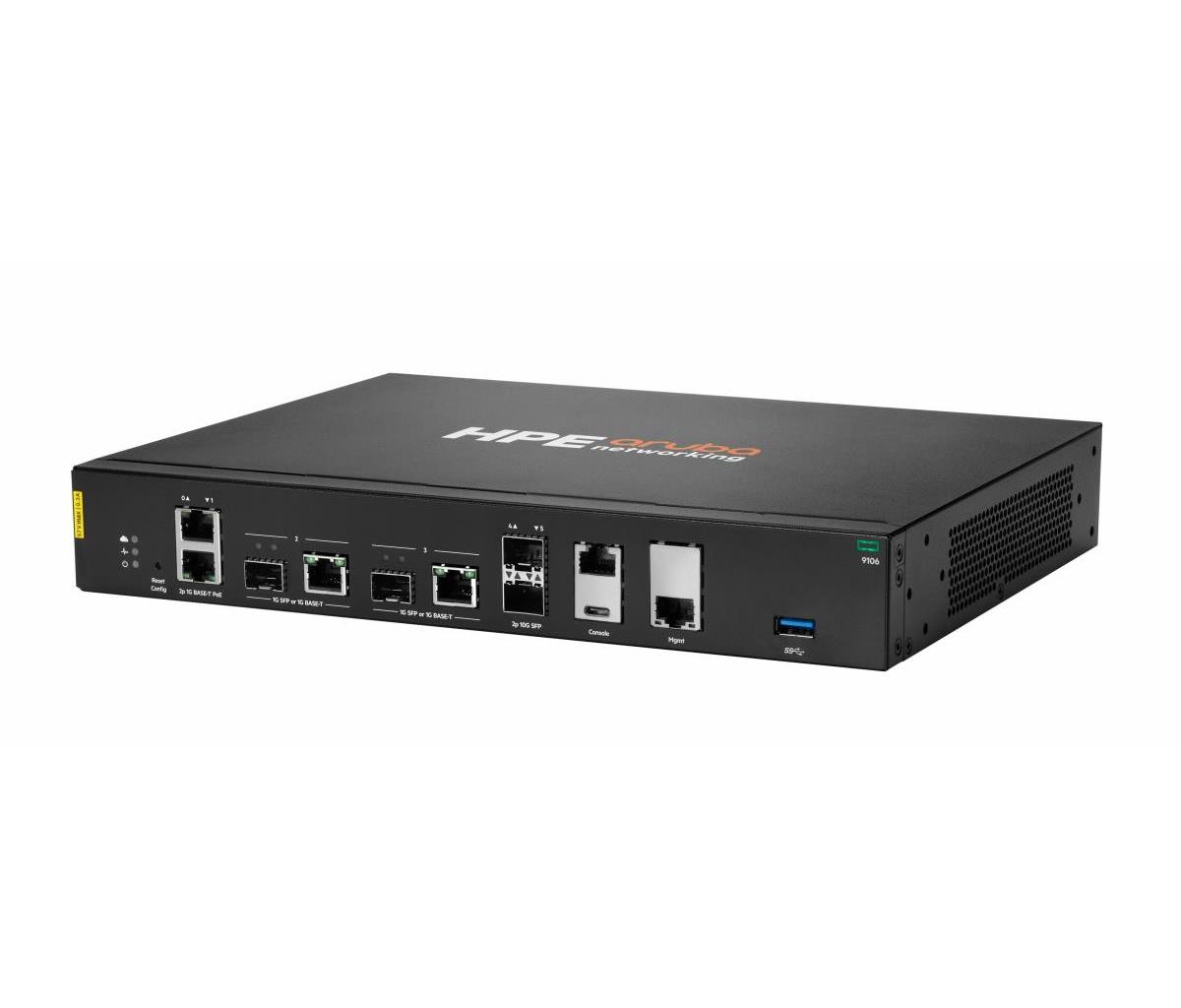

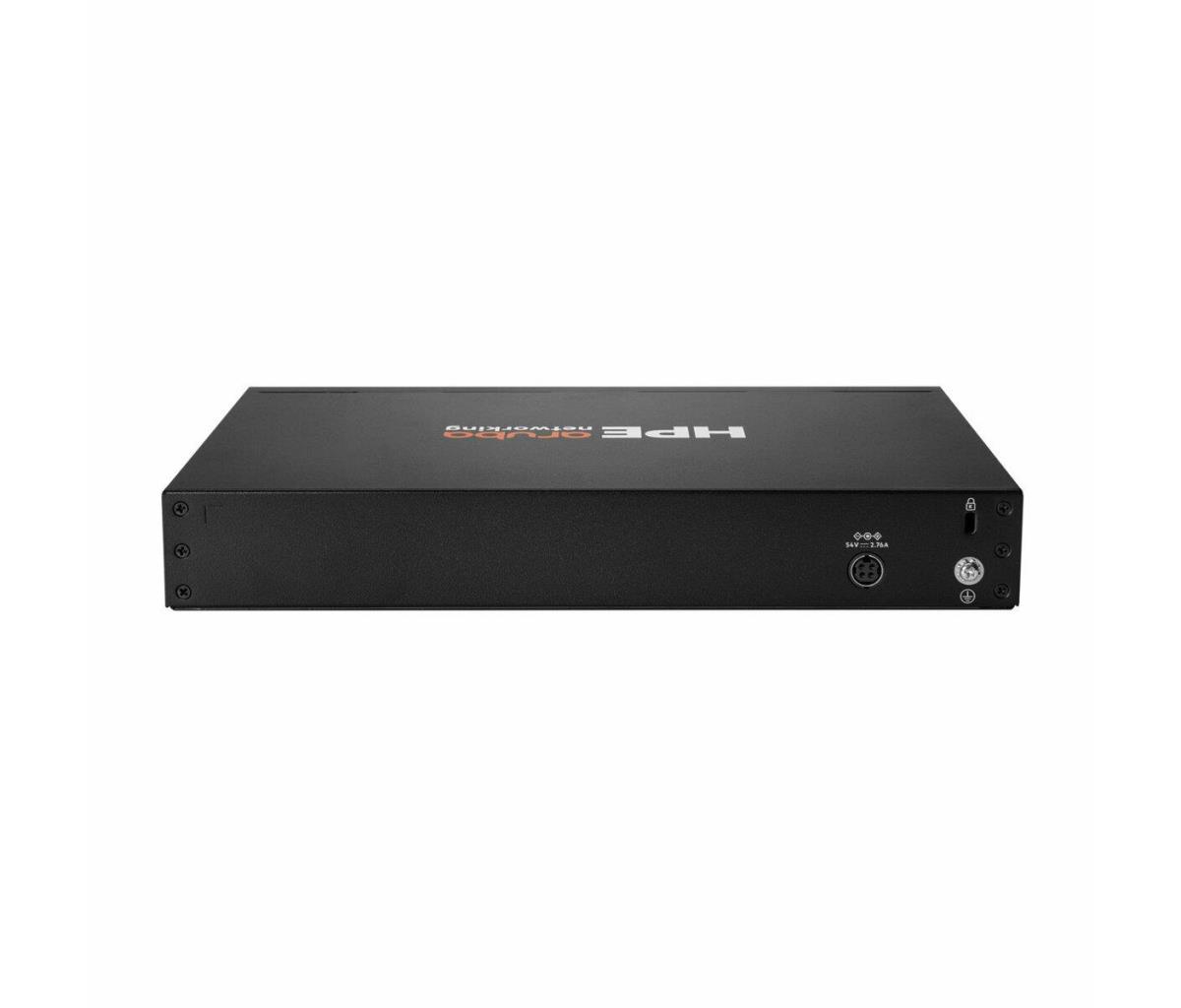

Aruba Networking 9106 2x SFP+2x Combo
ITCurry #: 1171AKF4 | Article #: S0B85A#ABB-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity – even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE ArubaOS 10 and HPE Aruba Networking Central, help drive efficient IT operations.
The HPE Aruba Networking 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of HPE ArubaOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.
Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
| Design | |
| Product colour | Black |
| Rack capacity | 1U |
| Mounting type | Desktop/Rack mounting |
| LED indicators | Power, Status |
| Features | |
| Mean time between failures (MTBF) | 236076 h |
| Performance | |
| Control display unit | No |
| Protocols | |
| DHCP client | Yes |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Firewall throughput | 10000 Mbit/s |
| 3DES/AES throughput | 10 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Console port | RJ-45 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo SFP ports quantity | 2 |
| SFP+ ports quantity | 2 |
| Power | |
| Power consumption (max) | 150 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Output voltage | 54 V |
| Power over Ethernet (PoE) | Yes |
| Heat dissipation | 290 BTU/h |
| Weight & dimensions | |
| Width | 294.8 mm |
| Depth | 201.1 mm |
| Height | 43.7 mm |
| Weight | 2.31 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Warranty | |
| Base Warranty | Non Non |
