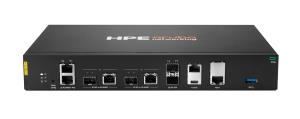

Aruba Networking 9114 4x SFP+ 4x Combo 1x Expansion Slot Hybrid Gateway
ITCurry #: 1171AKF0 | Article #: R9M45A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Aruba Networking 9100 Series Hybrid Gateway is a cloud-optimized edge appliance designed to securely and seamlessly extend enterprise services to medium branch, large branch and small campus networks. Using cloud architecture scale and efficiency together with intelligent edge device security and performance capabilities, the 9100 Hybrid Gateway delivers scalable, high-performance Wi-Fi with enhanced security to the edge. This purpose-built high-performance edge appliance delivers seamless roaming, 24/7 reliability, and always-on connectivity - even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, delivered by AOS-10 and HPE Aruba Networking Central, simplify and power IT operations. This versatile gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and automated and unified role-based policy enforcement for users and IoT across LAN, WAN, and SD-WAN.
What is new supporting point:
Always-on high availability with live upgrades, clustering, and redundancy.
Versatile scalable platform for cloud-based wireless gateway, SD-branch device, or VPN concentrator use cases.
Cloud-native AOS-10 architecture as part of HPE Aruba Networking Central provides IT operational efficiency with unified cloud-based management and control of wired, wireless, and SD-WAN.
Scales to meet medium branch, large branch and small campus needs supporting up to 4K APs and 10K clients.
High-speed wired connectivity with 10GbE fiber ports for up to 20Gbps throughput.
Dynamic segmentation for automated role-based policy enforcement across users, devices, and IoT.
| Design | |
| Product colour | Black |
| Rack capacity | 1U |
| Mounting type | Rack mounting |
| LED indicators | Power, Status |
| Features | |
| Mean time between failures (MTBF) | 280165 h |
| Protocols | |
| DHCP client | Yes |
| Network | |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Firewall throughput | 20000 Mbit/s |
| 3DES/AES throughput | 20 Gbit/s |
| Security | |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Console port | RJ-45 |
| Combo SFP ports quantity | 4 |
| SFP+ ports quantity | 4 |
| Power | |
| Power consumption (max) | 185 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Output voltage | 12 V |
| Heat dissipation | 631 BTU/h |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 351 mm |
| Height | 43.7 mm |
| Weight | 6.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Warranty | |
| Base Warranty | Non Non |
