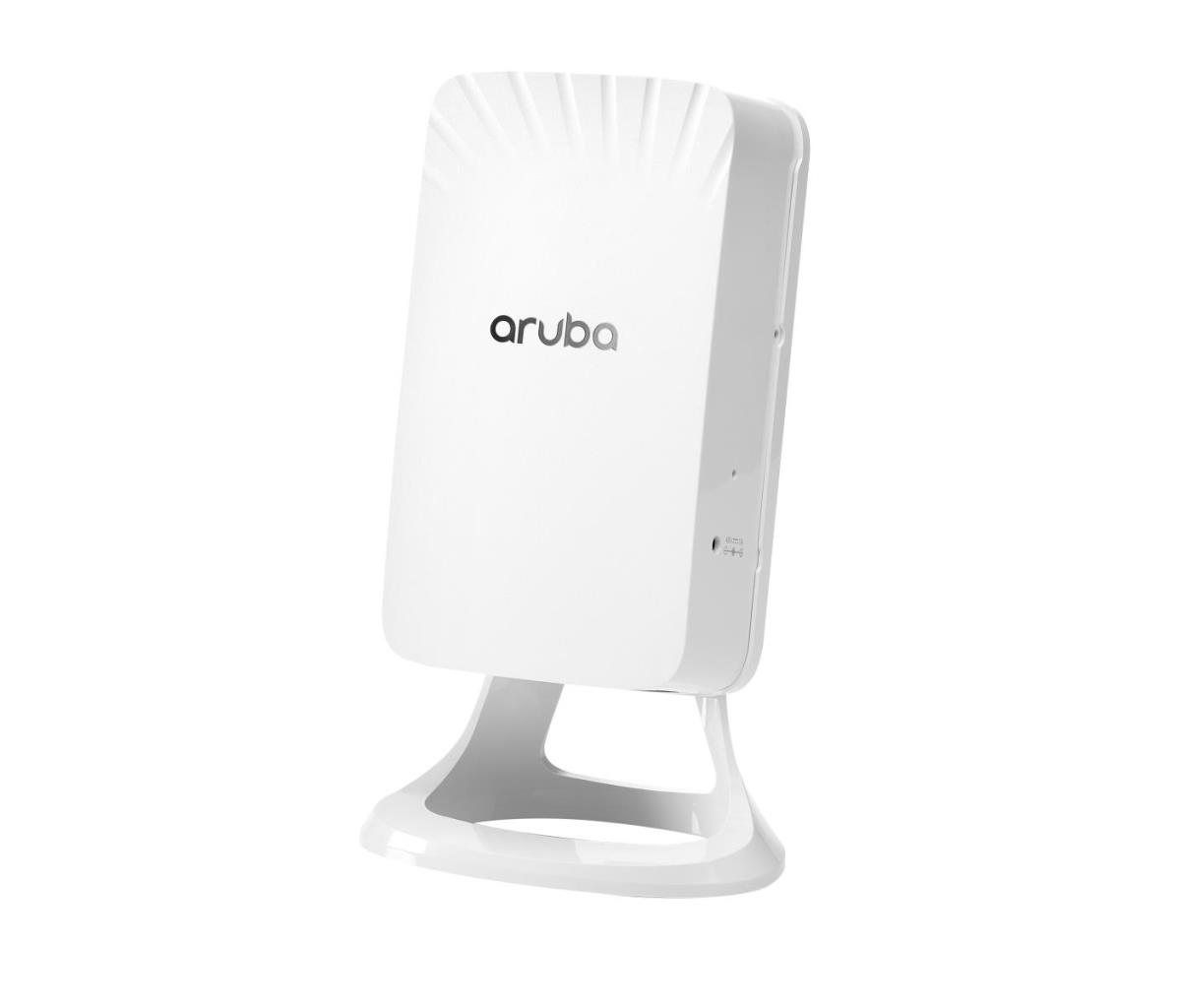

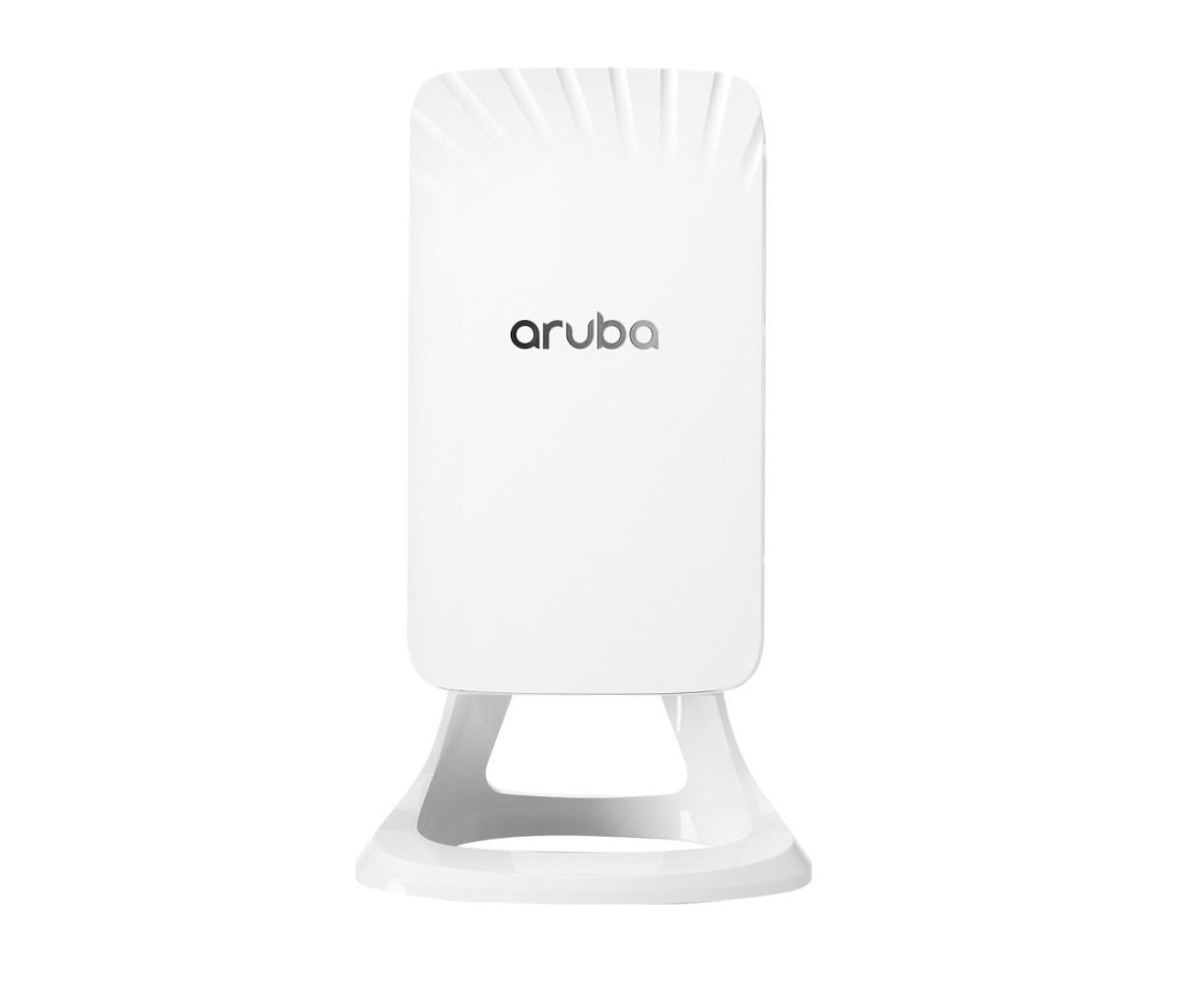

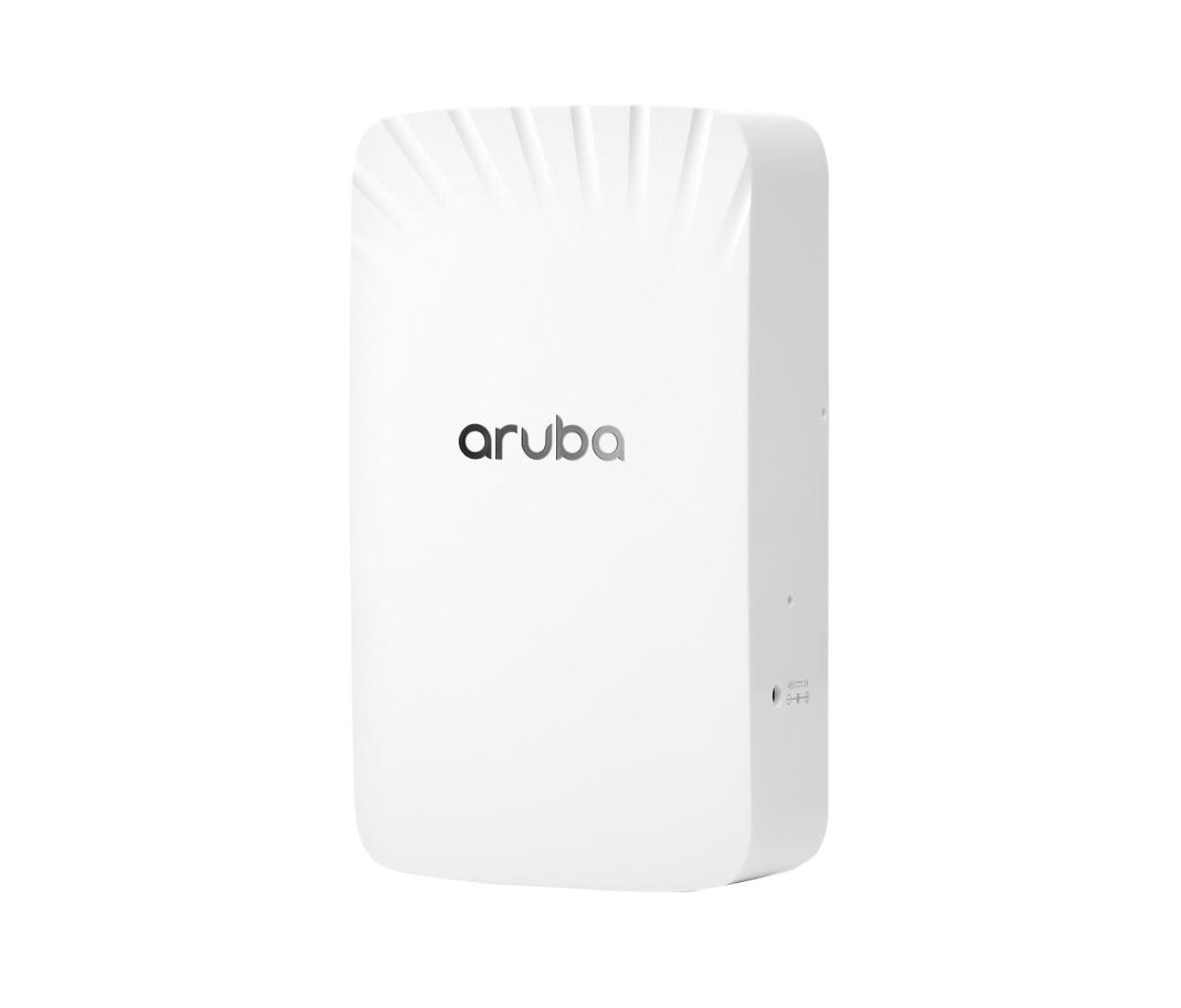

Aruba AP-505H (RW) Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+4 Ethernet PSE USB
ITCurry #: 1171YL06 | Article #: R3V46A
slide 2 of 4
Related products
slide 7 to 11 of 14
Product Information
The Aruba 500H series access points, with Wi-Fi 6 (802.11ax) technology and Aruba’s intelligent software innovations, deliver high performance connectivity for mobile and IoT devices in any environment.
The 500H series is designed to simultaneously serve multiple clients and traffic types in dense environments, and boosts overall network performance by up to 400% compared to 802.11ac APs.
The 500H series includes AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open certified security, and unified wired and wireless policy with Dynamic Segmentation.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1487 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 287 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 50 W |
| Design | |
| Placement | Table, Wall |
| Product colour | White |
| Antenna | |
| Antenna type | Internal |
| Antenna direction type | Semi-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 5.4 dBi |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 47 mm |
| Height | 150 mm |
| Weight | 360 g |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
Aruba AP-505H (RW) Dual-radio 802.11ax 2x2 Unified Hospitality AP with 1+4 Ethernet PSE USB
390.54
