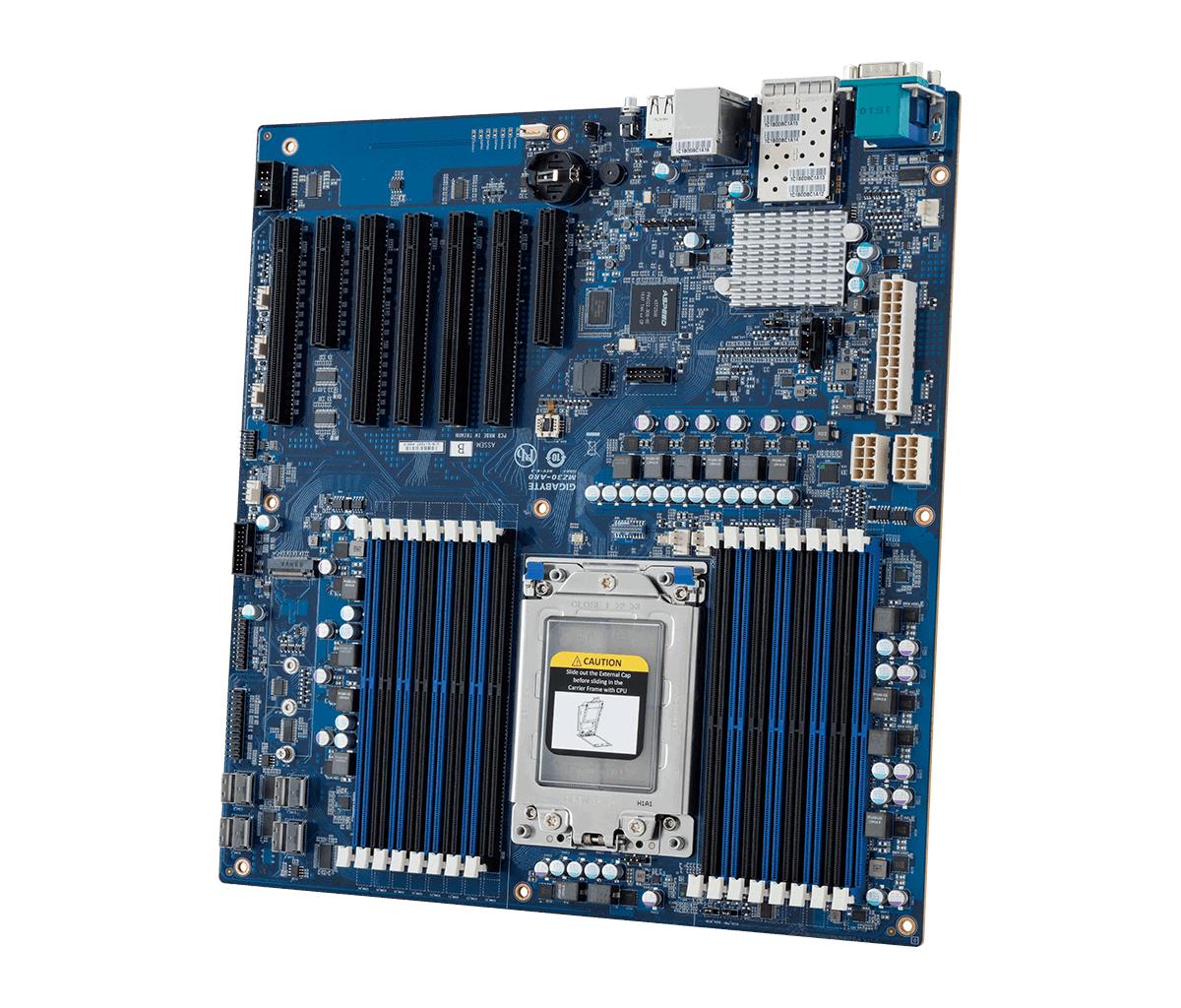

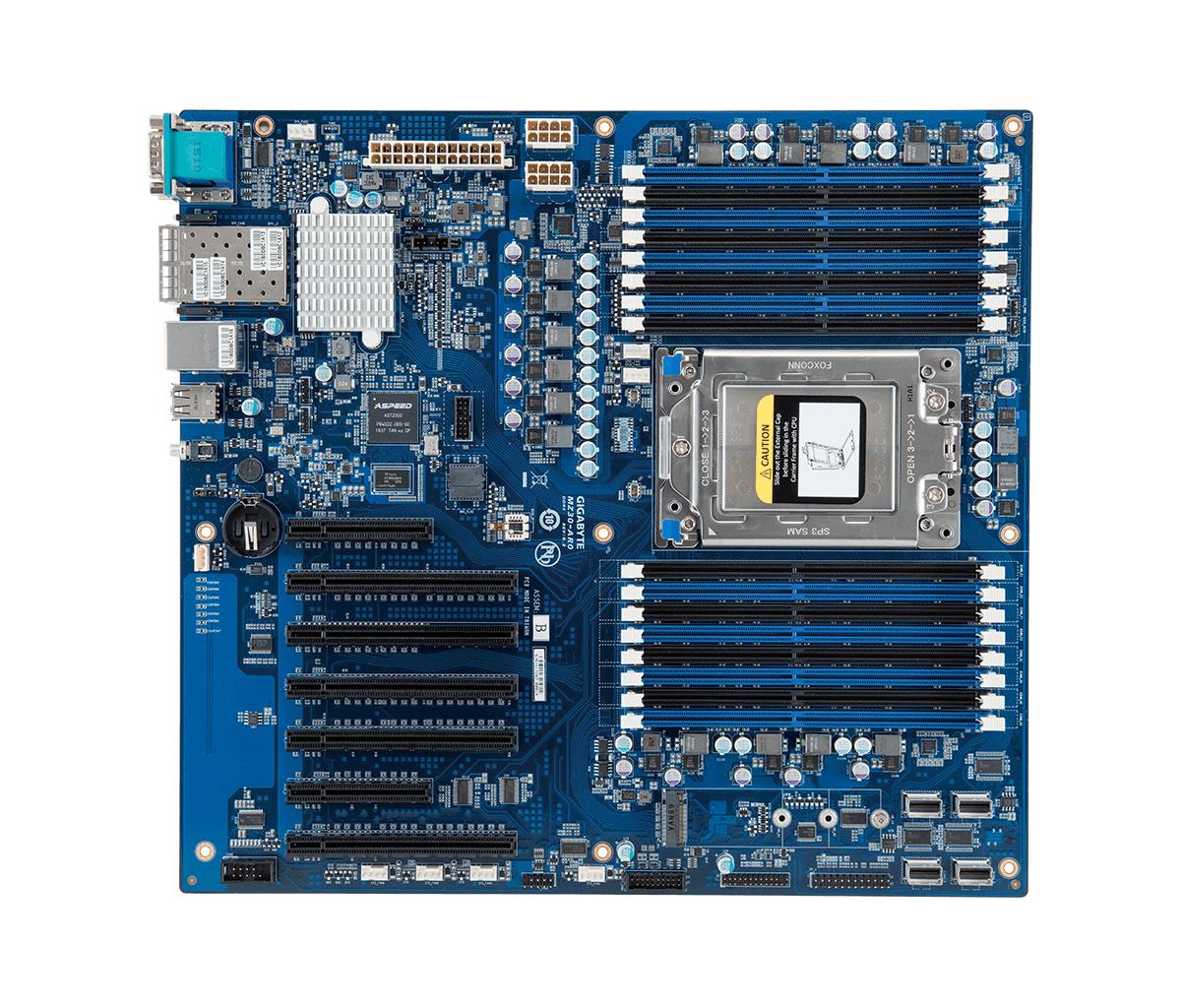

Server Motherboard - 16xDIMM 2x10gbe 16xsata3 7xPci-e3
ITCurry #: 85366281 | Article #: 9MZ31AR0MR-00-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The New x86 Option
AMD’s return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE’s extensive design expertise across a range of chipset platforms, this AMD EPYC platform is already receiving acclaim for its high specification:
- Memory
- I/O
- Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
- Memory Optimization
Memory speed of up to 2666MHz (at 1DPC)
Total memory capacity of 2TB supported
- PCIe Lanes
Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform
- Cores / Power
CPU power is managed at the core level, meaning that power is allocated only for specific workload needs
- Security
Proprietary AMD security on chip
Comprehensive I/O
Both single- and dual-socket CPUs come equipped with 128x PCIe lanes, providing extensive I/O options. This is a huge improvement in I/O vs. incumbent x86 offerings.
Increased I/O allows for flexibility in extending your storage, networking or compute to a level previously unattainable with standard server motherboards.
In addition, the integrated nature of the processor – designed as a system-on-chip (SoC) - means that there is no need for a separate PCH and less additional switches needed for expansion lanes.
High-Speed Networking
GIGABYTE is the first vendor to offer 10Gb across dual ports on-board. This ensures that users can get the most out of their system and are well equipped for today’s traffic demands. This boosts the server’s network performance with full-line rate throughput and reduces CPU overhead, leaving the EPYC to focus on the real compute tasks.
Onboard M.2
GIGABYTE’s AMD EPYC 1S platforms are designed to support on-board ‘M.2’ storage devices for time-sensitive operations and leaves room on the standard storage for compute tasks. Delivering up to 32 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA devices.
TPM 2.0 Module
GIGABYTE’s EPYC platform is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).
Carefully Selected Components
GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. GIGABYTE’s server motherboards are built with ultra long lasting components for the highest reliability attainable which allows us to offer some of the most durable servers in the industry.
Radeon Instinct MI25 Support
The EPYC platform, with its multiple lanes, is an ideal platform for AMD’s latest Radeon Instinct accelerator cards. Combining AMD CPUs with AMD GPUs allows for synergies and optimization through high-speed network fabric.
For the end user, this brings:
- Lower latency
- Peer to Peer communications
GIGABYTE Server Management (GSM)
GIGABYTE’s proprietary software, ‘GIGABYTE Server Management’, is designed to provide an effortless user experience. This software can be downloaded as a ‘GSM Client’/ ‘GSM Agent’/ ‘GSM Server’ module – depending on user applications - all of which are IPMI and Redfish compliant. Through these protocols, users and administrators can manage and monitor their server groups easily and remotely through multiple concurrent sessions.
GIGABYTE BMC Interface
Easy BIOS Upgrade
GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:
- No need to install core components such as CPUs, memory, drives and OS
- No need to power on the system (NB. PSU must be connected)
- Update individual (IMPI 2.0) or multiple boards simultaneously (CMD)
Custom Fan Speed Control (FSC)
GIGABYTE’s Dynamic Fan Policy is yet another feature designed to bring ease-of-use to administrators. With this function, individual servers can be orchestrated through both the BIOS and GIGABYTE’s proprietary software to maintain the optimal profile for current usage.
Environmental Compliance
GIGABYTE maintains its commitment to green products, and adheres to the latest RoHS regulations (in effect July 2017).
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | Socket SP3 |
| Lithography | 14 nm |
| Processor number of cores supported | 32 |
| Processor thermal power (max) | 180 W |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Octa-channel |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 64 GB |
| Maximum RDIMM memory | 32 GB |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 5 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |

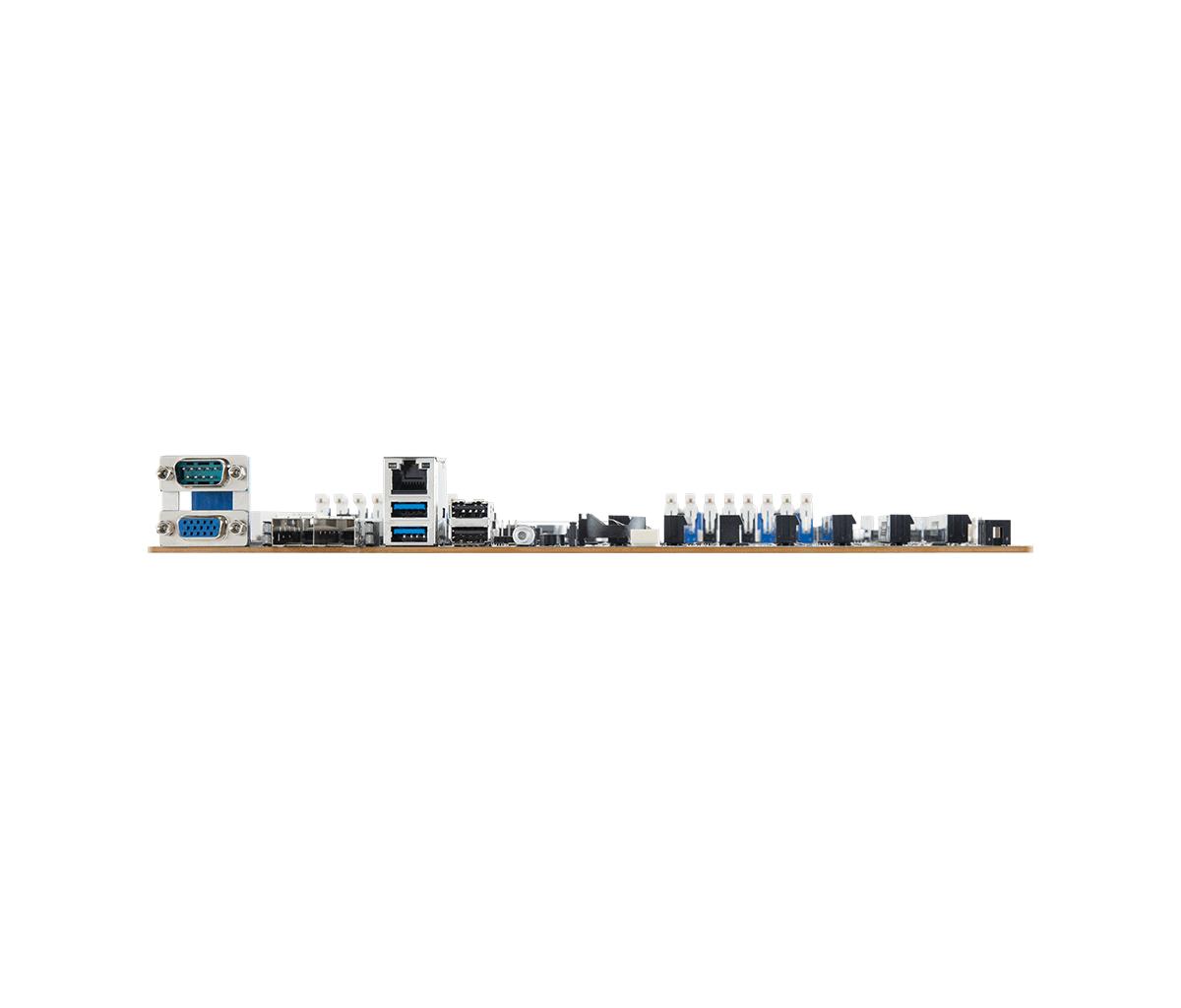

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 5 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 øC |
| Operating temperature (T-T) | 10 - 40 øC |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging data | |
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 330 mm |
| Packaging content | |
| User guide | Yes |
| Other features | |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Maximum LRDIMM memory | 64 GB |
| Number of DIMM slots | 16 |
| Number of processors supported | 1 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
