Product Information
Introducing a new generation of high-lumen theatre projection from Epson.

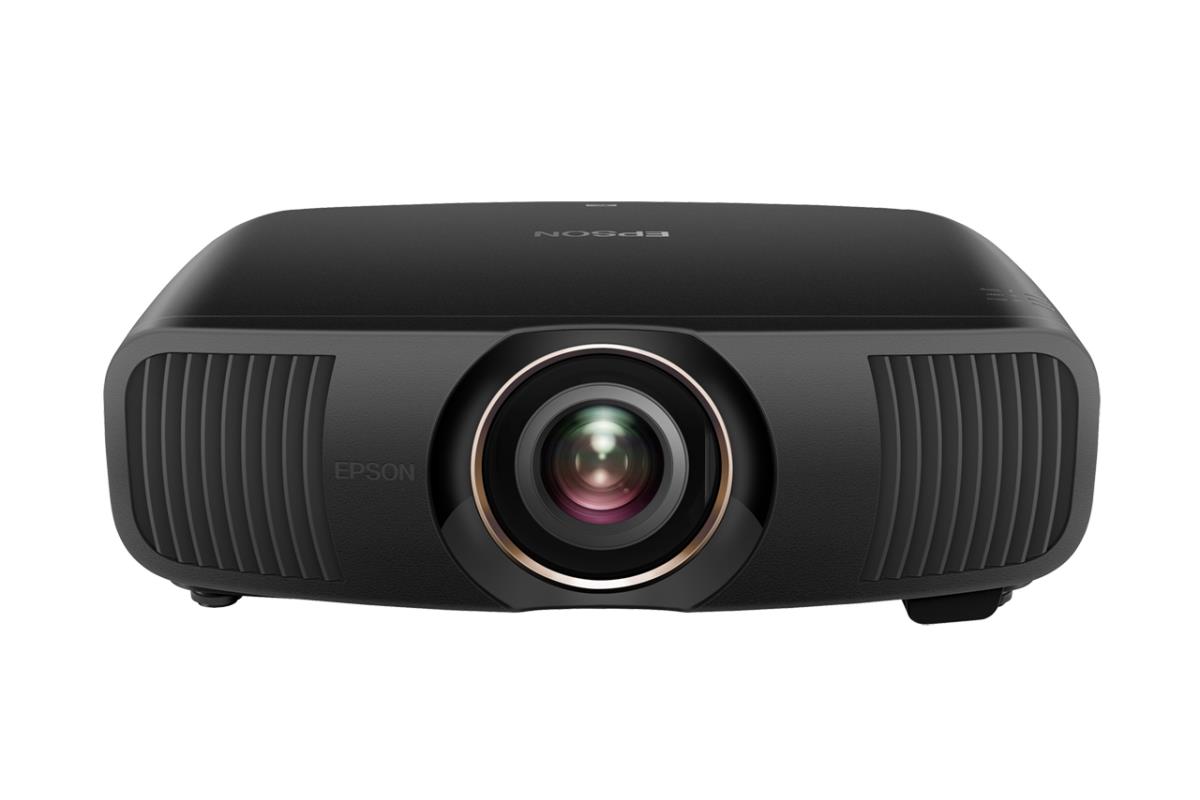

The all-new Epson QB1000 4K 3LCD Laser Projector with HDR.
Developed specifically for premium home theatre experiences, the Epson QB1000 produces a stunning 4K HDR picture with an incredible 3,300 lumens of colour brightness and white brightness1, setting a new benchmark for theatre picture quality.
Incorporating our most advanced projection technologies to date, the QB1000 combines proprietary 4K display technology2 with our unique 3-chip 3LCD laser-array technology to produce a full 8.29 million pixels on-screen—resulting in a picture with stunning clarity and colour brightness.
And, when driven by our proprietary Epson QZX Picture Processor, the Epson QB1000 optimizes the incredible brightness, colour accuracy and black contrast to faithfully display all your content the way the director intended.
Make no mistake, the Epson QB1000 Laser Projector reimagines the premium 4K HDR theatre experience and could quite possibly be the best premium theatre projector ever developed by Epson.
Projector | |
Projector brightness | 3300 ISO lumens |
Supported aspect ratios | 1.9:1, 3:2, 4:3, 5:4, 21:9 |
Screen size compatibility | 1270 - 7620 mm (50 - 300") |
Projection technology | 3LCD |
Projector native resolution | UHD 4K (3840x2160) |
Contrast ratio (typical) | 5000000:1 |
Native aspect ratio | 16:9 |
Number of colours | 1.07 billion colours |
Keystone correction, horizontal | -30 - 30ø |
Keystone correction, vertical | -30 - 30ø |
Matrix size | 1.88 cm (0.74") |
Light source | |
Light source type | Laser |
Service life of light source | 20000 h |
Lens system | |
Focal length range | 22.5 - 46.7 |
Aperture range (F-F) | 2 - 3 |
Zoom capability | Yes |
Zoom ratio | 2.1:1 |
Throw ratio | 1.35 - 2.84 |
Horizontal lens shift range | -47.1 - 47.1% |
Vertical lens shift range | -96.3 - 96.3% |
Video | |
Analog signal format system | Not supported |
Full HD | Yes |
3D | No |
Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080p, 2160p |
Video colour modes | Cinema, Dynamic, Natural, Vivid |
Ports & interfaces | |
HDMI version | 2.1 |
USB 2.0 ports quantity | 1 |
USB 2.0 Type-A ports quantity | 2 |
Mini-USB 2.0 ports quantity | 1 |
Serial interface type | RS-232C |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 2 |
DVI port | No |
AC (power) in | Yes |
Audio Return Channel (ARC) | Yes |
Enhanced Audio Return Channel (eARC) | Yes |
Network | |
Smart TV | No |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wi-Fi | No |
Storage | |
Card reader integrated | No |
Features | |
Interactive | No |
Noise level (economic mode) | 22 dB |
HDCP | Yes |
Noise level | 32 dB |
Air filter | Yes |
High Dynamic Range (HDR) supported | Yes |
High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
Design | |
Market positioning | Home cinema |
Product colour | Black |
Cable lock slot type | Kensington |
Display | |
Built-in display | No |
Power | |
Power source | AC |
Power consumption (typical) | 285 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 øC |
Storage temperature (T-T) | -10 - 60 øC |
Weight & dimensions | |
Width | 520 mm |
Depth | 447 mm |
Height | 193 mm |
Weight | 12.8 kg |
Packaging content | |
Remote control included | Yes |
Batteries included | Yes |
Cables included | AC |
Warranty | |
Base Warranty | Non Non |
