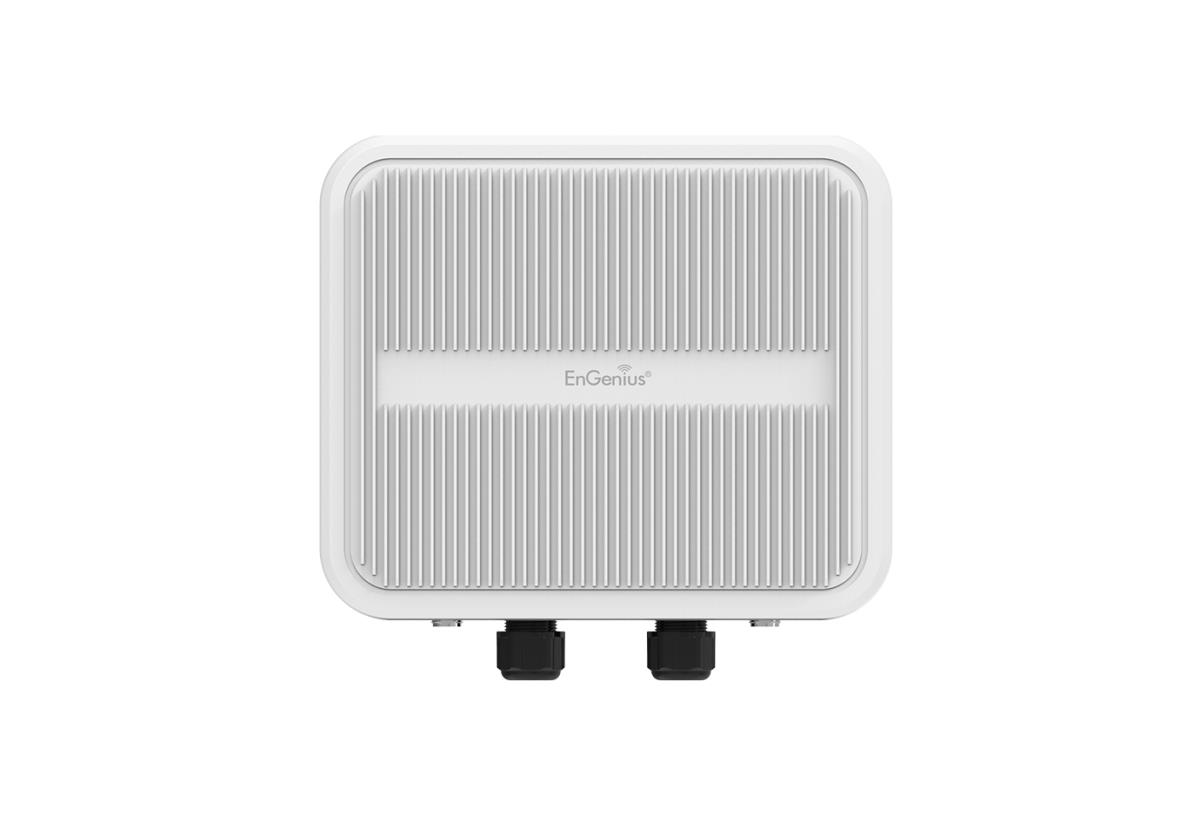

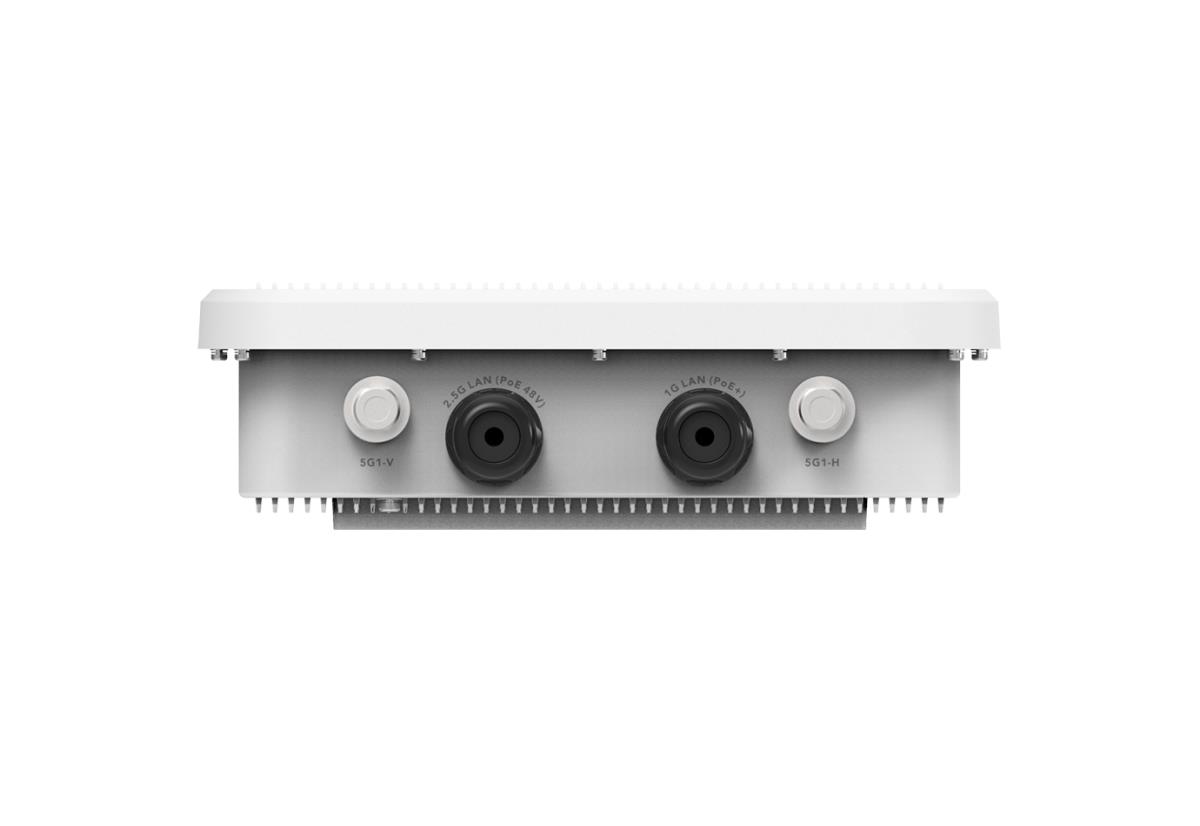

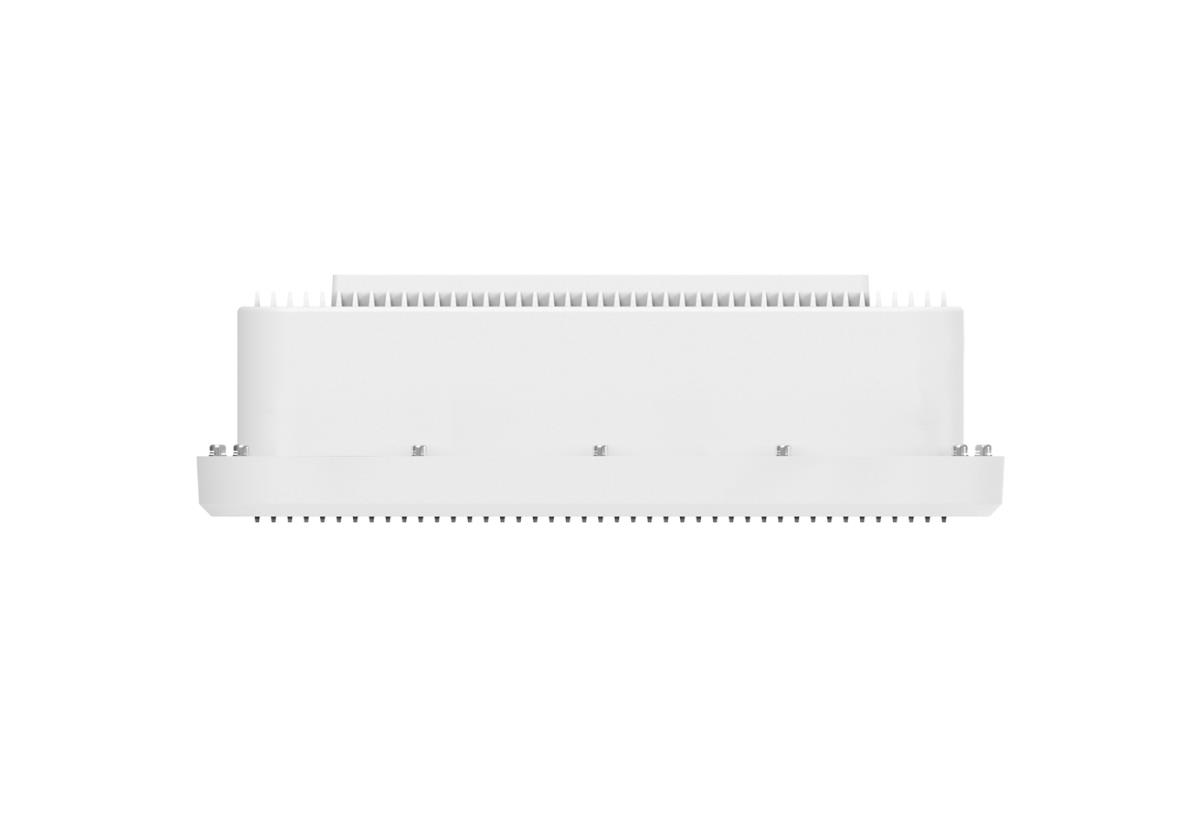

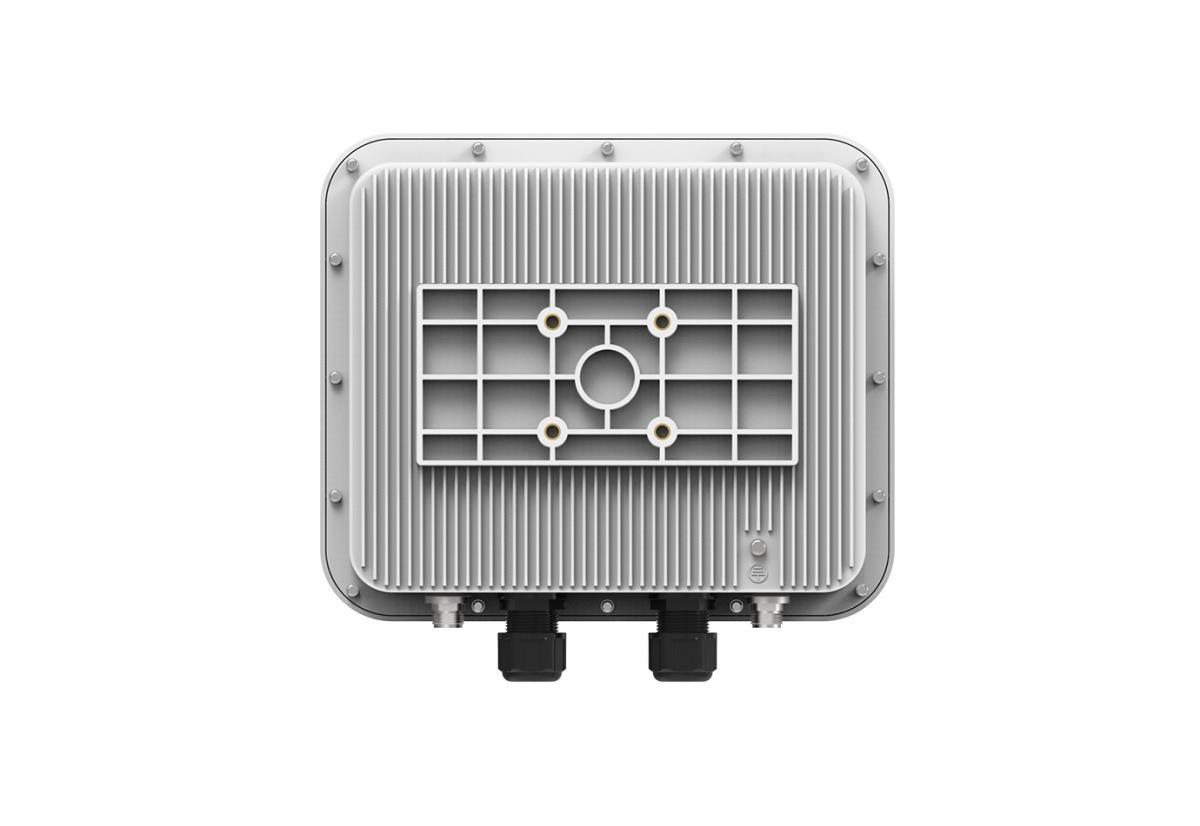

Eoc655-c18 Outdoor 5GHz Dual Radio 2x2 Access Point With 18dbi Panel Antenna
ITCurry #: Q4342284 | Article #: EOC655-C18
slide 2 of 4
Related products
slide 7 to 11 of 14
Product Information
The EOC655-C18, an Outdoor 5GHz Dual Radio 2x2 Access Point with an 18dBi Panel Antenna, is tailored for ISPs and Smart Cities. It delivers superior throughput in dense RF environments and is versatile for both PtP and PtMP applications. Simplified setup and troubleshooting are facilitated by a 2.4GHz radio and mobile app integration. Featuring built-in GPS for precise device placement and network mapping, it also includes IP67-rated durability and 'dying gasp' power failure detection. With AES-256 encryption for security and SkyPoint NMS for web-based management, the EOC655-C18 excels in performance and ease of use.
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Protocols | |
| DHCP server | Yes |
| Management features | |
| Syslog | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 21 W |
| Design | |
| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Antenna | |
| Antenna type | Internal & external |
| Antenna gain level (max) | 18 dBi |
| Antenna connector type | N-type |
| Performance | |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A53 |
| Processor frequency | 1000 MHz |
| Flash memory | 32 MB |
| Internal memory | 1024 MB |
| Certificates | |
| Compliance certificates | CB, RoHS, WEEE |
| Certification | FCC CE IC UKCA |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 227 mm |
| Height | 82 mm |
| Weight | 1.91 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 60 øC |
| Storage temperature (T-T) | -40 - 80 øC |
| Storage relative humidity (H-H) | 0 - 90% |
| Warranty | |
| Base Warranty | Non Non |
Eoc655-c18 Outdoor 5GHz Dual Radio 2x2 Access Point With 18dbi Panel Antenna
1014.18
