Product Information

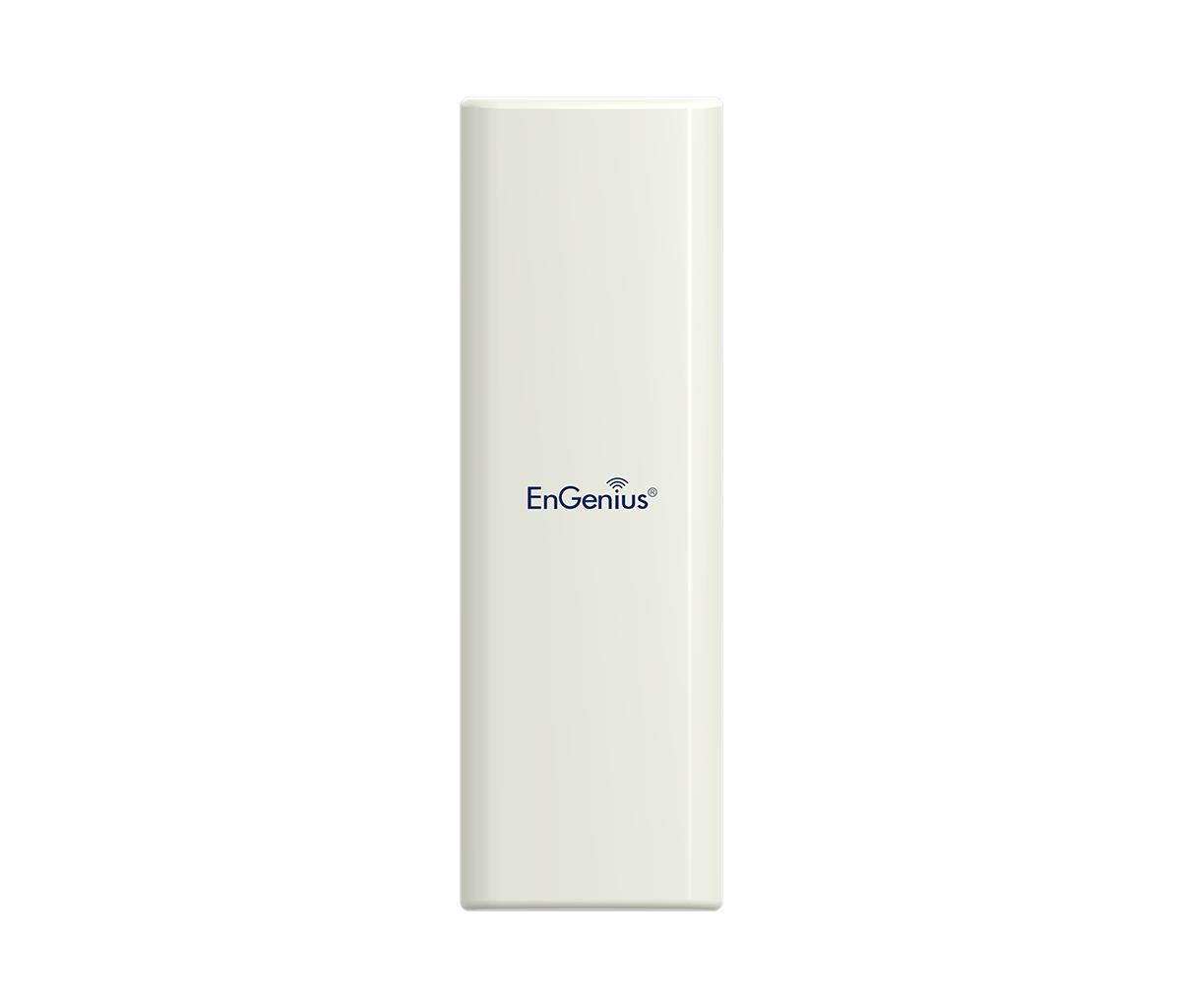

The EnGenius EOC600 802.11 ax 2x2 5GHz Broadband Outdoor Long Range CPE offers reliable and efficient outdoor Wi-Fi connectivity with EnGenius proprietary MAC and beamforming optimization. It features high 26 dBm transmit power and high gain 16 dBi integrated directional antenna for extended Wi-Fi range up to 3 miles point-to-point. It's also weatherproof and offers flexible operation modes with easy installation over 100 meters.
Features | |
2.4 GHz | No |
5 GHz | Yes |
6 GHz | No |
Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
Frequency band | 5.15 - 5.85 GHz |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
Channel bandwidth | 160 MHz |
MIMO | Yes |
MIMO type | Multi User MIMO |
Spread spectrum method | OFDMA |
VLAN support | Yes |
Virtual LAN features | Tagged VLAN |
Maximum Tx power (2.4 GHz) | 9 dBmW |
Maximum Tx power (5 GHz) | 26 dBmW |
Security | |
Security algorithms | 256-bit AES |
MAC address filtering | Yes |
IP address filtering | Yes |
IGMP snooping | Yes |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols | |
DHCP server | Yes |
Management features | |
Syslog | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
Power | |
Power over Ethernet (PoE) | Yes |
Power consumption (max) | 13 W |
Design | |
Placement | Wall |
Product colour | White |
International Protection (IP) code | IP55 |
Antenna | |
Antenna type | Internal |
Antenna direction type | Directional |
Antenna features | Integrated antenna |
Antennas quantity | 2 |
Antenna gain level (max) | 16 dBi |
Performance | |
Flash memory | 128 MB |
Internal memory | 512 MB |
Certificates | |
Compliance certificates | CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA, WEEE |
Weight & dimensions | |
Width | 260 mm |
Depth | 84 mm |
Height | 55 mm |
Weight | 610 g |
Packaging content | |
Quantity per pack | 1 pc(s) |
Mounting kit | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 90% |
Operating temperature (T-T) | -20 - 60 øC |
Storage temperature (T-T) | -40 - 80 øC |
Storage relative humidity (H-H) | 0 - 90% |
Warranty | |
Base Warranty | Non Non |
