5GHz Dual Omni 13dbi
ITCurry #: N3302101 | Article #: AMO-5G13-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Omnidirectional Coverage

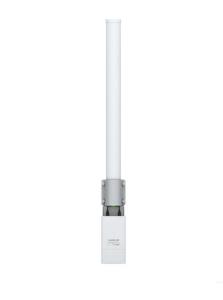

airMAX Omni is a Carrier Class 2x2 Dual Polarity MIMO Omnidirectional Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately).
Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation.. This seamless integration gives network architects unparalleled flexibility and convenience.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Latency
Multiple features dramatically reduce noise.
| Performance | |
| Frequency band | 5 GHz |
| Horizontal beam width (5 GHz) | 7ø |
| Vertical beam width (5 GHz) | 2ø |
| Antenna gain level (max) | 13 dBi |
| Features | |
| Antenna type | Sector antenna |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Mounting | Wall |
| Purpose | Outdoor |
| Product colour | White |
| Certification | EN 302 326 DN2 |
| Weight & dimensions | |
| Width | 799 mm |
| Depth | 90 mm |
| Height | 65 mm |
| Weight | 820 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Warranty | |
| Base Warranty | Non Non |
