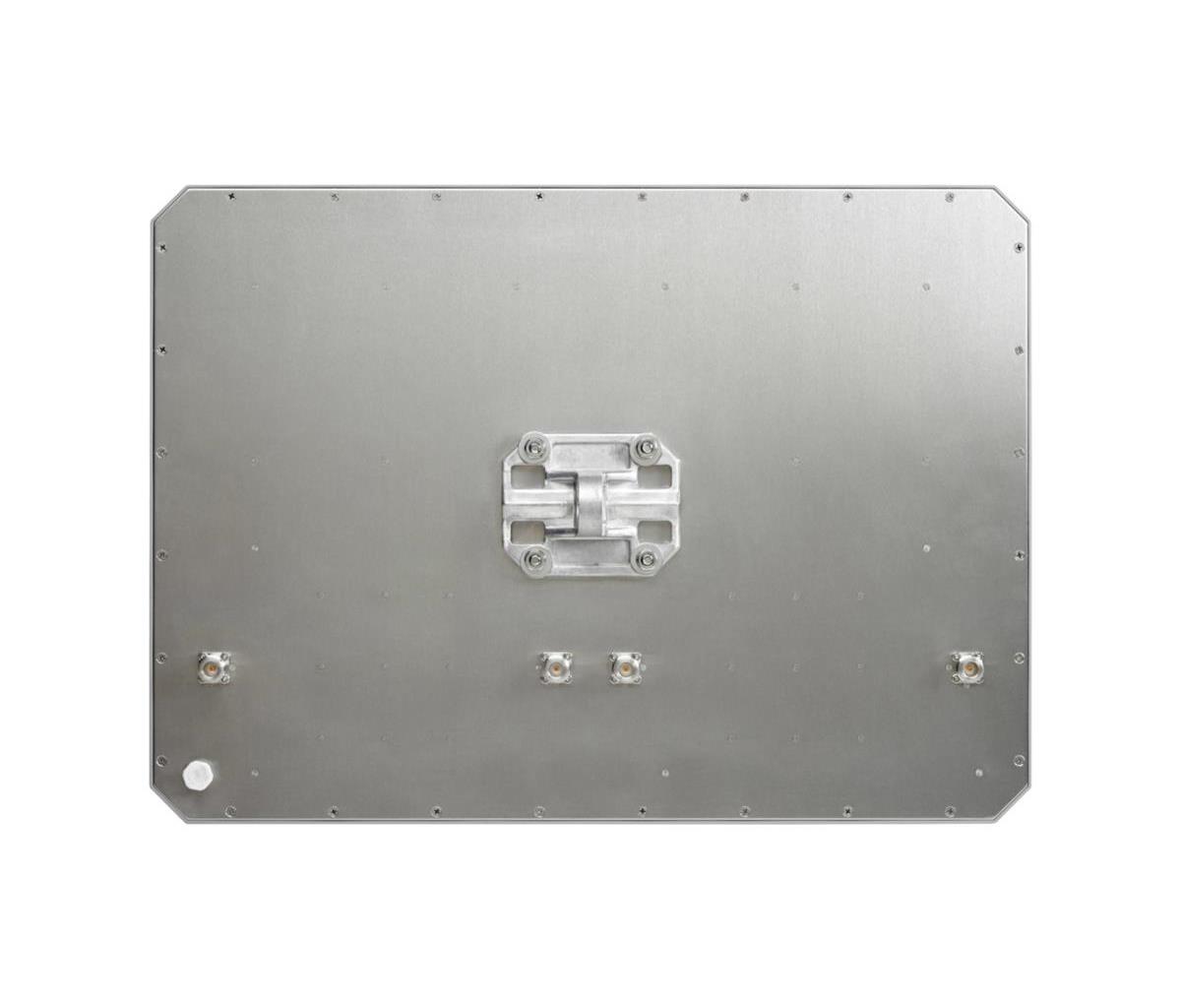

Antenna 2.4GHz/ 5GHz 13dbi Patch 4port N Conn
ITCurry #: 0918K575 | Article #: AIR-ANT2513P4M-N=
slide 2 of 3
Related products
slide 7 to 11 of 14
Product Information
The Cisco Aironet AIR-ANT2513P4M-N= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved coverage and performance in mind. This FCC-approved patch antenna directs the energy it receives from the transmitter to provide more energy in one direction and less energy in all other directions.
| Performance | |
| Frequency band | 2.4 - 2.5 / 5.15 - 5.9 GHz |
| Impedance | 50 O |
| Antenna gain level (max) | 13 dBi |
| Features | |
| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Dual polarization |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Width | 507 mm |
| Height | 21.1 mm |
| Weight | 2.3 kg |
| Package width | 402.1 mm |
| Package depth | 660.9 mm |
| Package height | 104.9 mm |
| Package weight | 4.31 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging content | AIR-ANT2513P4M-N Antenna |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
| Warranty | |
| Base Warranty | Non Non |
Antenna 2.4GHz/ 5GHz 13dbi Patch 4port N Conn
1064.22
