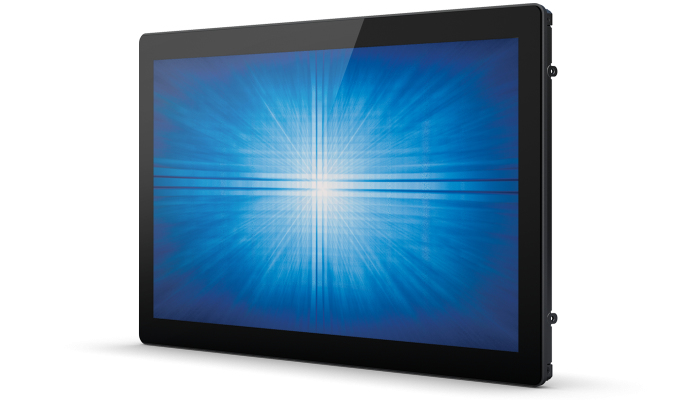

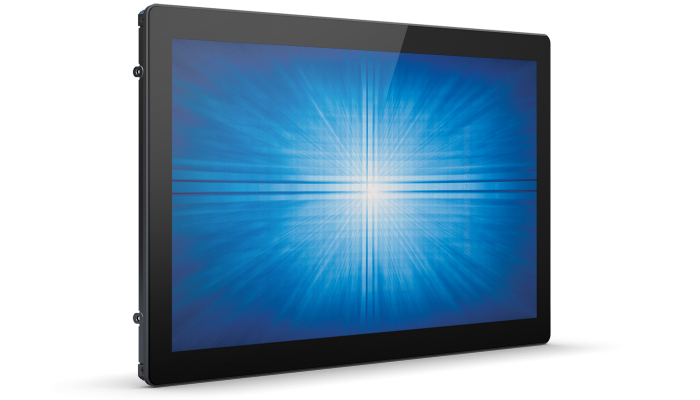

Touchscreen 22in 2295l LCD 1920 X 1080 Touchpro Pcap Open Frame Active Matrix USB Black
ITCurry #: M0134308 | Article #: E146083-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Elo's new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Brighten Up Your Kiosks
Create a design-in solution that will capture audiences, attract integrators, and differentiate you from the competition.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch-thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Built for Industrial & Commercial Use
We pride ourselves on being a leading manufacturer in the market — designing and building the complete solution with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product, and to maximize your ROI.
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Panel type | TFT |
| Touchscreen | Y |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 ? 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.78 million colours |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Display brightness | 400 cd/mý |
| Performance | |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| OmniTapps Multitouch compatibility | N |
| Multimedia | |
| Built-in camera | N |
| Built-in microphone | N |
| Design | |
| Product colour | Black |
| Certification | RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE |
| Ports & interfaces | |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| USB Touch port | Y |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Y |
| HDMI ports quantity | 1 |
| HDMI version | 1.3 |
| DisplayPorts quantity | 1 |
| Warranty | |
| Base Warranty | Non Non |
| Ergonomics | |

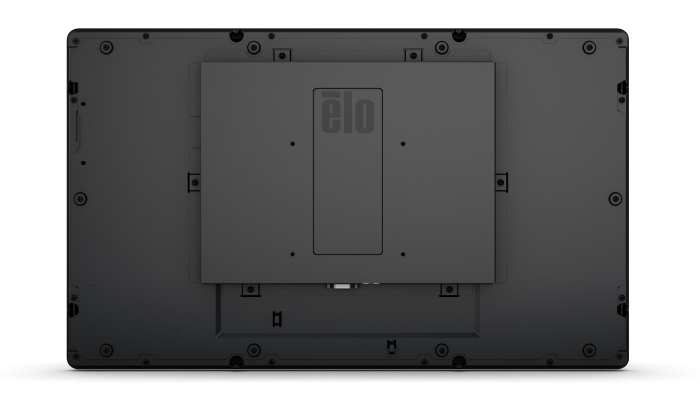

| VESA mounting | Y |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Y |
| Power | |
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Packaging content | |
| Cables included | HDMI, USB, VGA |
| Quick start guide | Y |
| Weight & dimensions | |
| Width (without stand) | 51.6 cm |
| Depth (without stand) | 4.69 cm |
| Height (without stand) | 31.1 cm |
| Weight (without stand) | 5.41 kg |
| Packaging data | |
| Package width | 620 mm |
| Package depth | 190 mm |
| Package height | 423 mm |
| Package weight | 8.6 kg |
| Sustainability | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Display viewable area (HxV) | 476.06 x 267.79 mm |
| Full HD | Y |
| Mean time between failures (MTBF) | 50000 h |
