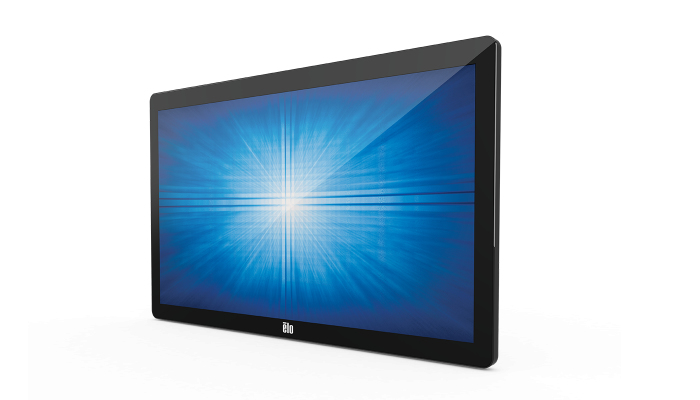

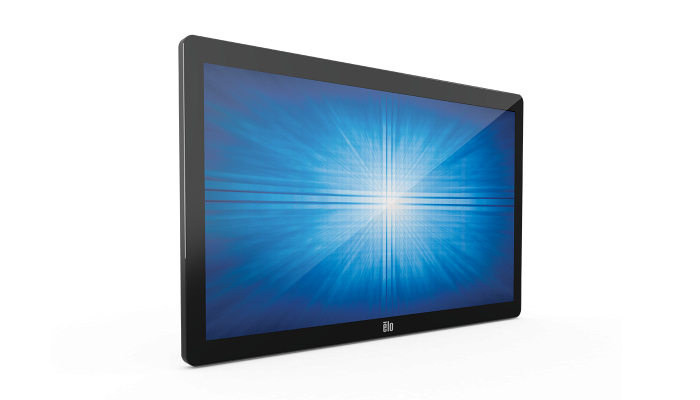

LCD Touchmonitor 2203lm - 22in - 1920 X 1080 - Touchpro Pcap USB - Black
ITCurry #: M0134446 | Article #: E126096-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | TFT |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Response time | 25 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 800 x 500, 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 ? 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.78 million colours |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 54.61 cm |
| Display brightness | 250 cd/mý |
| LED backlight | Yes |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IPX1 |
| Certification | Canada (CUL, IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC, UL), Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC, India BIS |
| Ports & interfaces | |
| Micro-USB ports quantity | 4 |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| Number of OSD languages | 10 |
| Power | |
| Power consumption (typical) | 22.5 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | AC/DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3.048 m |
| Non-operating altitude | 0 - 12.192 m |
| Packaging content | |
| Stand included | No |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Quick start guide | Yes |
| Weight & dimensions | |
| Width (without stand) | 526.9 mm |
| Depth (without stand) | 42.7 mm |
| Height (without stand) | 326.9 mm |
| Weight (without stand) | 5.2 kg |
| Packaging data | |
| Package width | 633 mm |
| Package depth | 196 mm |
| Package height | 450 mm |
| Package weight | 7.2 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| AC adapter included | Yes |
| Display viewable area (HxV) | 467.06 x 267.78 mm |
| Mean time between failures (MTBF) | 50000 h |
| Warranty | |
| Base Warranty | Non Non |
