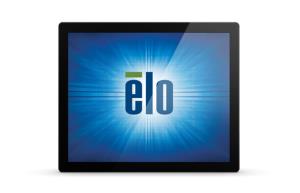

Touchscreen 19in 1991l LCD 1280 X 1024 Multi Touch Open Frame Touchpro USB Black
ITCurry #: M0133823 | Article #: E331019-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Elo 1991L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1991L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless, zero-bezel 19-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display technology | LCD/TFT |
| Backlight type | LED |
| Touchscreen | Y |
| Touchscreen type | Kiosk |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Response time | 14 ms |
| Screen shape | Flat |
| Aspect ratio | 5:4 |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.78 million colours |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display brightness | 225 cd/mý |
| LED backlight | Y |
| Performance | |
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
| Multimedia | |
| Built-in camera | N |
| Design | |
| Product colour | Black |
| Ports & interfaces | |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Y |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ergonomics | |
| VESA mounting | Y |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Wall mountable | Y |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (typical) | 17 W |
| Power consumption (off) | 0.5 W |
| Power supply type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Weight (without stand) | 4.6 kg |
| Packaging data | |
| Package width | 526 mm |
| Package depth | 190 mm |
| Package height | 450 mm |
| Package weight | 7 kg |
| Sustainability | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Display viewable area (HxV) | 374.78 x 299.83 mm |
| Full HD | N |
| Mean time between failures (MTBF) | 50000 h |
| Warranty | |
| Base Warranty | Non Non |
