Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multi Mode SC fiber

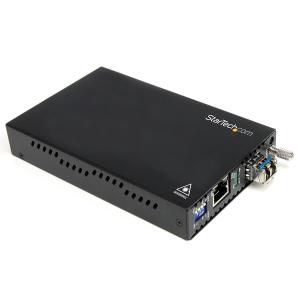

The ET91000SC2 1000 Mbps Gigabit Multimode Fiber Media Converter (SC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-SX) fiber backbone, the GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, this Ethernet to SC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, the fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
| Network | |
| Maximum data transfer rate | 2000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 65000 h |
| Design | |
| Internal | No |
| Product colour | Black |
| Housing material | Steel |
| Certification | CE, FCC |
| Warranty | |
| Base Warranty | Non Non |
| Power | |
| Input voltage | 115 - 230 V |
| Input current | 0.36 A |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Power consumption (typical) | 4 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 150 mm |
| Height | 25 mm |
| Weight | 562 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 øC |
| Storage temperature (T-T) | -10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 138 mm |
| Package height | 89 mm |
| Package weight | 766 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
