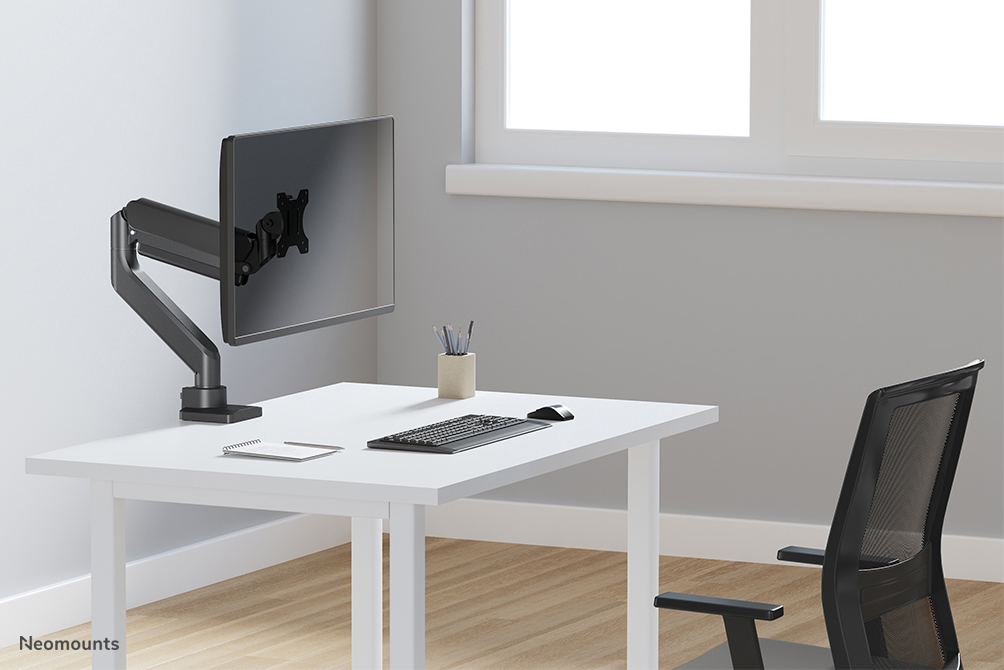

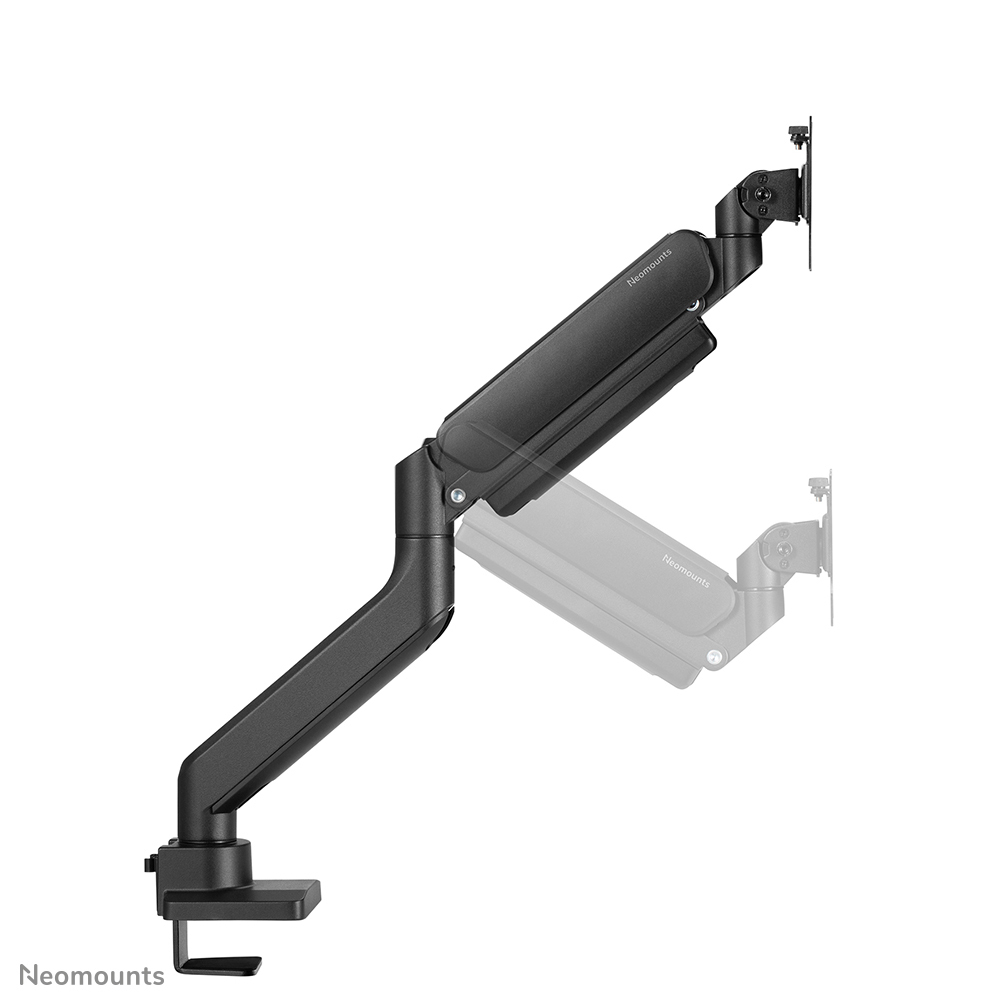

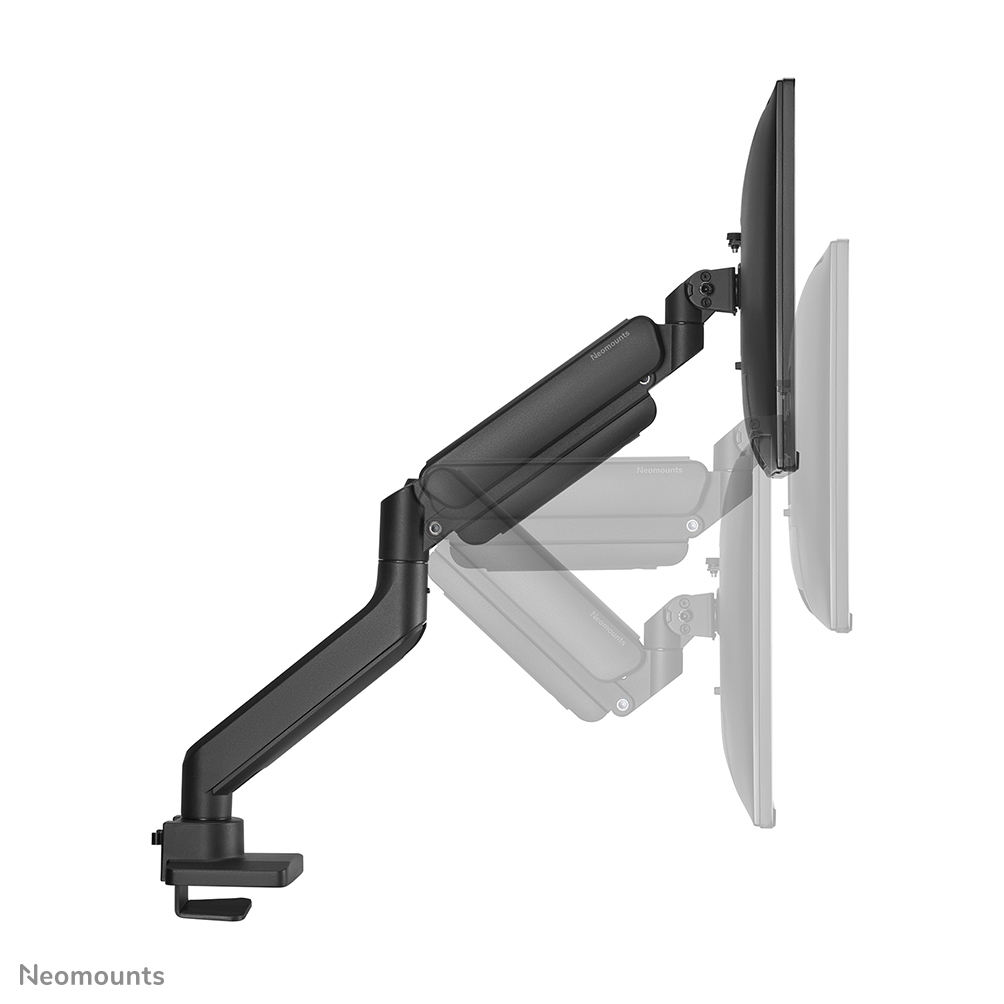

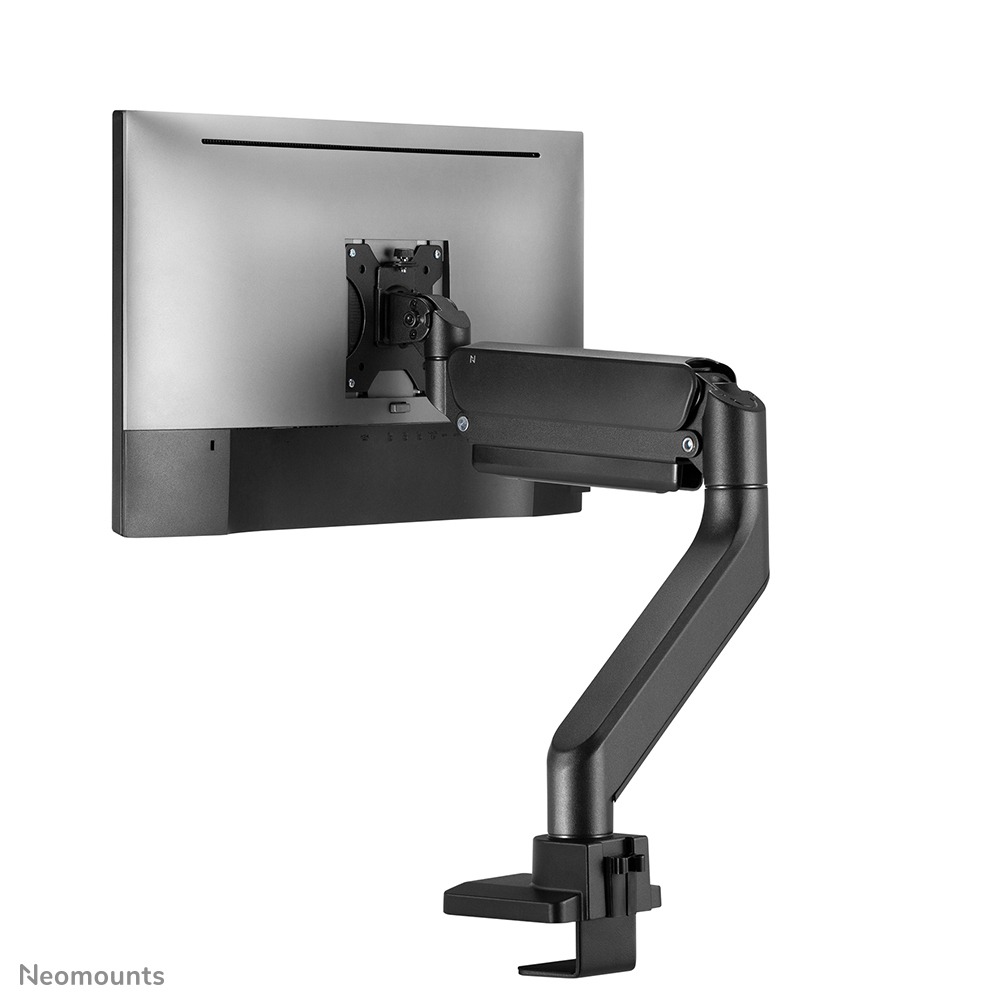

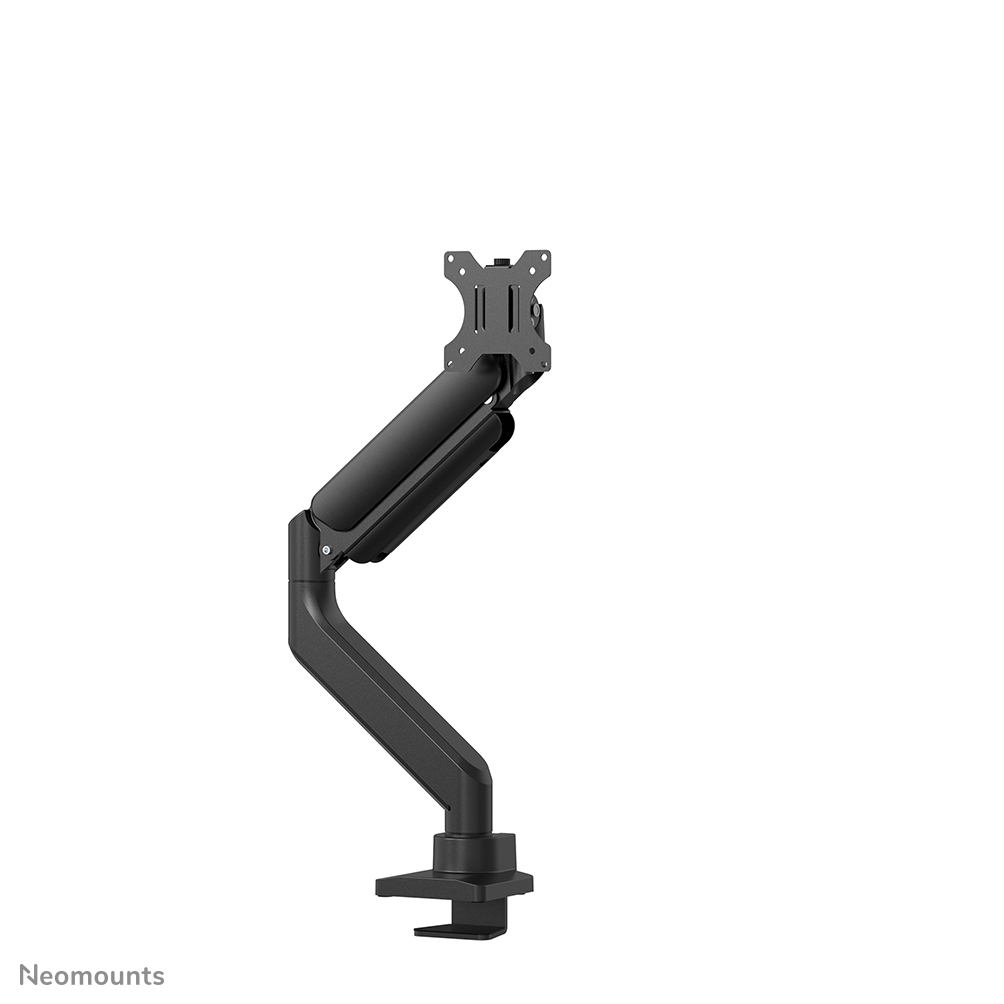

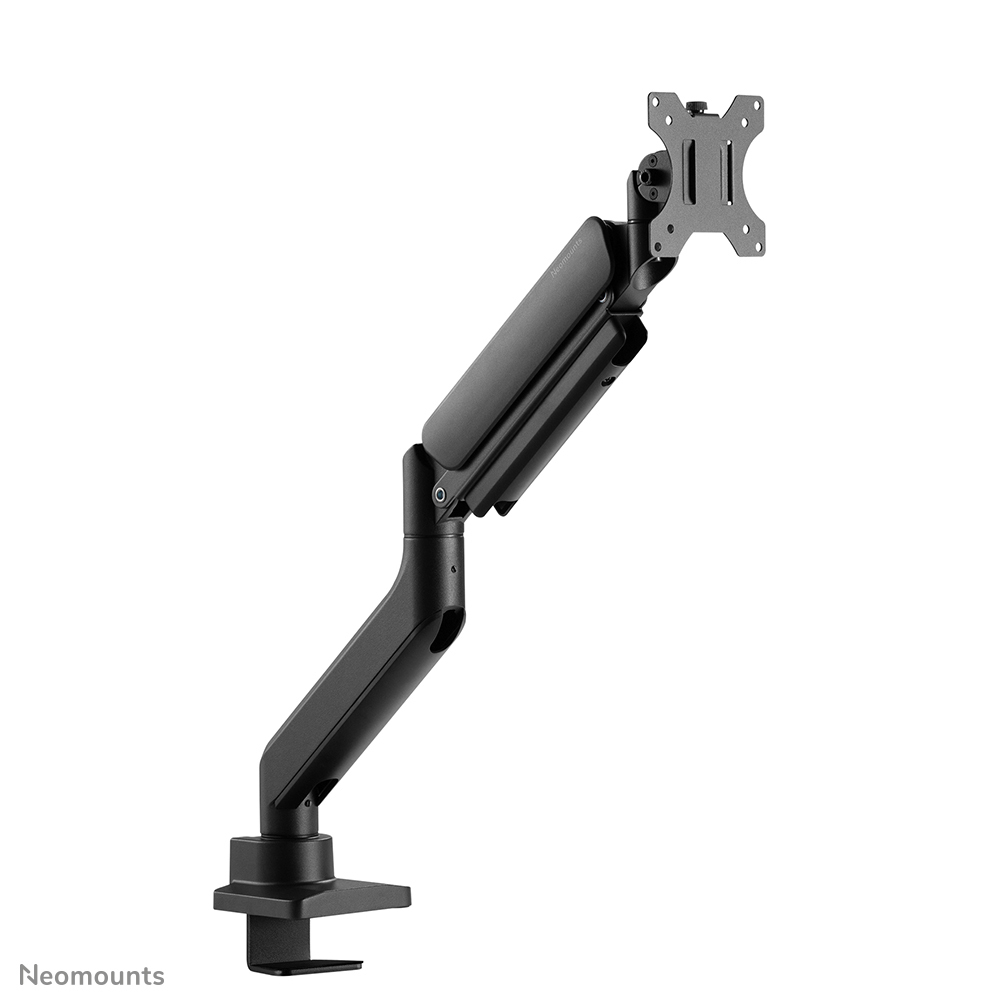

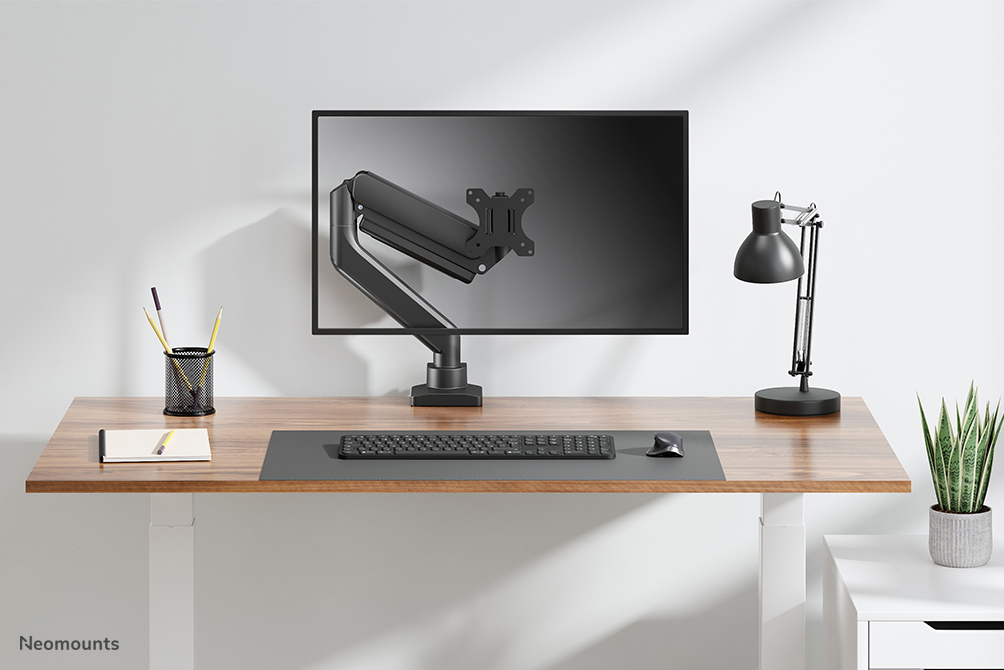

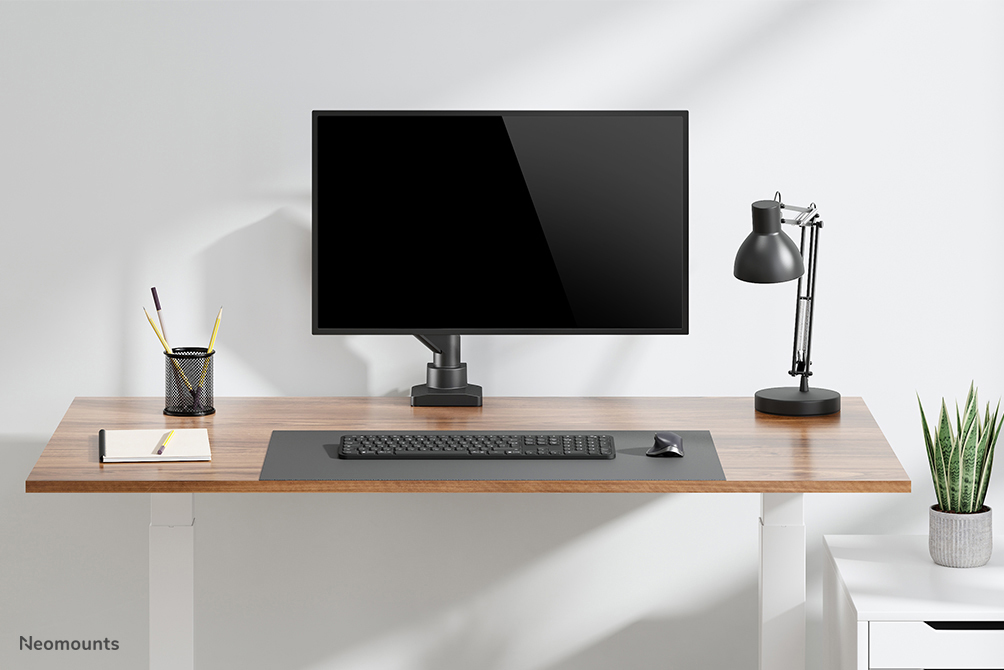

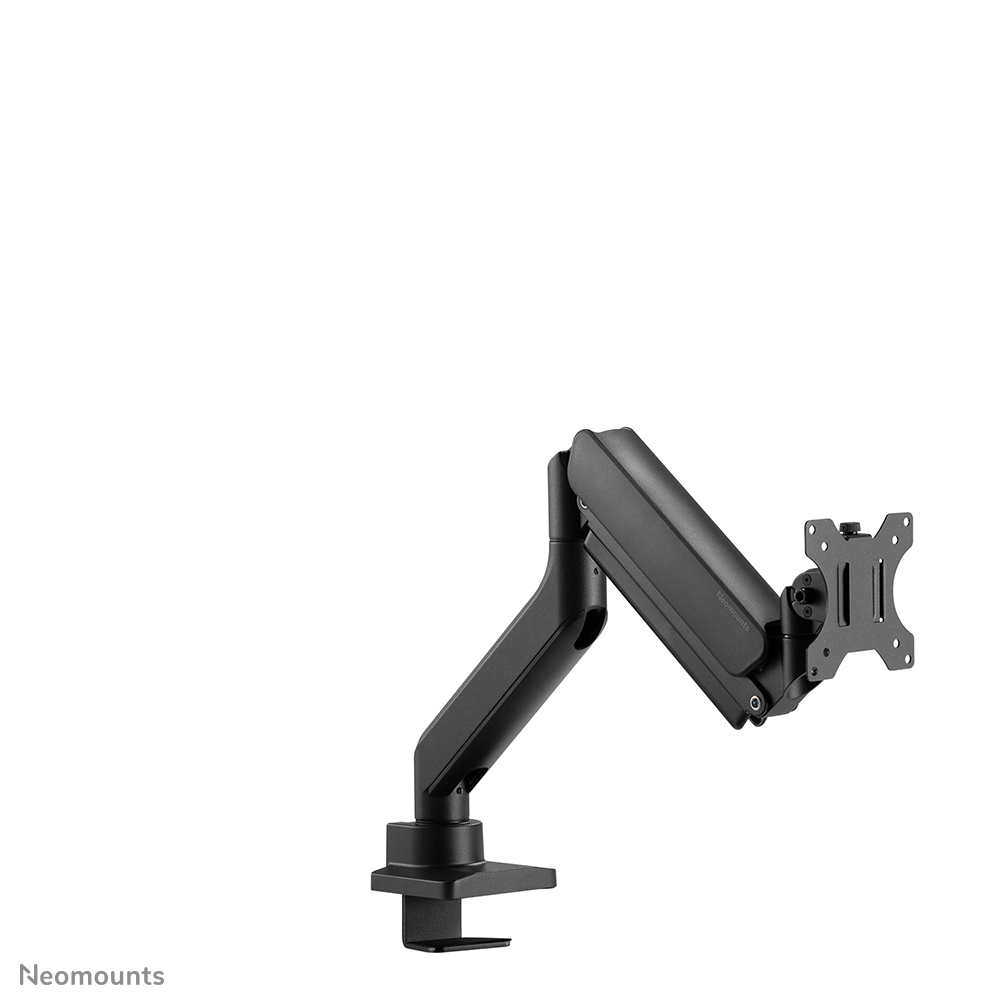

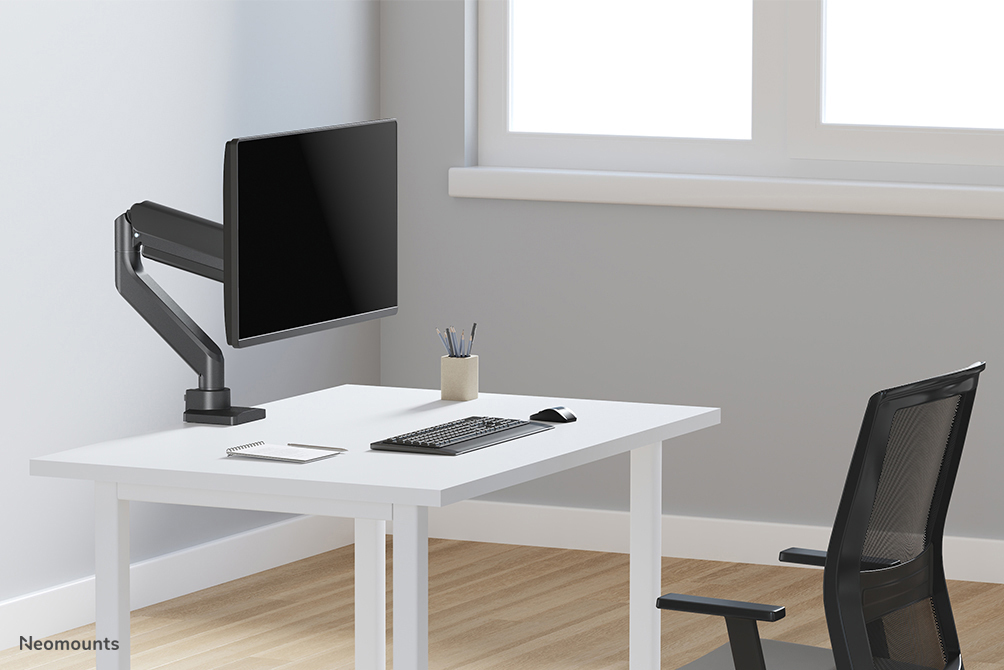

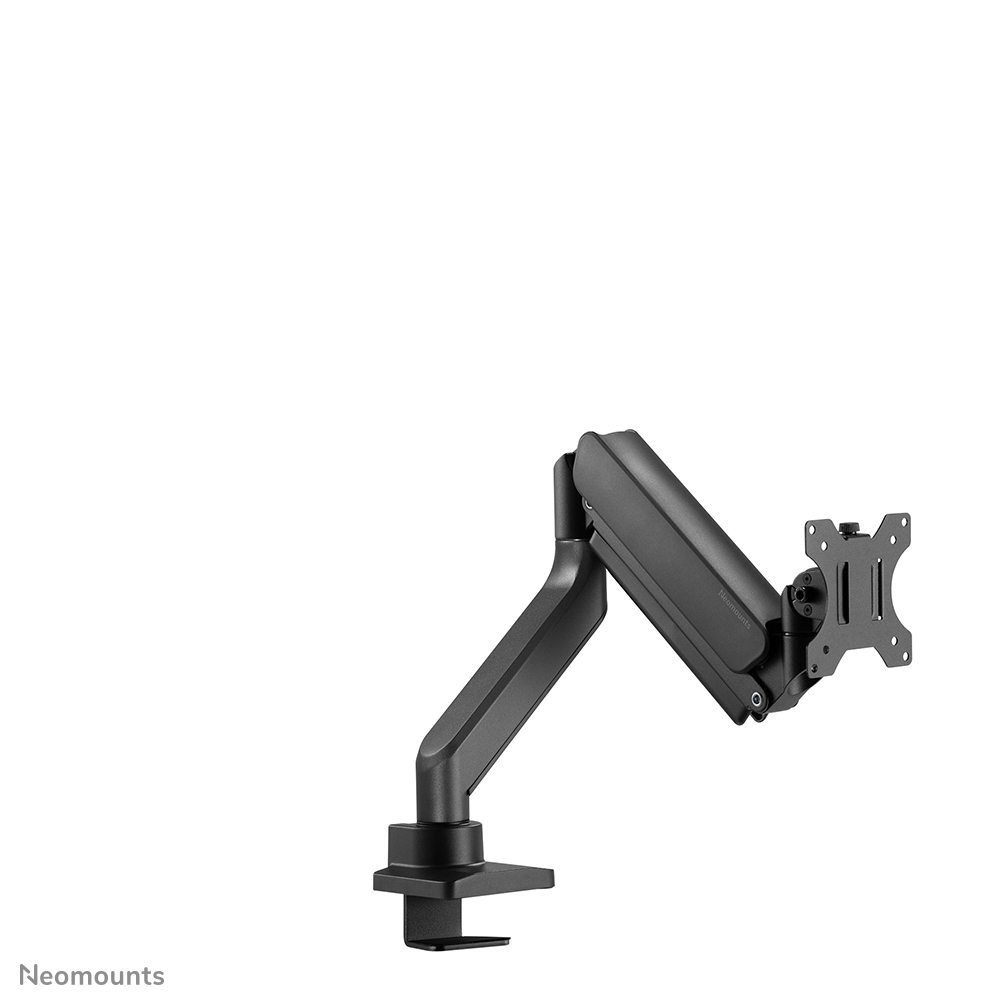

The Neomounts DS70-450BL1 NEXT Core is a full motion desk mount for one flat screen up to 42" with a maximum weight capacity of 15 kg. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (0-51,4 cm), to create the perfect working position.

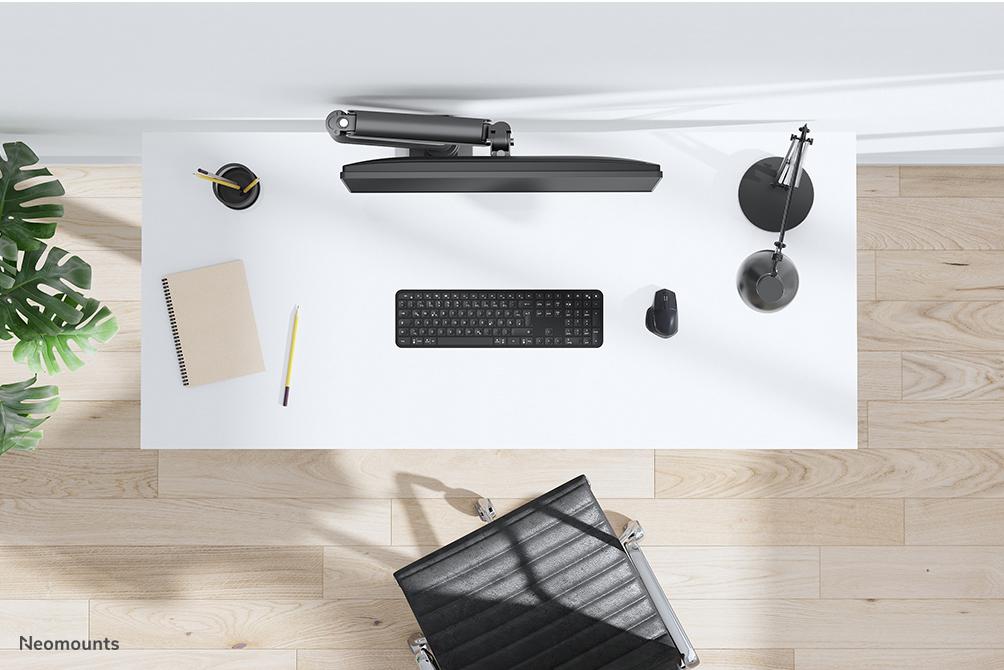

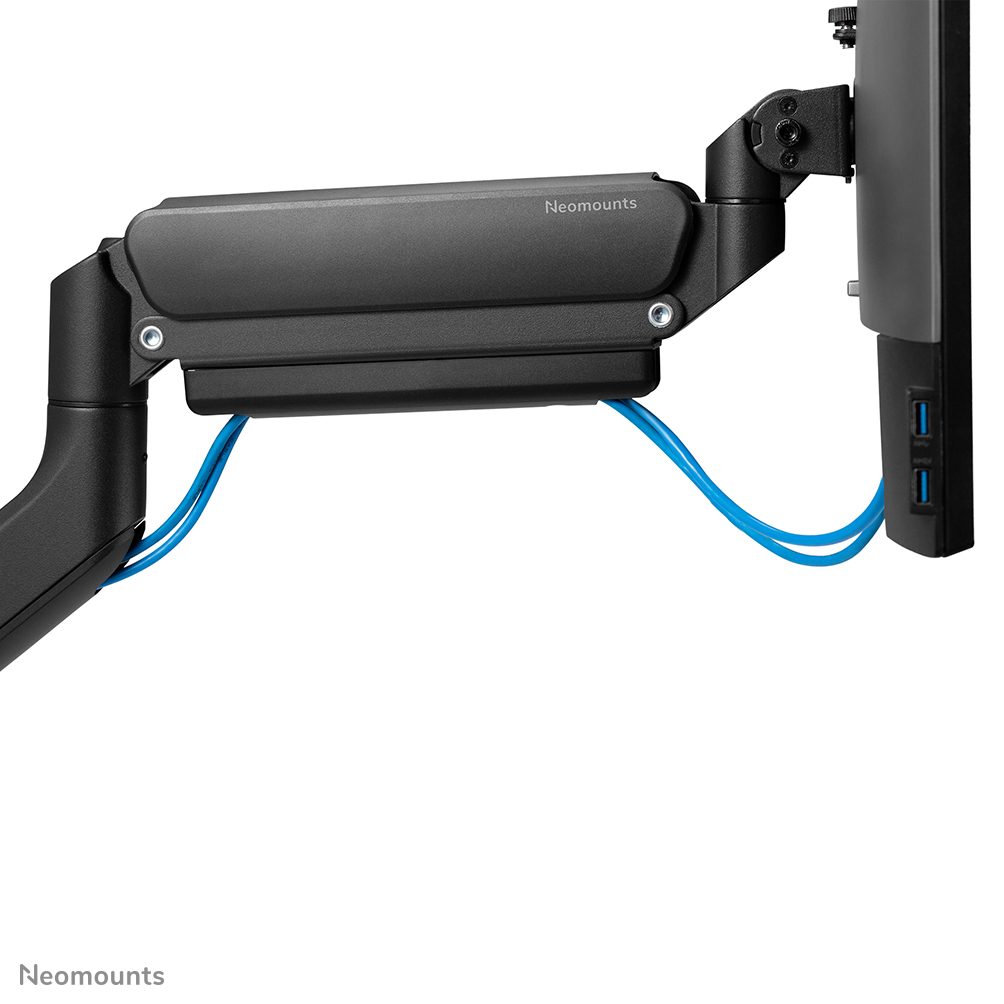

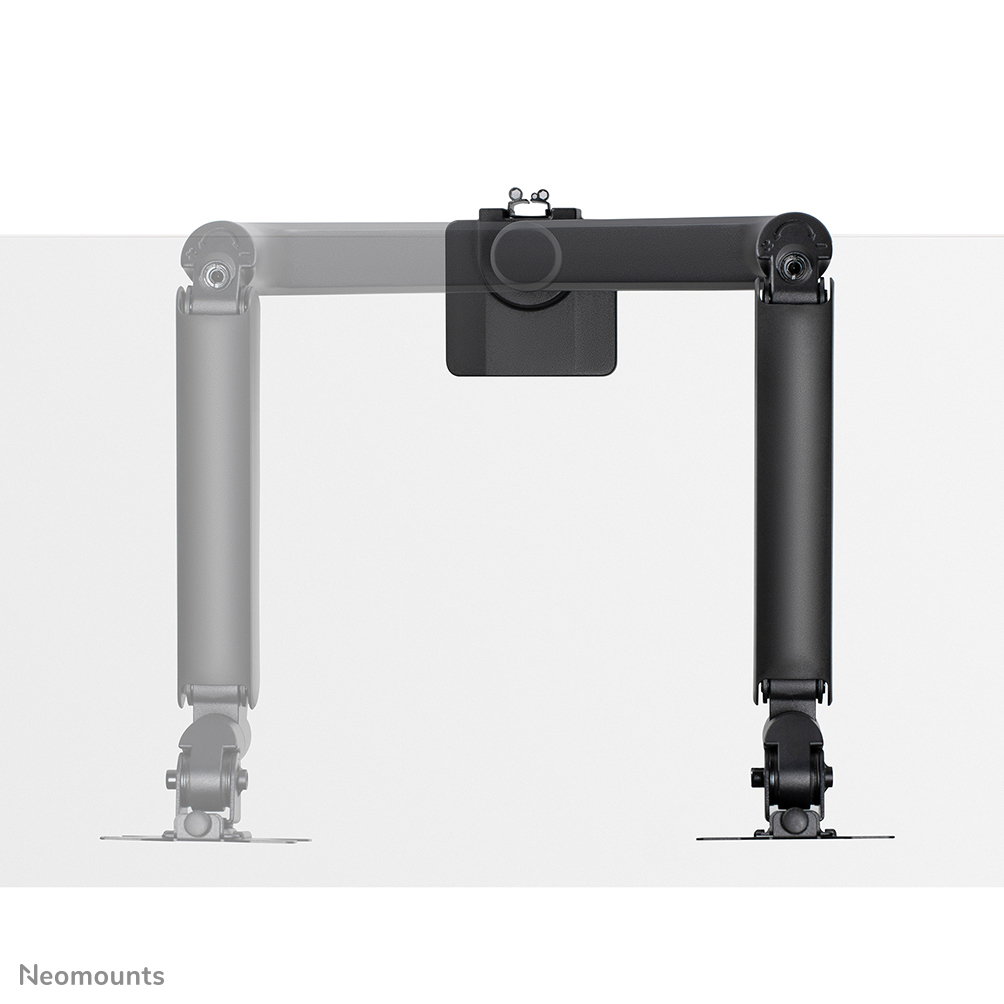

The DS70-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

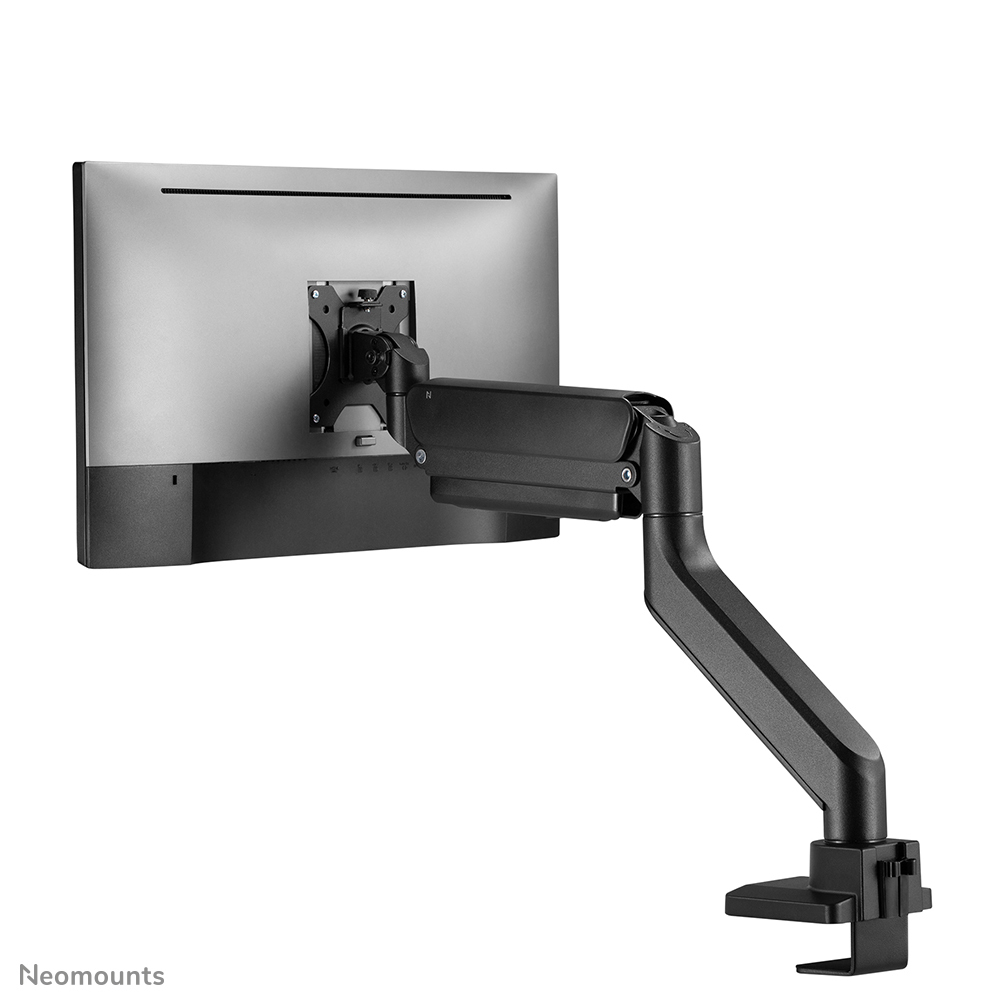

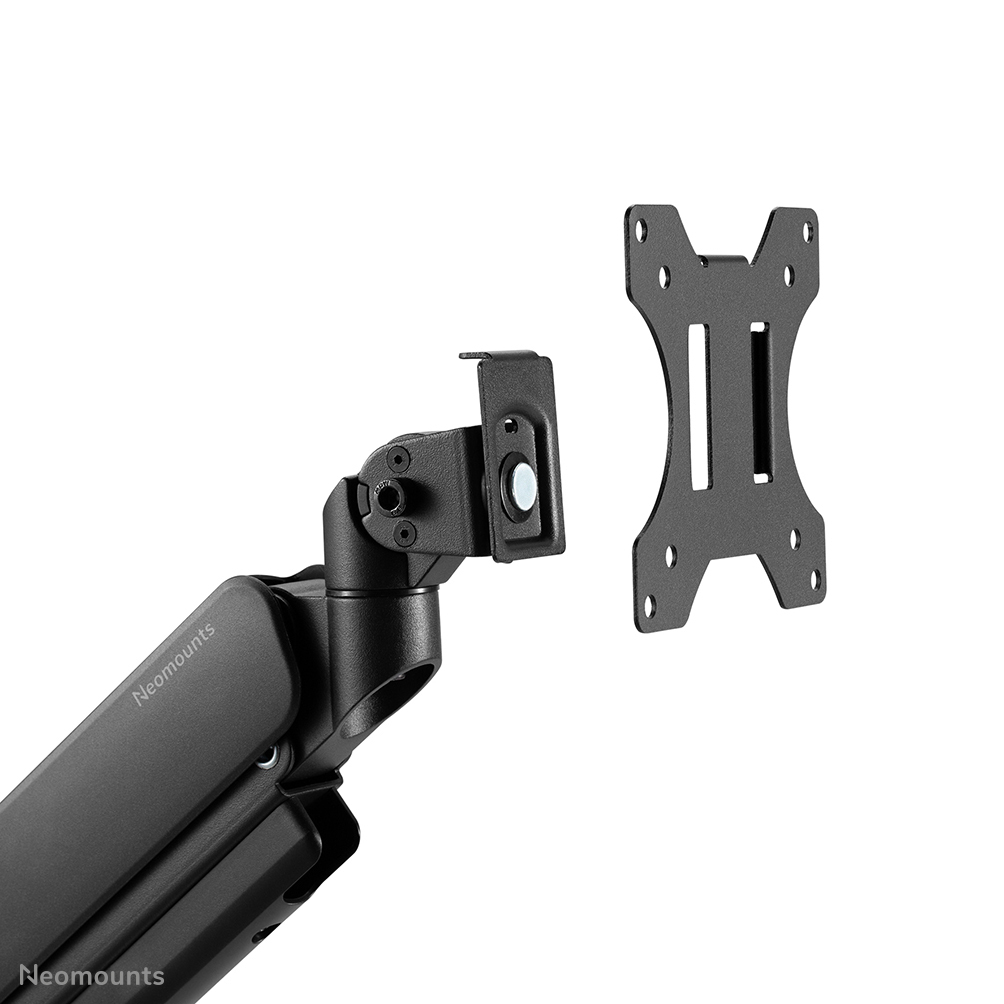

The DS70-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

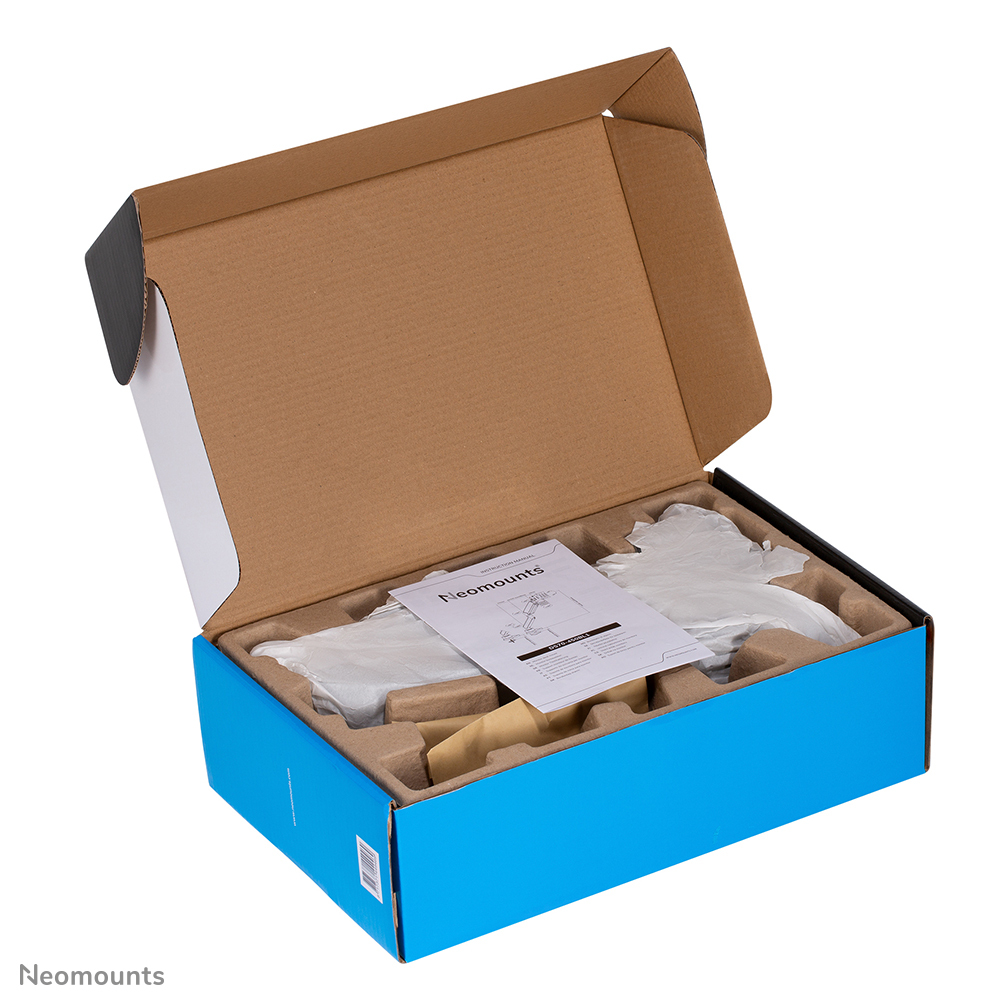

The inner packaging of the NEXT Core is plastic free and made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.

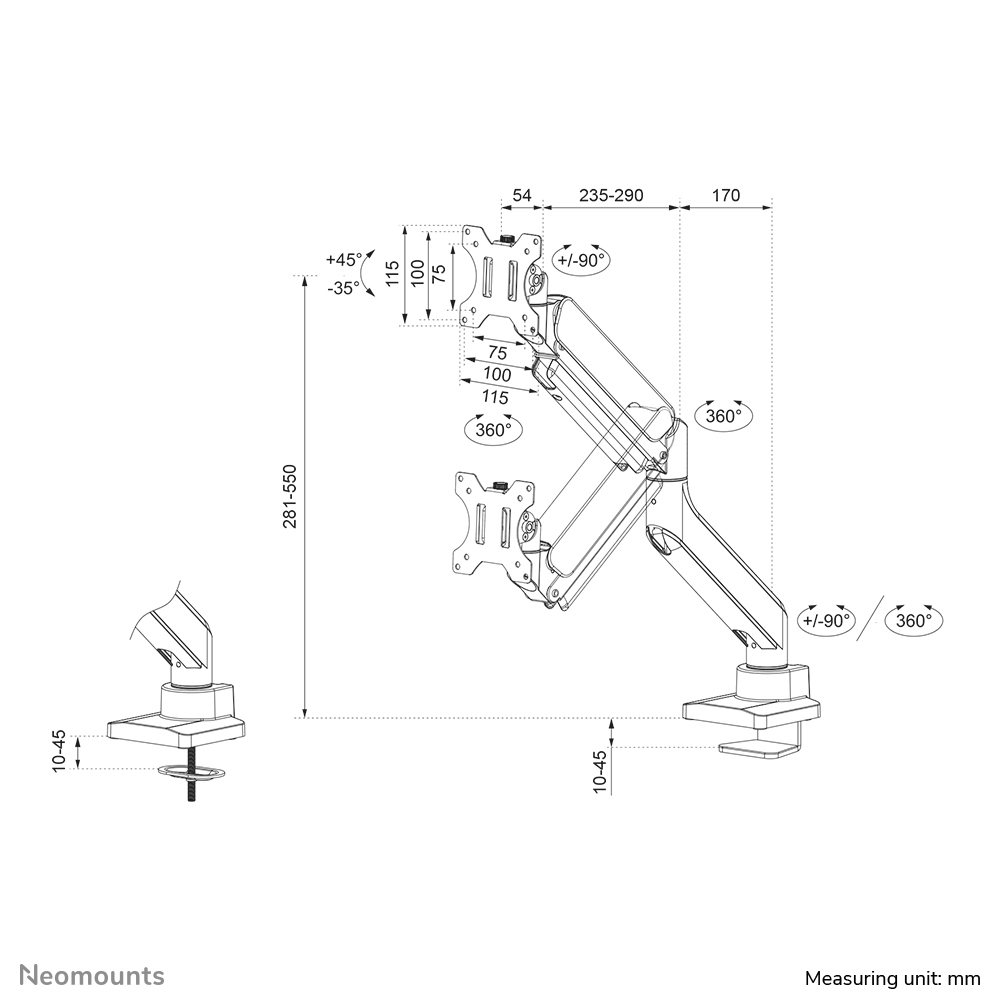

| Mounting | |
| Maximum weight capacity | 15 kg |
| Minimum screen size | 43.2 cm (17") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 15 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 11 kg |
| Maximum screen size | 106.7 cm (42") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Distance to the wall (min) | 10.8 cm |
| Distance to the wall (max) | 56.8 cm |
| Ergonomics | |
| Height adjustment | Yes |

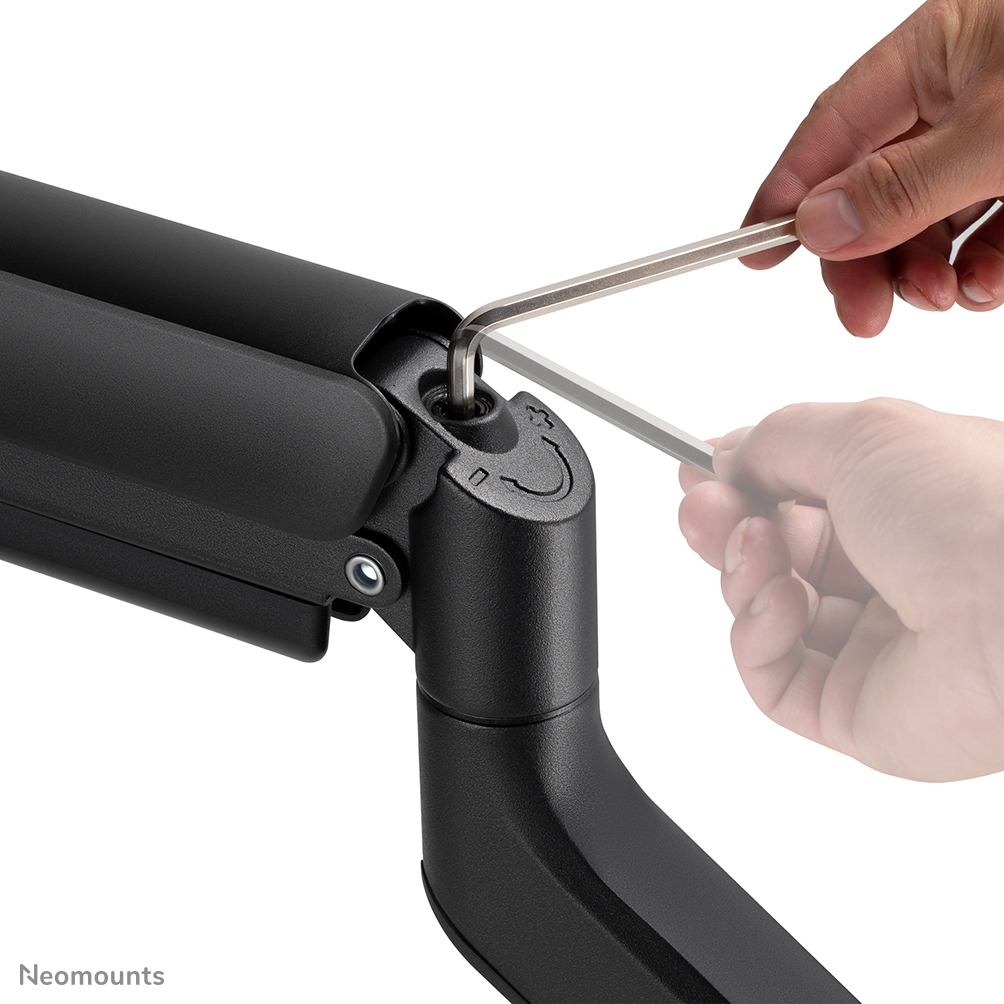

| Height adjustment type | Gas spring |
| Height adjustment range | 261 - 555 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 54 - 511 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45ø |
| Swivelling | Yes |
| Swivel angle | 180ø |
| Swivel angle range | -90 - 90ø |
| Rotating | Yes |
| Angle of rotation | 360ø |
| Pivot angle | -180 - 180ø |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 568 mm |
| Height | 653 mm |
| Weight | 3.98 kg |
| Packaging data | |
| Package width | 280 mm |
| Package depth | 127 mm |
| Package height | 445 mm |
| Package net weight | 5.4 kg |
| Package weight | 5.1 kg |
| Packaging content | |
| Mounting kit | Yes |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 920 mm |
| Warranty period | 5 year(s) |
| Technical details | |
| Doesn't contain | Plastic |
| Logistics data | |
| Master (outer) case width | 460 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 580 mm |
| Master (outer) case gross weight | 20.5 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 18.4 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 64 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
