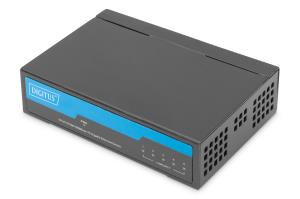

Gigabit Desktop PoE af/at 8-Port Switch 10/100/1000Mbps, 135W PoE Power Budget, metall housing
ITCurry #: M9237047 | Article #: DN-95340-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Network Switch with integrated Power over Ethernet (PoE) solution for an optimal, cost effective and fast integration in small or medium-sized networks
- Thanks to the PoE function, no additional power supply unit is required for the connected devices
- Minimize cabling for wireless APs, IP telephones, and any other PoE capable device
- Fanless design – perfect for office environments and meeting rooms
- Gigabit Ethernet Speed
- PoE power budget: 131 Watts
The DIGITUS 8-Port Gigabit Desktop Switch with eight Power over Ethernet ports, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network. Moreover, the fanless design of the Switch ensures soundless operation, which makes this device the perfect solution for office environments and meeting rooms.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3at |
| 10G support | No |
| VLAN support | No |
| Data transmission | |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Vandal-proof | No |
| Suitable for outdoor use | No |
| Power | |
| Power consumption (max) | 135 W |
| Power protection features | Over voltage, Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 135 W |
| Other features | |
| Ethernet interface type | Gigabit Ethernet |
| Weight & dimensions | |
| Width | 250 mm |
| Depth | 115 mm |
| Height | 39 mm |
| Weight | 670 g |
| Packaging content | |
| Cables included | DC |
| Manual | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package width | 165 mm |
| Package depth | 100 mm |
| Package volume | 4537.5 cmü |
| Package weight | 1.6 kg |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
