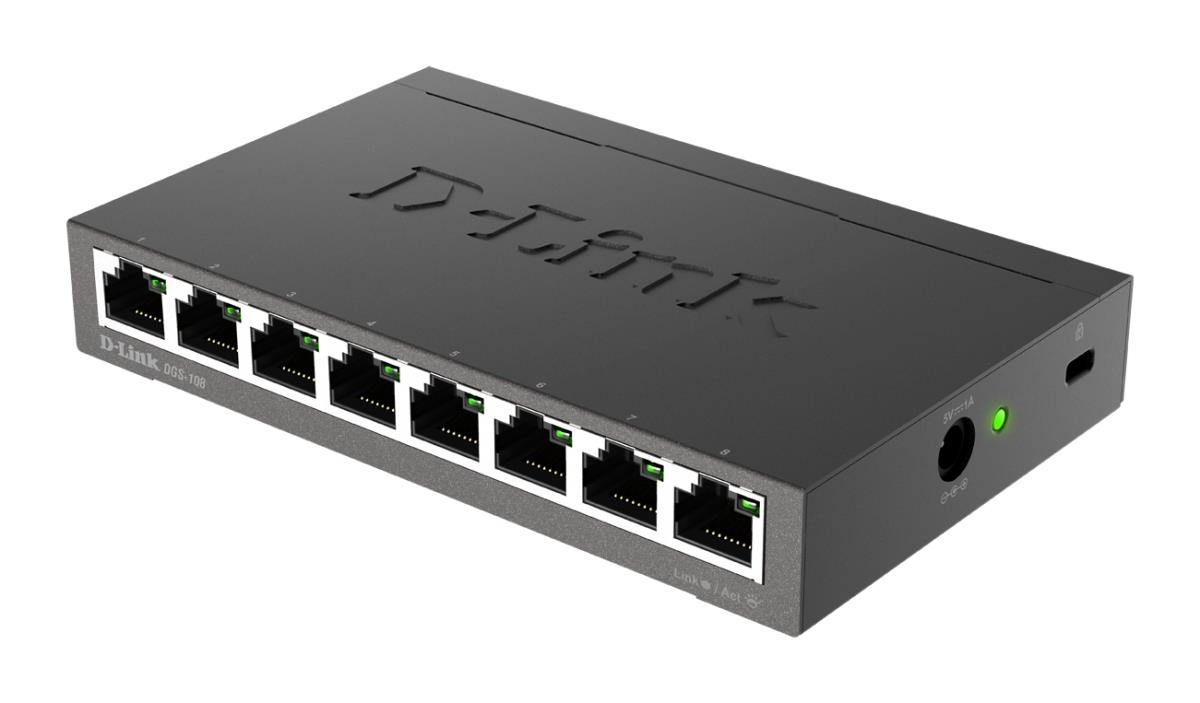

Desktop Switch Gigabit Dgs-108 8-port 10/100/1000 Metal Housing
ITCurry #: 12133872 | Article #: DGS-108/E-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Effortless Gigabit Networking

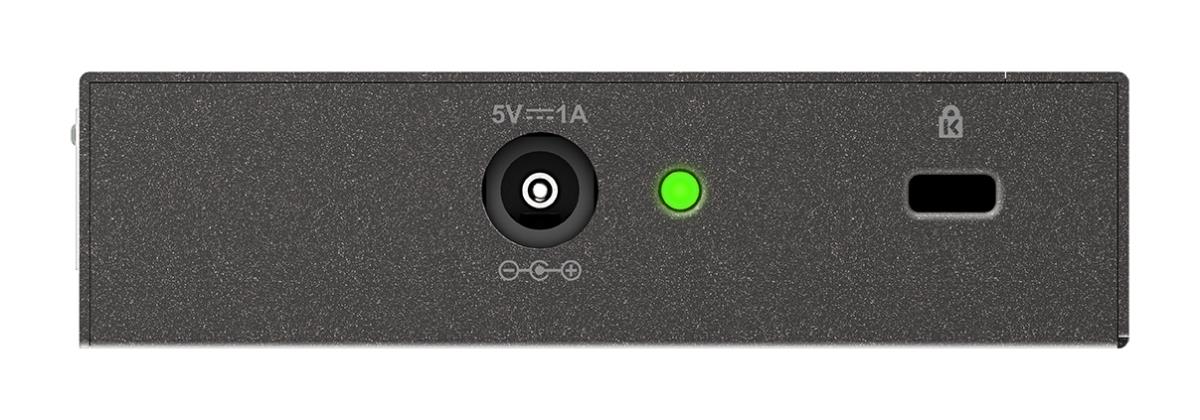

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-108 8 Port Gigabit Switch is ideal for transferring files quickly. Featuring easy access front Ethernet ports with two color LED indicators per port to quickly distinguish link status. The switch supports IEEE 802.1p QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch incorporates a Kensington Security Slot on the rear panel allowing users to securely fasten the unit to a table or desk.
Think Green
The DGS-108 is a plug-and-play networking switch that offers D-Link’s Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which detects when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and only using as much power as is necessary. Working together these features drastically reduce power consumption and heat dissipation, resulting in extended life and substantial cost savings.
Environmentally Friendly
The DGS-108 Gigabit switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. Built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter all in a recyclable packaging making this product truly environmental friendly.
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 16 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link, Power, Yes |
| Performance | |
| Mean time between failures (MTBF) | 2053751 h |
| Power | |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 4.5 W |
| Other features | |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 162 x 102 x 28 mm |
| Connectivity technology | Wired |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | 10 - 70 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 9.548 BTU/h |
| Weight & dimensions | |
| Weight | 440 g |
| Certificates | |
| Certification | FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
