5x1 HDMI Switch. 4K/60Hz HDCP 2.3
ITCurry #: M9239321 | Article #: DS-55332-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Extend your TV/monitor with additional HDMI connections – Switch conveniently between the signal sources without replugging
- Switch conveniently between 5 signal sources via remote control, on the device itself or via automatic recognition.
- Additional HDMI connections for your output device - 5 signal sources via just 1 HDMI connection/cable on the screen
- Power supply via Micro USB cable (included)
- Max. resolution: 4K/60Hz
- Video bandwidth: 18 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.2
- Supports Consumer Electronic Control (CEC)
- Supports Deep Color (36-bit)
- HDMI 2.0

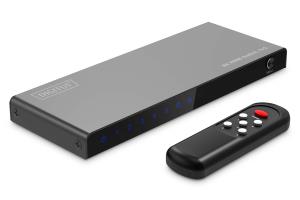

The DIGITUS® 4K HDMI Switch, 5x1 offers additional HDMI connections for your output display - 5 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter. Switch conveniently between the signal sources via remote control, on the device itself or via automatic recognition. Perfectly suited for use with wall installation of TV - only a HDMI cable is required to connect the sources.
| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI version | 2.0 |
| HDMI in | 5 |
| Number of HDMI outputs | 1 |
| USB port type | Micro-USB |
| DC-in jack | Yes |
| Features | |
| Material | Metal |
| Product colour | Black |
| Consumer Electronics Control (CEC) support | Yes |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| LED indicators | Status |
| Maximum resolution | 3840 x 2160 pixels |
| Cable length | 0.75 m |
| HD type | 4K Ultra HD |
| Colour depth | 36 bit |
| Dolby technologies | DTS, Dolby Digital |
| HDCP version | 2.3 |
| Power | |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Width | 62 mm |
| Depth | 160 mm |
| Height | 14 mm |
| Weight | 205 g |
| Packaging data | |
| Package width | 123 mm |
| Package depth | 179 mm |
| Package height | 45 mm |
| Package weight | 380 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Remote control included | Yes |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Warranty | |
| Base Warranty | Non Non |
