Extender Dpe-302ge 2-port Gigabit Poe 10/100/1000base-t Half/full-duplex Black
ITCurry #: 12134617 | Article #: DPE-302GE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power-over-Ethernet connection to be extended up to 500 m1. It is designed to supply data and PoE power to devices such as PTZ IP cameras or 802.11ac wireless access points over extended distances. With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.
Powers More Devices Over Longer Distances
The DPE-302GE offers a plug-and-play PoE solution, capable of transmitting up to 10 to 28 W of output power. It allows connection of up to two devices over a maximum distance of 500 m by daisy-chaining up to 4 units. With support for PoE/PoE+ and Gigabit speeds, the DPE-302GE is designed to be deployed in situations with high bandwidth requirements, over long distances.
Flexible Deployment

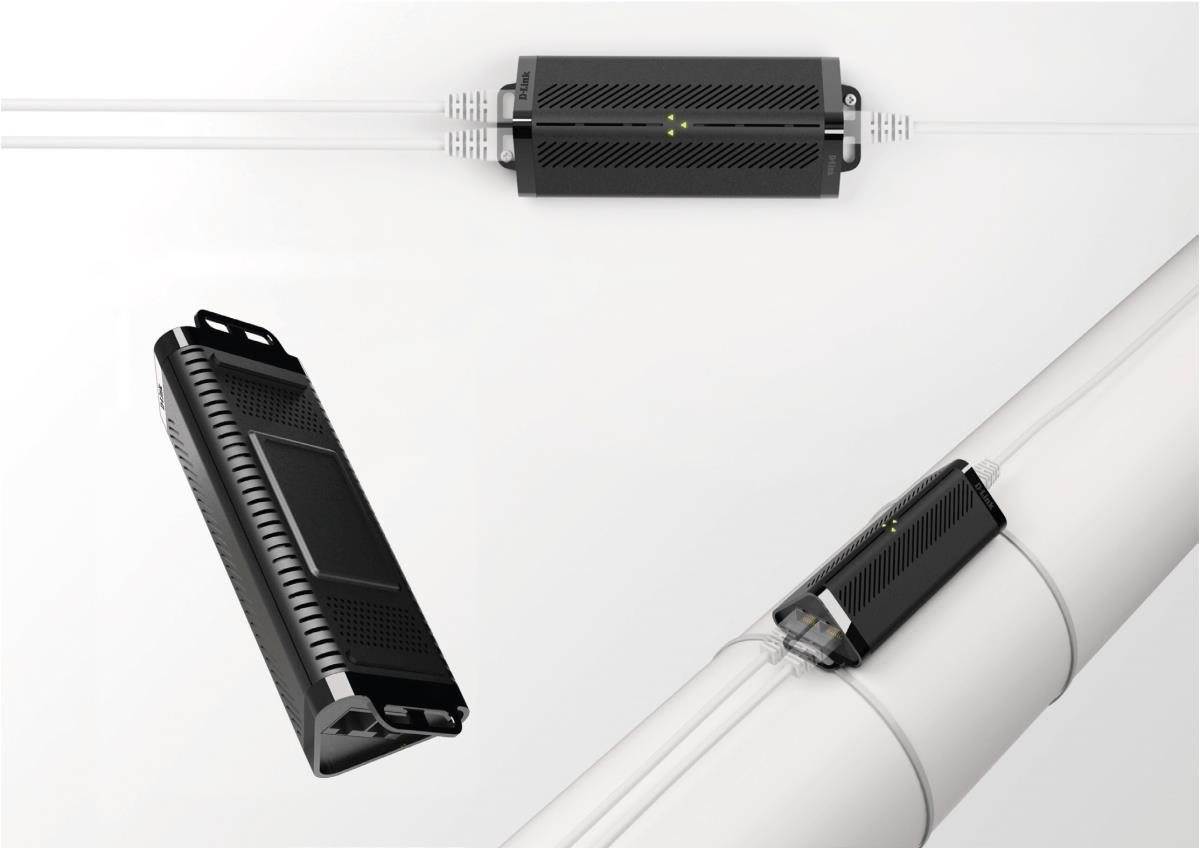

The DPE-302GE is powered by consuming only a very small fraction of PoE power. Combined with three flexible methods of mounting (built-in magnet, screw anchors, and Velcro), the DPE-302GE can be deployed virtually anywhere. This PoE solution frees network devices from the restrictions of power availability by removing the need for a local power source. The DPE-302GE has built-in 4 kV surge protection and is also capable of operating in temperatures of up to 60 °C (140 °F), allowing it to be deployed in harsher environments.
Reliable Connectivity
The DPE-302GE 2-Port Gigabit PoE Extender intelligently communicates the maximum available current with a Powered Device (PD). This protection feature keeps the device safe from damage by preventing it from powering on in case there is not enough current. This safety feature can also automatically disable the port in the event of an electrical short circuit.
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Duplex system | Full, Half |
| Features | |
| LED indicators | PoE |
| Certification | CE FCC LVD/CE IC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 3.05 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 60 øC |
| Operating temperature (T-T) | -40 - 85 øF |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | 5 - 95 øC |
| Weight & dimensions | |
| Weight | 154 g |
| Dimensions (WxDxH) | 155 x 60 x 40 mm |
| Packaging data | |
| Package width | 109 mm |
| Package depth | 217 mm |
| Package height | 59 mm |
| Package weight | 292 g |
| Logistics data | |
| Shipping (inner) case length | 45.4 cm |
| Shipping (inner) case width | 31.2 cm |
| Shipping (inner) case height | 24.5 cm |
| Shipping (inner) case net weight | 6 kg |
| Products per shipping (inner) case | 20 pc(s) |
| Pallet gross weight (air) | 301.4 kg |
| Master (outer) cases per pallet (air) | 42 pc(s) |
| Products per pallet (air) | 840 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 185 cm |
| Pallet gross weight (sea) | 301.4 kg |
| Master (outer) cases per pallet (sea) | 42 pc(s) |
| Products per pallet (sea) | 840 pc(s) |
| Pallet height (sea) | 185 cm |
| Shipping (inner) case gross weight | 6.67 kg |
| Harmonized System (HS) code | 85044095 |
| Warranty | |
| Base Warranty | Non Non |
