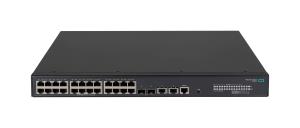

FlexNetwork 5140 24G PoE+ 4SFP+ 1-slot HI Switch, 24 fixed 10/100/1000Base-T POE+ Ports
ITCurry #: 1171ZY95 | Article #: R9L63A-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The HPE Networking Comware Switch Series 5140 HI delivers high availability and scalability at the access layer of medium and large enterprise campus networks. These switches offer high speed connectivity and flexibility with 10GbE uplinks and combo ports. Support for add-on modules increases capacity with additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware-based MACsec for end-to-end encrypted security, and dual redundant power supplies with Energy Efficient Ethernet for improved power saving. This switch series also includes Smart MC at no additional cost and, when combined with Intelligent Management Center (IMC), provides both embedded network management and enhanced network visibility.
What is new supporting point:
Industry standard AES 256 MACsec support, higher MAC port binding and link group capacity for improved end-to-end network security. 2-port AES256 MACsec module R9L65A has been introduced.
Smart Management Center (SmartMC) provides centralized network management and maintains dispersed network edge devices at no additional cost.
Intelligent Network Quality Analyzer (iNQA) measures network packet loss performance and provides visibility into real-time application performance and health.
Gigabit Ethernet access switch with intermediate L3 routing features such as OSPF V2 / OSPF V3 / VRRP / VRRPE / Routed Ports, RIP, 10GbE uplinks, and PoE+ models for voice, video, and wireless.
DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
Higher port switching capacity, forwarding performance and port line rate granularity, 2X dynamic ARP, 2X IPv6 unicast routing, and introduction of IGMP proxy for improved performance.
| Management features | |
| Switch type | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 288 Gbit/s |
| Throughput | 180 Mpps |
| MAC address table | 32000 entries |
| Packet buffer memory | 4 MB |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Performance | |
| Physical stacking (units) | 9 |
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Power | |
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| DC input voltage | 48 - 60 V |
| Power consumption (typical) | 928 W |
| Power consumption note | 928 W (dual AC) 720W (PoE power) |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 720 W |
| Other features | |
| Latency | < 5 microseconds (64-byte packets) |
| Memory and processor | 2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash |
| I/O ports | 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+), 4 SFP+ 10GbE ports 1 port expansion module slot |
| Performance management | HPE IMC; Smart MC, command-line interface; web browser; SNMP manager |
| Weight (imperial) | 3.85 kg (8.49 lbs) |
| Dimensions (W x D x H) (imperial) | 43.7 x 439.9 x 460 mm (1.72 x 17.3 x 18.1") |
| Weight & dimensions | |
| Width | 43.7 mm |
| Depth | 440 mm |
| Height | 460 mm |
| Weight | 3.8 kg |
| Warranty | |
| Base Warranty | Non Non |
