DisplayPort 1.4 Cable - 8k 60hz Hdr10 - Ultra Hd 4k 120hz Video - Dp 1.4 Cable / Co 1ft (30cm)
ITCurry #: 7564C093 | Article #: DP14VMM1F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Enable reliable 8K 60Hz video using this DisplayPort 1.4 Cable

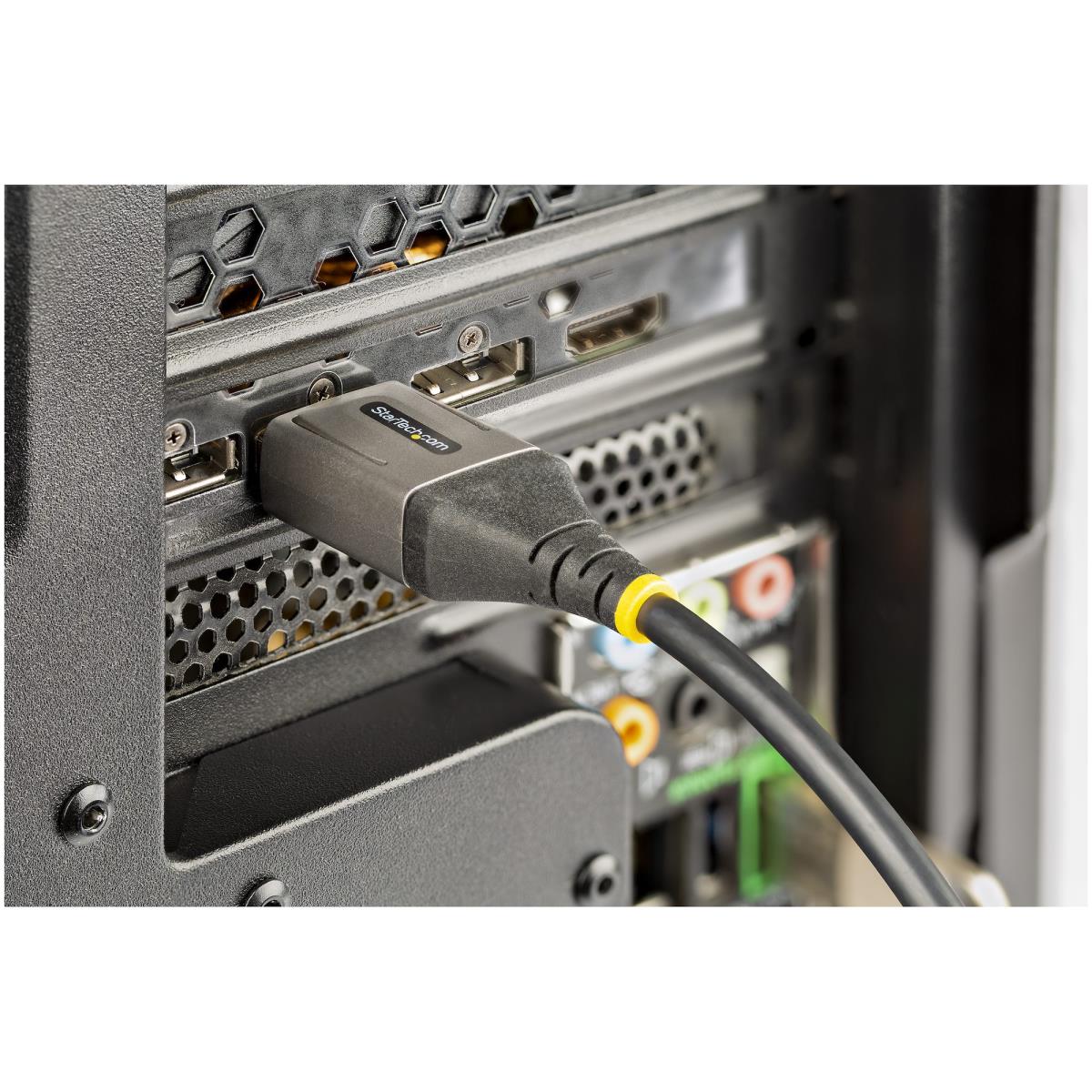

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.
The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

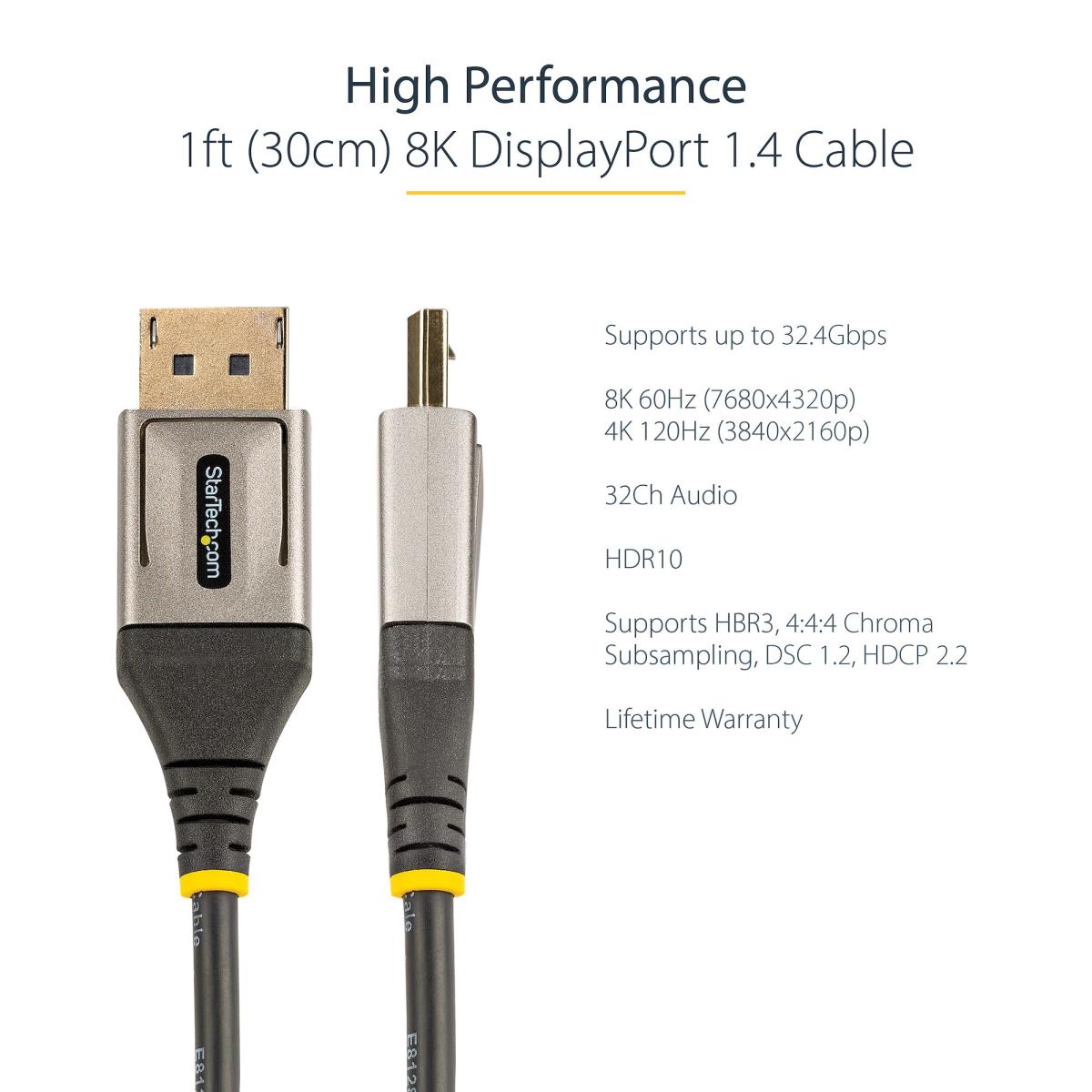

Full-Featured DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features:
• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
• High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Display Stream Compression 1.2 (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• 32 Uncompressed Digital Audio Channels
Cable Key Features
Aluminum-mylar foil with braided shielding improve EMI protection

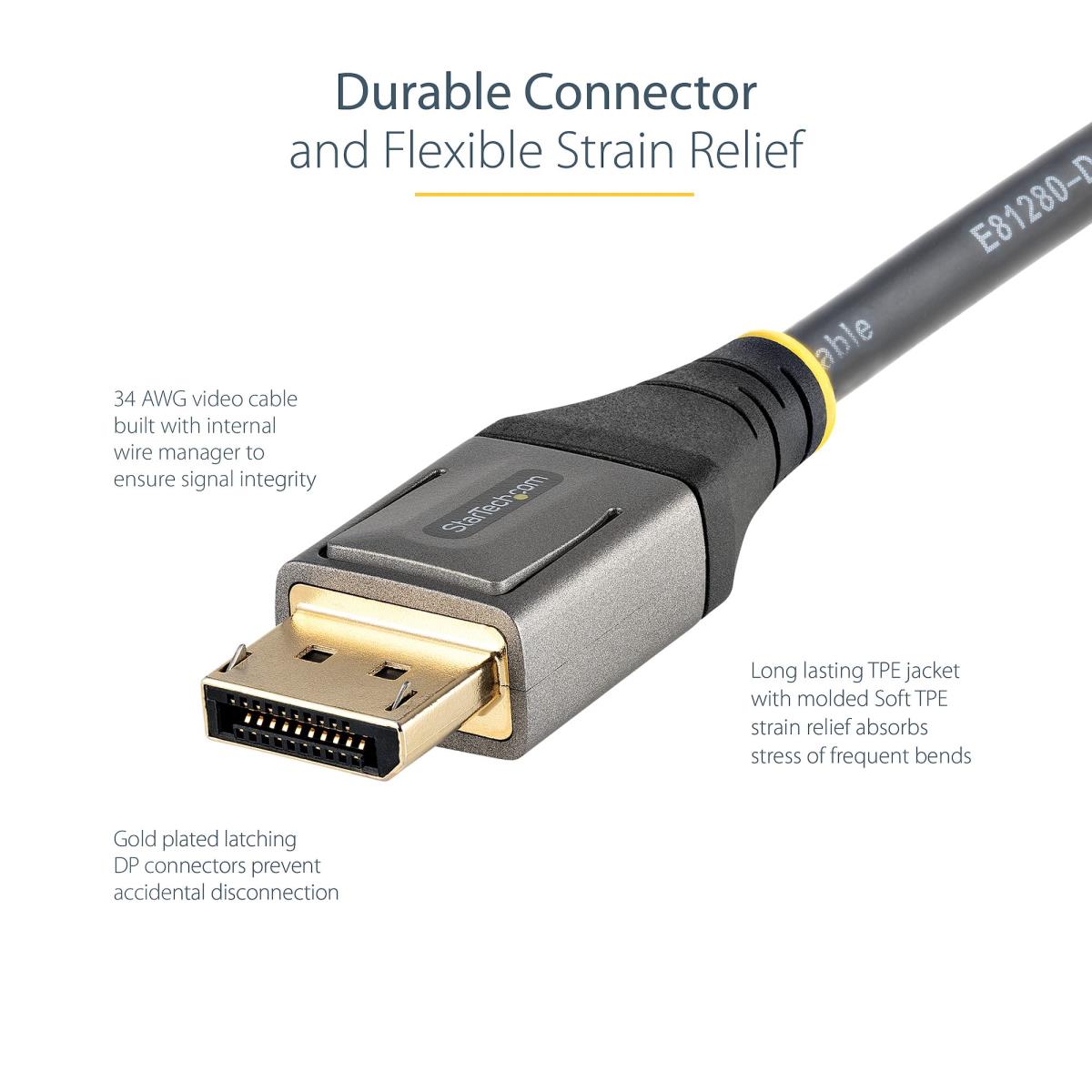

Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)
Connector Key Features

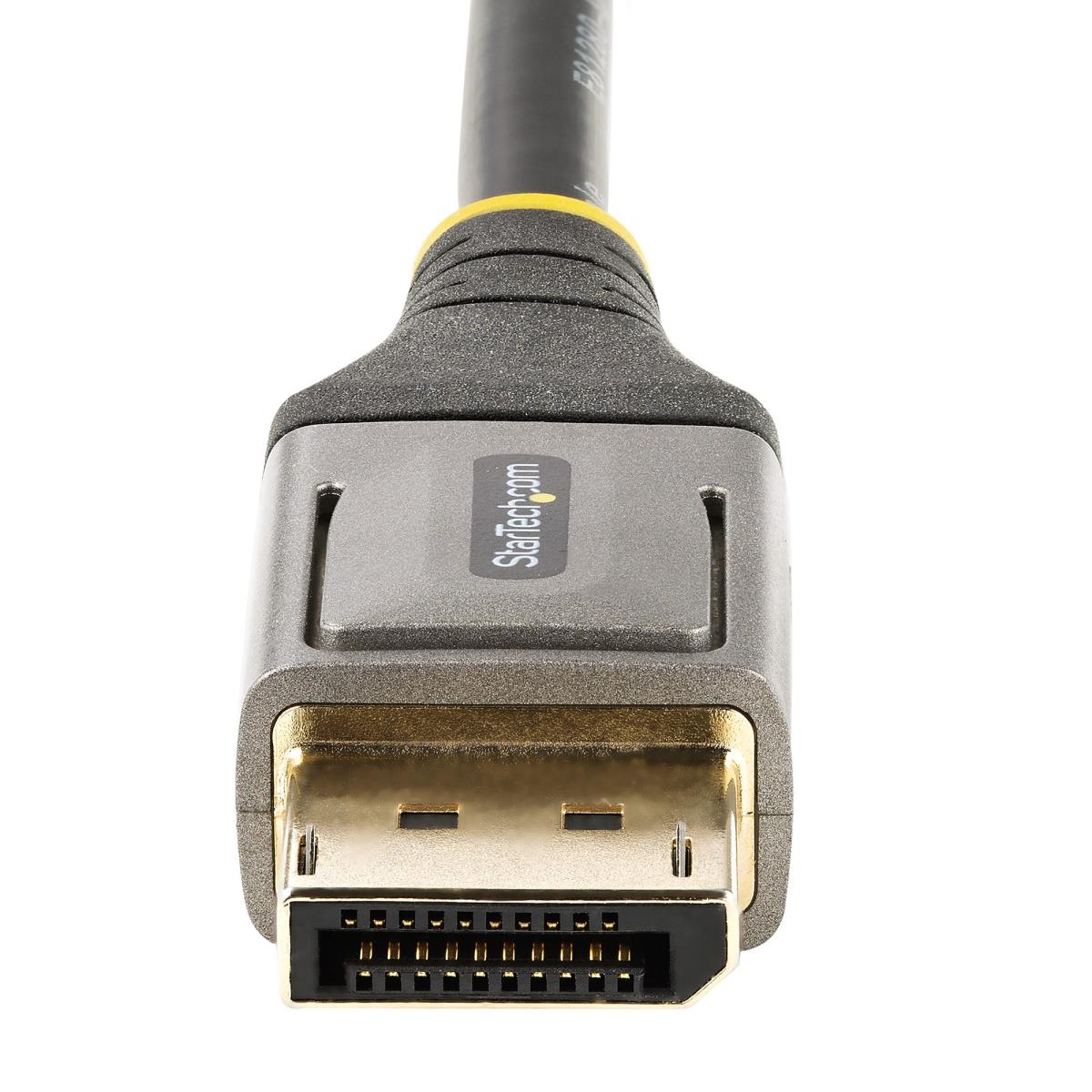

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation
Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability

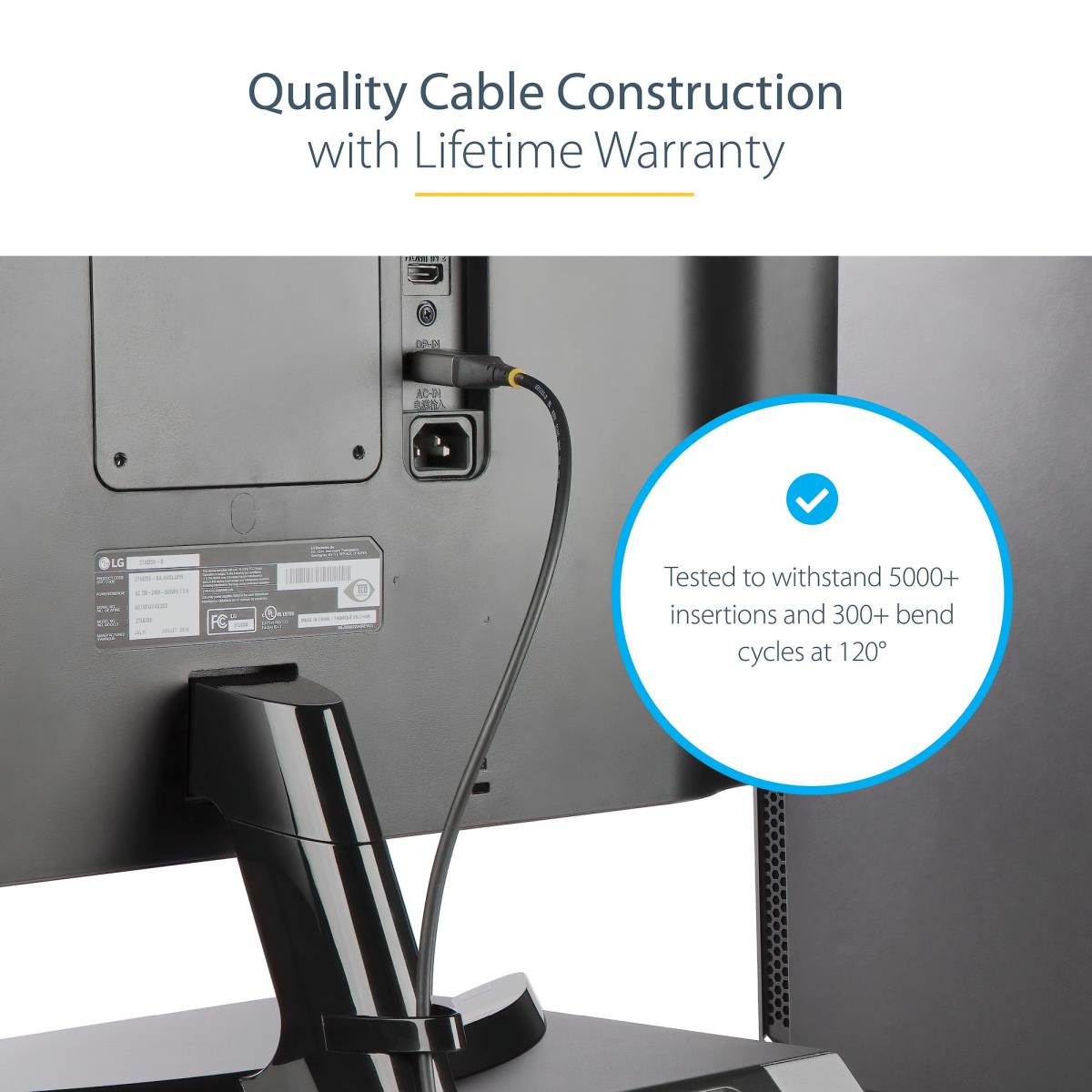

Tested to withstand 5000+ insertions
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
DP14VMMV1M is backed by a StarTech.com lifetime warranty.
The StarTech.com Advantage
| Features | |

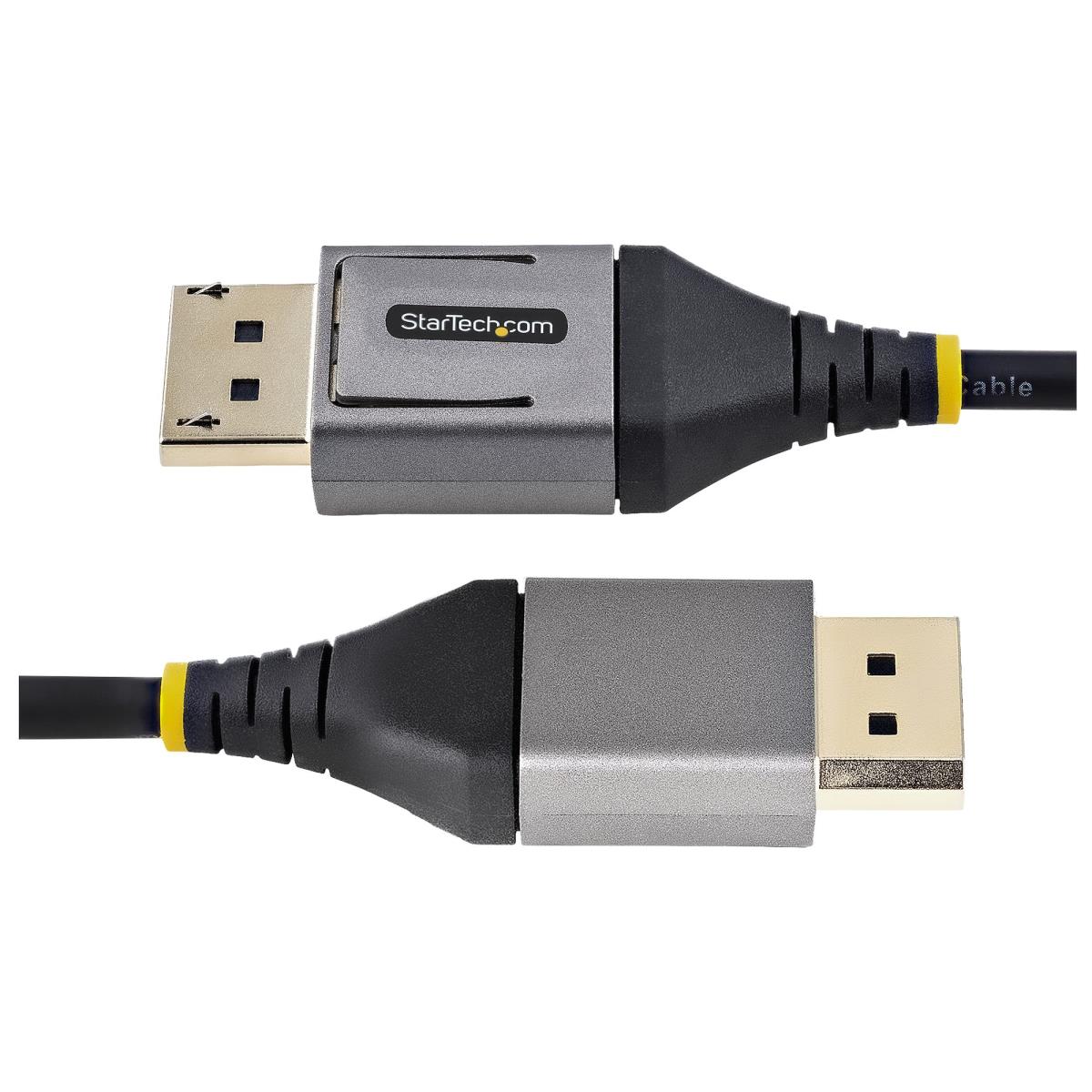

| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum refresh rate | 120 Hz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |

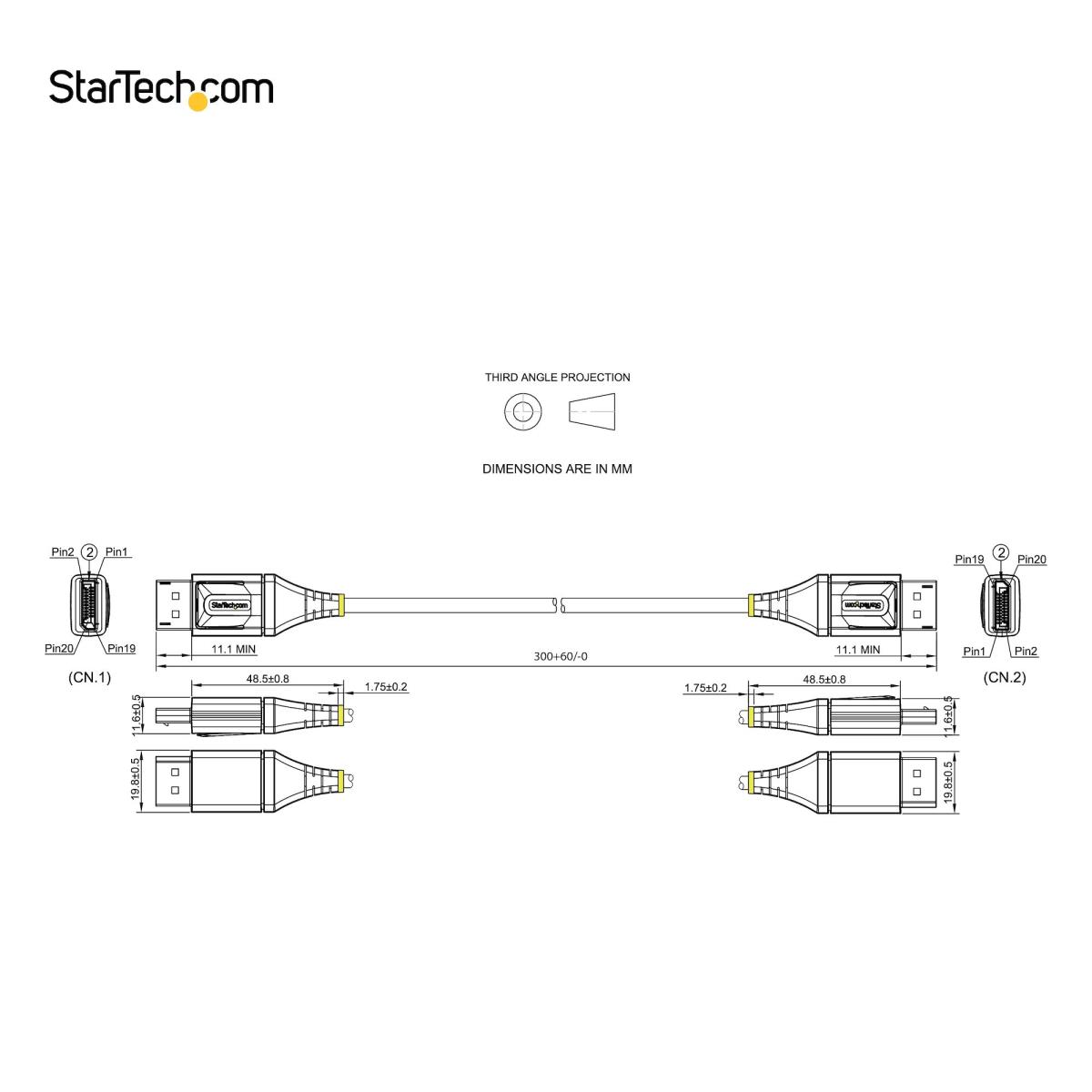

| Cable length | 0.3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black, Grey |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Thermoplastic elastomer (TPE) |
| AWG wire size | 34 |
| High Dynamic Range (HDR) supported | Yes |
| Bandwidth | 32400 MB/s |
| Channels quantity | 32 channels |
| HBR3 support | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
| Colour sampling | 4:4:4 |
| Packaging data | |
| Cable diameter | 4.5 mm |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 20 mm |
| Package weight | 18.5 g |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 150 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
