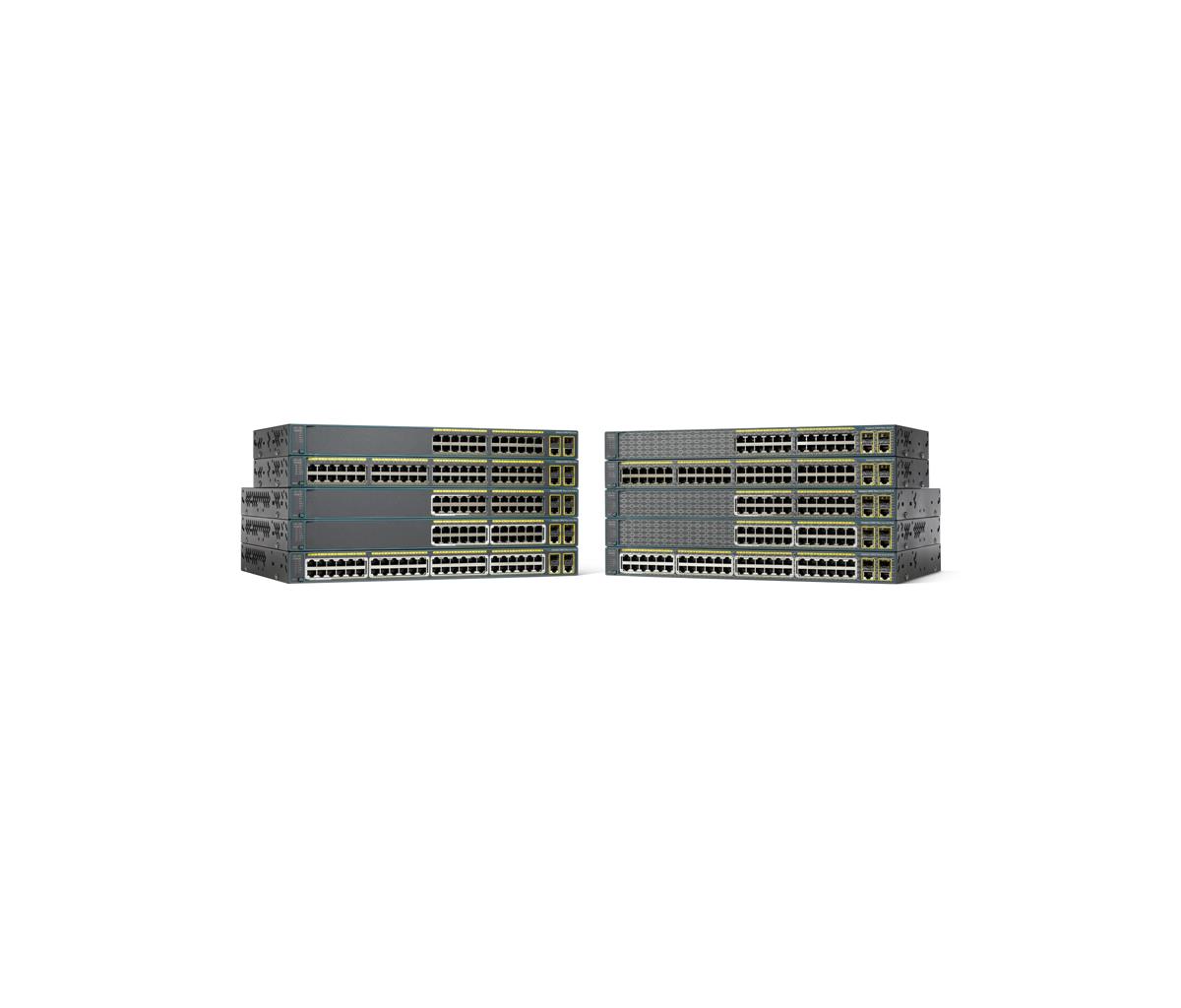

Catalyst 2960-plus 48tc-l - Switch - Managed - 48 X 10/100 + 2 X Combo Gigabit Sfp - Rack-moun
ITCurry #: 0918AA22 | Article #: WS-C2960+48TC-L-RF-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Lower TCO with Fast Ethernet Access
Deliver reliable and cost-effective network access with the Cisco Catalyst 2960-Plus Series of Fast Ethernet switches. These products provide the operational benefits of Cisco IOS Software for a range of wired access applications, including branches, conventional office workspaces, and infrastructure networks.
Cisco Catalyst 2960-Plus Switches feature:
- IEEE 802.3af-compliant Power over Ethernet (PoE)
- LAN Base or LAN Lite Cisco IOS Software feature set
- SmartOperations tools that simplify deployment and reduce the cost of network administration
- Cisco EnergyWise technology to manage energy consumed by connected devices
- An enhanced limited lifetime hardware warranty (E-LLW), providing next-business-day replacement
Applications and Benefits
The Cisco Catalyst 2960-Plus Series provides cost-effective, enterprise class Ethernet switching for:
- Branch offices, remote sites, and retail locations
- Conventional desktop workspaces
- Building infrastructure, physical security, and other nontraditional access applications
- Benefits of the 2960-Plus include:
- Robust quality of service (QoS) that prioritizes voice and critical business applications
- Flexible security features that can limit access to the network and mitigate threats
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| Number of VLANs | 255 |
| Data transmission | |
| Throughput | 10.1 Mpps |
| Jumbo frames support | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
| Electromagnetic compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, EN55024, CISPR24, EN300386, KN24 |
| Performance | |
| Memory type | DRAM |
| Internal memory | 128 MB |
| Flash memory | 64 MB |
| Noise level | 33 dB |
| Mean time between failures (MTBF) | 623000 h |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 30.2 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width | 450 mm |
| Depth | 242 mm |
| Height | 44 mm |
| Weight | 3.6 kg |
| Warranty | |
| Base Warranty | Non Non |
