Cat2960plus48 10/100poe+2 1000bt+2sfp Lanlite Rema
ITCurry #: 0918U154 | Article #: WS-C2960+48PSTS-RFFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
1853.65
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Lower TCO with Fast Ethernet Access

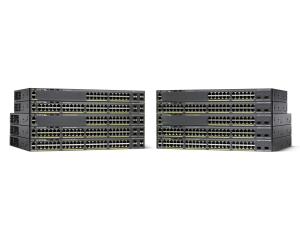

Deliver reliable and cost-effective network access with the Cisco Catalyst 2960-Plus Series of Fast Ethernet switches. These products provide the operational benefits of Cisco IOS Software for a range of wired access applications, including branches, conventional office workspaces, and infrastructure networks.
Management features | |
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Yes |
Web-based management | Yes |
MIB support | BRIDGE-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-MIB, CISCO-HSRP-EXT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB, IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, OSPF-MIB (RFC 1253), PIM-MIB, RFC1213-MIB, RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
Fast Ethernet (copper) ports quantity | 48 |
Gigabit Ethernet (copper) ports quantity | 2 |
SFP module slots quantity | 2 |
Fiber optic connector | SFP |
Console port | RJ-45 |
Power connector | AC-in jack |
Network | |
Networking standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
Copper ethernet cabling technology | 10BASE-T, 100BASE-T |
Full duplex | Yes |
Flow control support | Yes |
Link aggregation | Yes |
Broadcast storm control | Yes |
Rate limiting | Yes |
Auto MDI/MDI-X | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
VLAN support | Yes |
Number of VLANs | 64 |
Data transmission | |
Throughput | 13.1 Mpps |
MAC address table | 8000 entries |
Jumbo frames support | Yes |
Jumbo frames | 9018 |
Security | |
DHCP features | DHCP client, DHCP server |
IGMP snooping | Yes |
Security algorithms | 802.1x RADIUS |
MAC address filtering | Yes |
Static port security | Yes |
SSH/SSL support | Yes |
Multicast features | |
Multicast support | Yes |
Protocols | |
Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP |
Switching protocols | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 |
Design | |
Rack mounting | Yes |
Form factor | 1U |
Product colour | Black |
LED indicators | Yes |
Electromagnetic compatibility | 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A, EN55024, CISPR24, EN300386, KN24 |
Certification | UL, CAN/CSA, TUV/GS, CE, NOM, FCC, EN, AS/NZS, MIC, GOST, EMC |
Performance | |
Memory type | DRAM |
Internal memory | 128 MB |
Flash memory | 64 MB |
Noise level | 41 dB |
Mean time between failures (MTBF) | 181979 h |
Power | |
Power supply included | Yes |
Redundant power supply (RPS) support | Yes |
Number of power supply units | 1 |
AC input voltage | 120 - 230 V |
AC input frequency | 50 - 60 Hz |
Input current | 2 - 5 A |
Power consumption (typical) | 51.4 W |
Power consumption (max) | 460 W |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet (PoE) ports quantity | 24 |
Power over Ethernet (PoE) power per port | 7.7 W |
Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions | |
Operating temperature (T-T) | -5 - 40 øC |
Storage temperature (T-T) | -25 - 70 øC |
Operating relative humidity (H-H) | 10 - 95% |
Storage relative humidity (H-H) | 10 - 95% |
Operating altitude | 0 - 3000 m |
Non-operating altitude | 0 - 4000 m |
Weight & dimensions | |
Width | 450 mm |
Depth | 330 mm |
Height | 45 mm |
Weight | 5.4 kg |
Packaging data | |
Cables included | AC |
User guide | Yes |
Manual | Yes |
Warranty | |
Base Warranty | Non Non |
