Catalyst Compact 2960c-8tc-l - Switch - Managed - 8 X 10/100 + 2 X Shared Gigabit Sfp
ITCurry #: 0918AA55 | Article #: WS-C2960C-8TC-L-RFFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
352.26
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

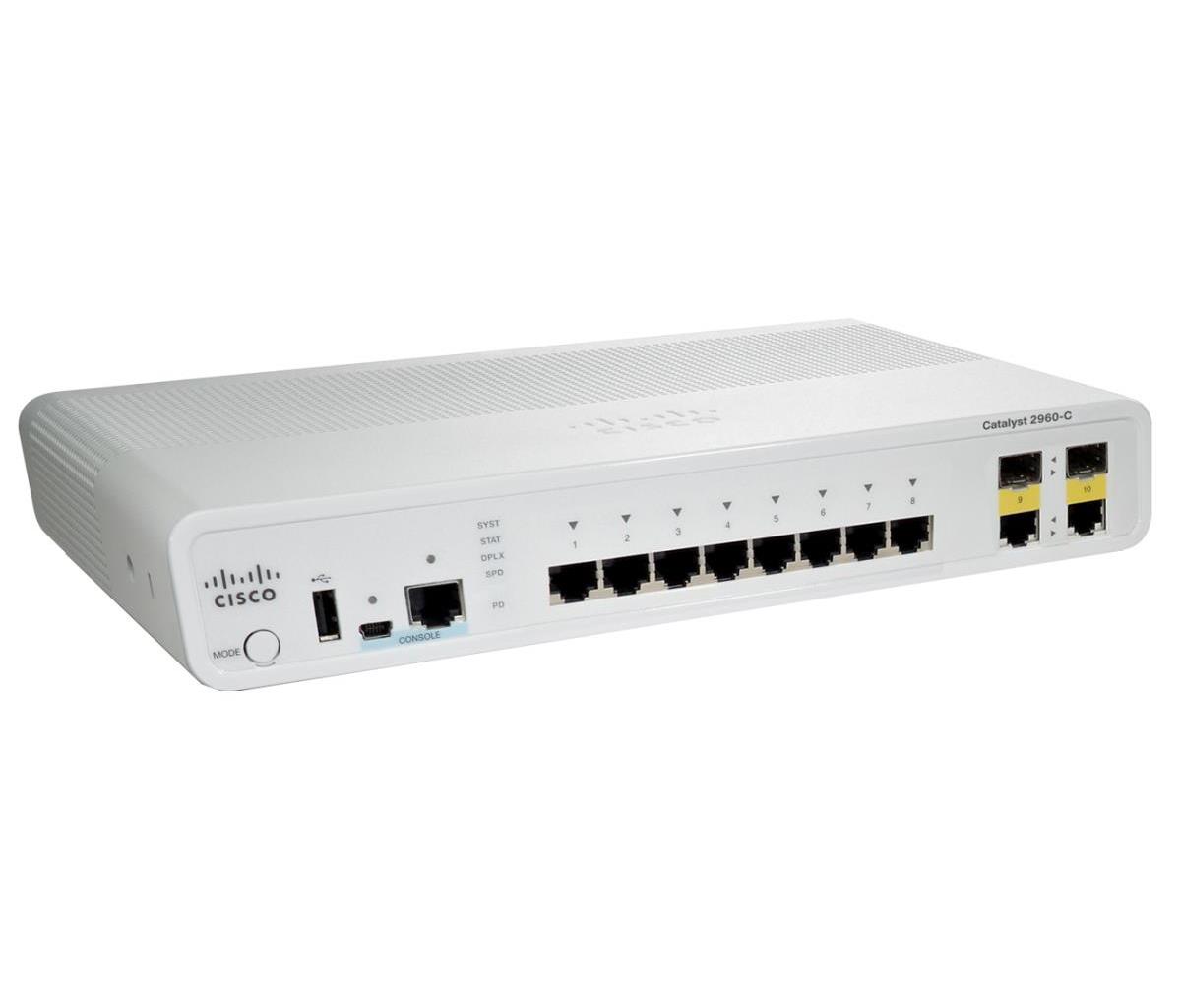

Catalyst 2960-C
Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | RMON-MIB, RMON2-MIB, Bridge-MIB, CDP-MIB, Entity-MIB, ENVMON-MIB, Flash-MIB, FTP-MIB, Image-MIB, IP-Stat-MIB, LAG-MIB, MAC-MIB, PAGP-MIB, Ping-MIB, QOS-MIB, Security-MIB, RTTMON-MIB, SMI-MIB, STP-MIB, Syslog-MIB, TC-MIB, TCP-MIB, UDLDP-MIB, VTP-MIB, Eth-MIB, PAE-MIB, IF-MIB, IP-MIB, TS-MIB, UDP-MIB, ePM MIB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Fiber optic connector | LC |
| Console port | RS-232 |
| USB 2.0 ports quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-TX |
| Full duplex | Yes |
| IP routing | Yes |
| Routing entries | 4000 |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Number of VLANs | 255 |
| Optical fiber | |
| Fiber ethernet cabling technology | 100BASE-BX, 100BASE-FX, 100BASE-LX, 1000BASE-LH, 1000BASE-LX, 1000BASE-SX, 1000BASE-ZX |
| Data transmission | |
| Throughput | 3.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9198 |
| Security | |
| DHCP features | DHCP server, DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS, SSH |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | IEEE 802.1x |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, LLDP, IGMP |
| Data link protocols | UDP, TFTP, IP, TCP, FTP |
| Supported network protocols | IP, IPv6, FTP, TFTP, UDP, ICMP, TCP, ARP, NTP, OSPFv2, BOOTP, Telnet |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| LED indicators | LAN, Link, Power, Yes |
| Performance | |
| Memory type | RDRAM |
| Internal memory | 128 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 516980 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 120 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.21 - 0.1 A |
| Power consumption (typical) | 11 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 45 øC |
| Storage temperature (T-T) | -25 - 70 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 4000 m |
| Heat dissipation | 38 BTU/h |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 213 mm |
| Height | 44.4 mm |
| Weight | 1.08 kg |
| Packaging content | |
| Cables included | DC |
| User guide | Yes |
| Manual | Yes |
| Certificates | |
| Certification | FCC, EN, CE, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST, ROHS, CLEI |
| Warranty | |
| Base Warranty | Non Non |
