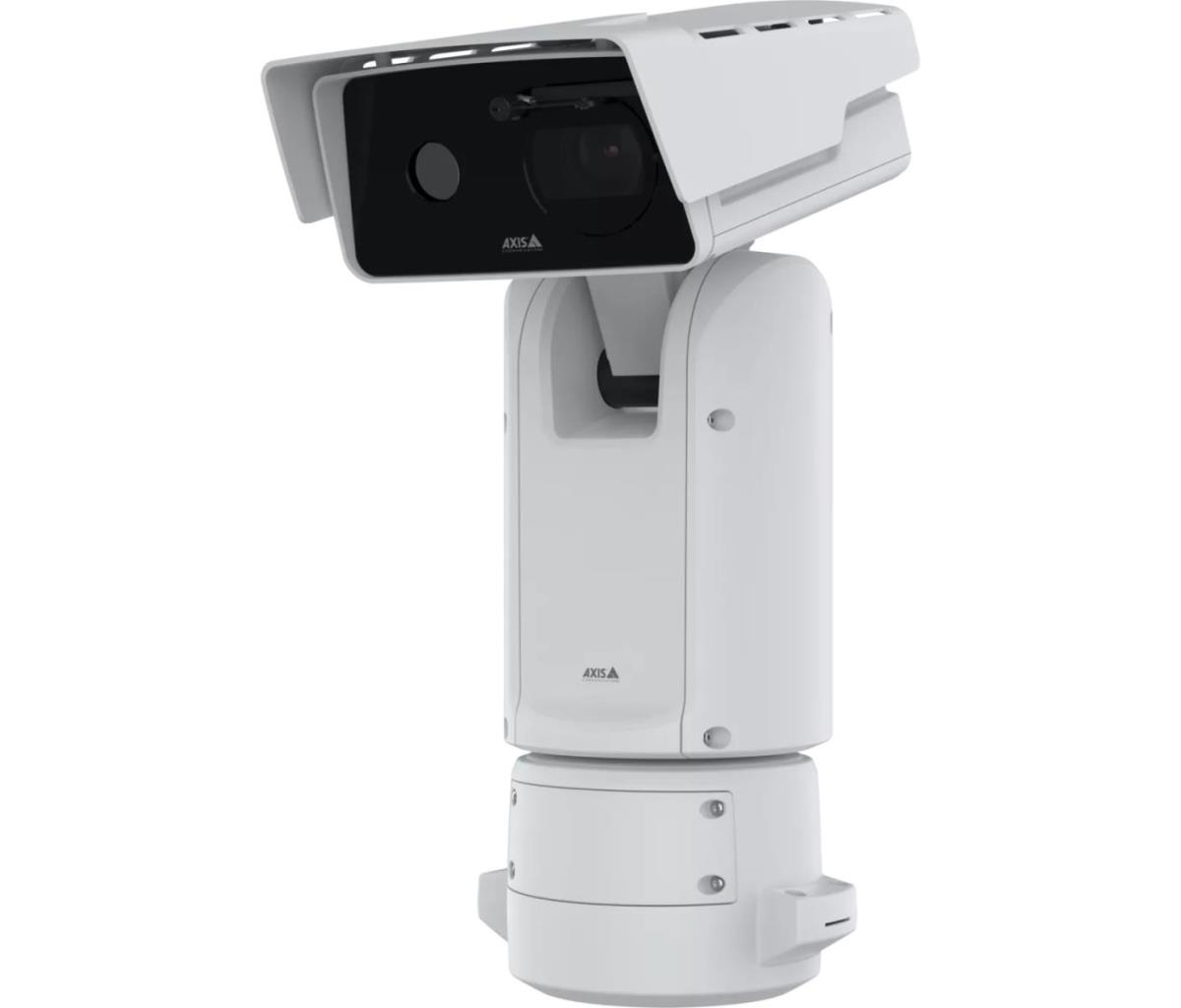

AXIS Q8752-E Mk II Bispectral PTZ Camera
Ideal for perimeter surveillance and border control, this bispectral camera offers reliable thermal detection and visual identification with 32x integrated optical zoom. It’s available in two versions with either 3x thermal zoom or without thermal zoom capabilities.
Always see what you need to see
AXIS Q8752-E Mk II gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Electronic image stabilization (EIS) on both channels ensures smooth video. Furthermore, Lightfinder 2.0 and Forensic WDR ensure true colors and great detail in challenging light.
Powerful analytics platform
This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. Featuring audio and I/O connectivity, you can integrate peripheral equipment, for instance a microphone to extend the value of your system. And edge-to-edge technology lets you connect, for instance, a horn speaker to enable audio alarms that deter, warn, and notify. What’s more, it’s built on a powerful analytics platform, so it’s easy to add Axis as well as custom-made 3rd party analytics.
Robust and secure
This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. With IP66, NEMA TS2, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E Mk II using fiber optic cabling to overcome distance and bandwidth limitations. With thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.
| Performance | |
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Thermal module | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Thermal sensitivity (NETD) | 50 mK |
| Certification | UL/cUL, CE, KC, VCCI, RCM |
| Design | |
| Form factor | Box |
| Product colour | Black, White |
| Housing material | Aluminium, Glass, Thermoplastic |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0.01 lx |
| Vertical field of view (thermal module) | 12.8ø |
| Horizontal field of view (thermal module) | 17ø |
| Lens viewing angle, horizontal | 58.5ø |
| Lens viewing angle, vertical | 35ø |
| Tilt angle range | -90 - 45ø |
| Tilt speed | 65 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 120 ø/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Number of Privacy masking areas | 32 |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Number of lenses | 1 |
| Focal length range | 4.3 - 137.6 mm |
| Auto focus | Yes |
| Maximum aperture number | 4 |
| Minimum aperture number | 1.4 |
| Fixed focal length | 35 mm |
| Closest focusing distance | 31 m |
| Aperture number (thermal module) | 1.2 |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system | 1-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 2000 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
| Security | |
| Video motion detection | Yes |
| Privacy protection | Yes |
| Pixel counter | Yes |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 25 W |
| Power consumption (max) | 185 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 229 mm |
| Depth | 360 mm |
| Height | 581 mm |
| Weight | 14.9 kg |
| Sustainability | |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Wiper included | Yes |
| Other features | |
| Doesn't contain | PVC |
| Warranty | |
| Base Warranty | Non Non |
