Q8742-e 35mm 30 Fps 24v Network Camera
ITCurry #: 13834999 | Article #: 0828-001-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

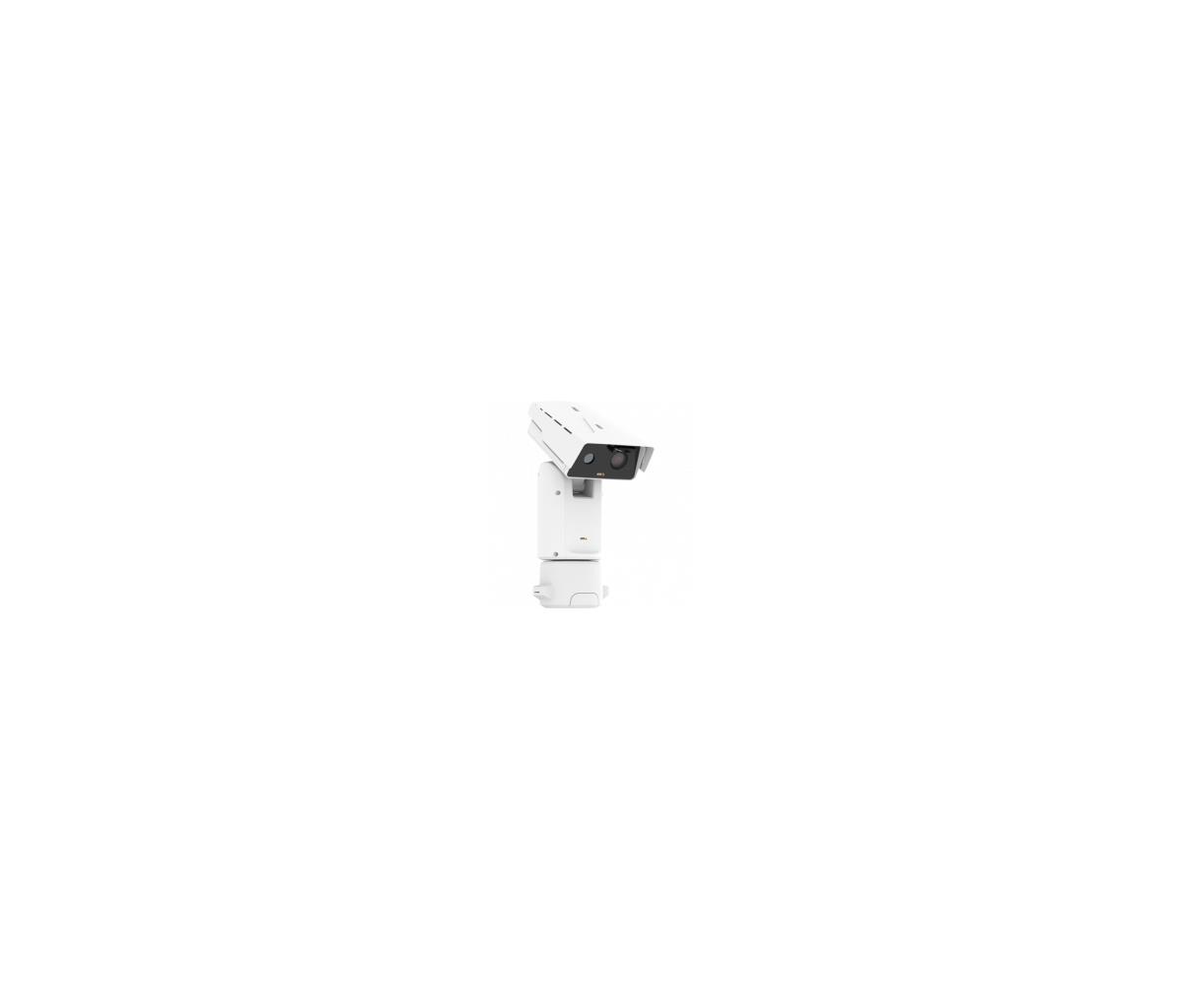

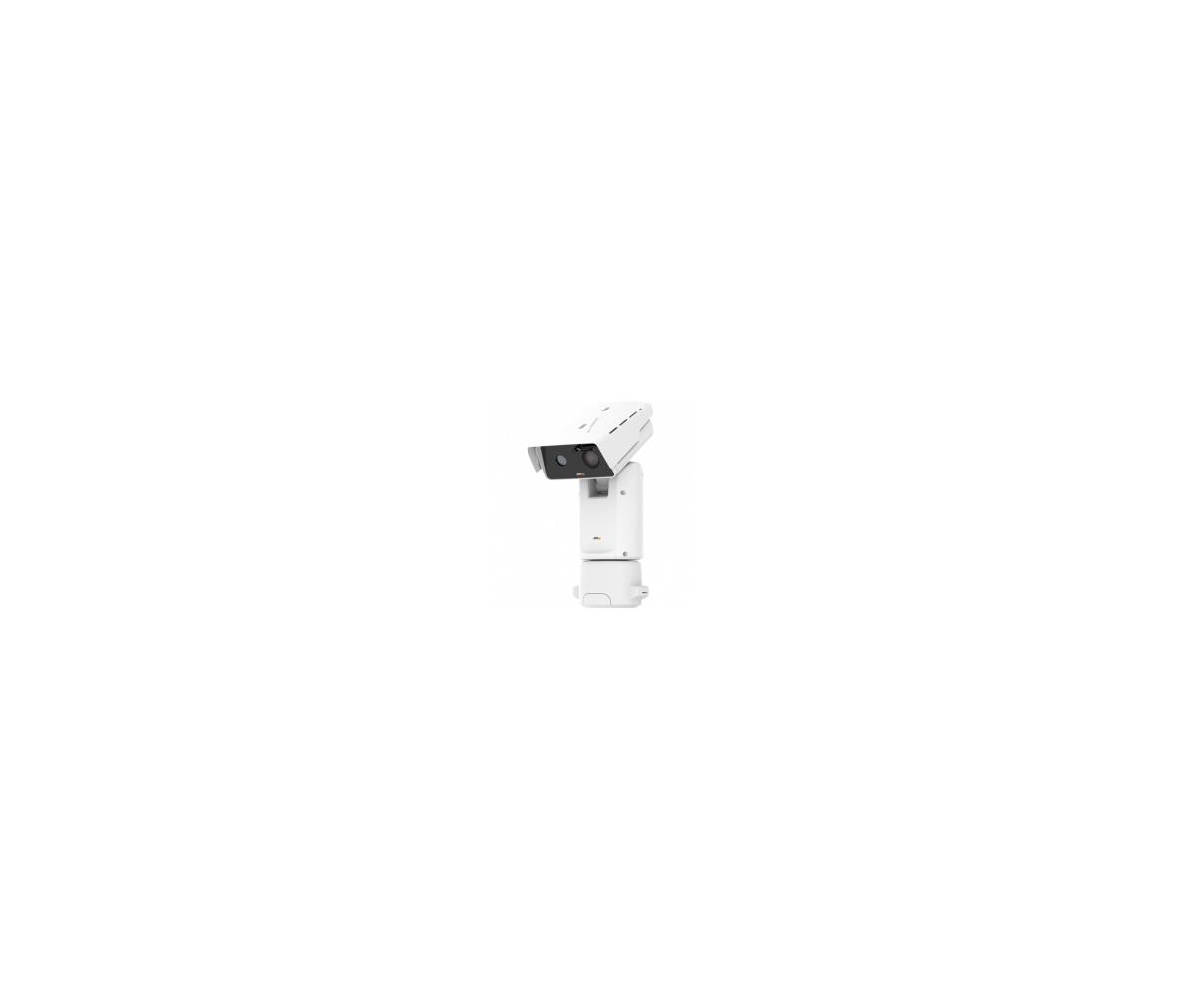

AXIS Q8742-E Network Camera is a positioning camera that brings a powerful – and cost effective – combination of visual and thermal video streams in a single PTZ camera to border surveillance and other applications with similar requirements.
AXIS Q8742-E gives you two excellent cameras in one: a thermal camera with outstanding contrast in 640x480 resolution for reliable detection and verification around-the-clock and in all weather and light conditions. And an exceptionally light-sensitive visual camera in HDTV 1080p with integrated 30x optical zoom for identification purposes.
The visual camera also has Wide Dynamic Range – Forensic Capture for clarity and detail in scenes with both dark and light areas. And Focus recall for instant focus in areas you define. With AXIS Q8742-E Zoom, you get 3x thermal zoom allowing you to detect a human as far as 3 km (3342 yards), according to Johnson's criteria.. See the detection range table below for detailed information. The long-distance detection is useful for mission critical usage, such as detecting vehicles or intruders from far.
Swift, smooth 360° coverage
AXIS Q8742-E lets operators choose between really slow or super-fast pan (from 0.05 to 120 degrees per second) and tilt movement (from 0.05 to 65 degrees per second). So, they get smooth and jerk-free panoramic viewing when they need it and can respond quickly to events. The camera can be column-mounted, on poles or walls for a 360° panoramic view and a ground-to-sky view from -90° to +45°. It can withstand high winds when it’s standing still and winds of up to 37-meter per second (83 mph) when it’s in motion. And an SFP slot means it supports long-distance fiber-optic connection.
Single-unit savings
AXIS Q8742-E is a highly cost-effective solution. You need just one camera and one IP address to benefit from long-distance thermal detection, visual identification and PTZ capabilities. Which means lower purchase, installation and operational costs. In addition, Axis Zipstream technology reduces storage and bandwidth needs with up to 50% or more while ensuring that important details are captured in full image quality.
Fast and easy
Its slim design and many available accessories let you install it anywhere you want. It has an SFP slot, so it supports cost-effective, long-distance fiber-optic connection . And maintenance is made simple by a remote-control cleaning system that features long-life wipers. A 22 meter (72 feet) long, heavy-duty power cable is available as optional accessory. Designed for outdoor use, the cable has 3-wire, 12AWG and a jacket diameter of 10 mm (0.4 in).
| Performance | |
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Y |
| Design | |
| Form factor | Box |
| Mounting type | Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP66 |
| Camera | |
| Minimum illumination | 0.02 lx |
| Lens viewing angle, horizontal | 17ø |
| Lens viewing angle, vertical | 12.8ø |
| Tilt angle range | -90 - 45ø |
| Tilt speed | 65 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 120 ø/sec |
| Camera shutter speed | 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Y |
| Sensor type | CMOS |
| Number of effective pixels (H x V) | 640 x 480 pixels |
| Lens system | |
| Number of lenses | 1 |
| Lens diameter | 3.5 cm |
| Maximum aperture number | 1.2 |
| Night vision | |
| Night vision | Y |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264 |
| Frame rate | 30 fps |
| Network | |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Bluetooth | N |
| Storage | |
| Built-in HDD | N |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 512 MB |
| Internal memory | 512 MB |
| Power | |
| Power source type | AC, DC |
| AC input voltage | 24 V |
| Power consumption (typical) | 16 W |
| Power consumption (max) | 204 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 55 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 245 mm |
| Depth | 360 mm |
| Height | 582 mm |
| Weight | 14.7 kg |
| Packaging content | |
| Number of cameras | 1 |
| Warranty | |
| Base Warranty | Non Non |
