Q8752-e Zoom 8.3 Fps Network Camera
ITCurry #: 13835786 | Article #: 01840-001
slide 3 of 2
Price:
19861.61
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information

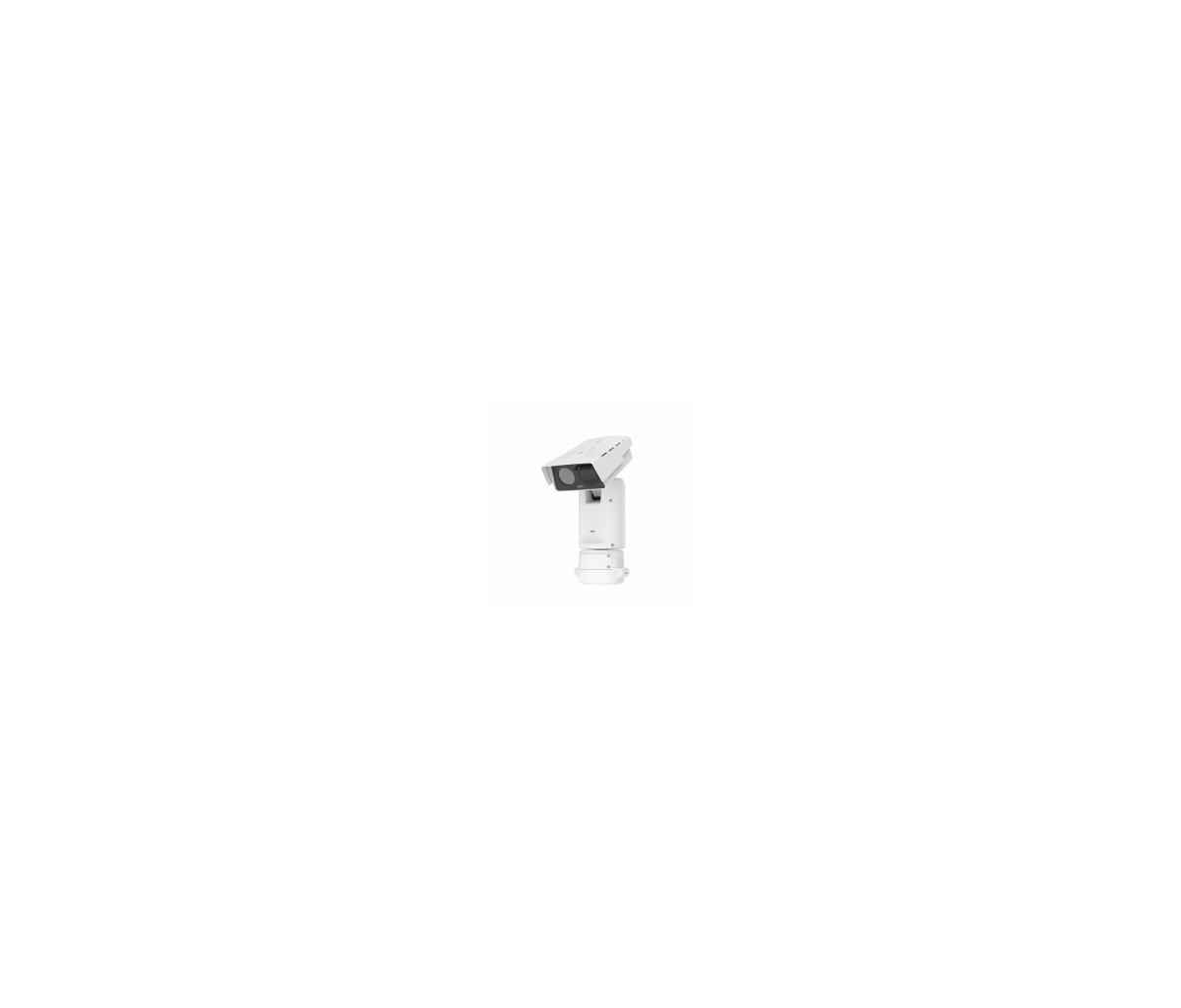

AXIS Q8752-E offers reliable thermal detection and visual verification in one bispectral camera. It features 360° infinite pan for fast repositioning and continuous tracking of objects. Featuring Electronic Image Stabilization (EIS) on both channels it ensures smooth video. Forensic WDR and Lightfinder 2.0 guarantees images with saturated colors and sharp details of moving objects even in challenging light or near darkness. This robust camera is packed with advanced security functionality. Built on a powerful analytics platform, it’s easy to add custom-made 3rd party analytics. Furthermore, it’s possible to connect AXIS Q8752-E using fiber optic cabling to overcome distance and bandwidth limitations.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Preset points | Yes |
| Thermal module | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Thermal sensitivity (NETD) | 50 mK |
| Certification | 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-3(A)/NMB-3(A), CISPR 35, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4, EN 50498, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN 60529 IP66, IEC 62262 IK10g , NEMA 250 Type 4x, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B), IEC/EN 60068-2-1, IEC/EN 60068-2-2, IEC 60068-2-6, IEC/EN 60068-2-14, IEC 60068-2-27, IEC/EN 60068-2-78, MIL-STD-810G (Method 501.5, 502.5, 505.5, 506.5, 507.5, 509.5), NIST SP500-267 |
| Design | |
| Form factor | Box |
| Product colour | Black, White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Fog proof | Yes |
| Camera | |
| Minimum illumination | 0.01 lx |
| Field of view (FOV) angle (thermal module) | 17 x 12.8ø |
| Lens viewing angle, horizontal | 58.5ø |
| Lens viewing angle, vertical | 35ø |
| Tilt angle range | -90 - 45ø |
| Tilt speed | 65 ø/sec |
| Pan range | 0 - 360ø |
| Pan speed | 120 ø/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Image sensor | |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Auto focus | Yes |
| Maximum aperture number | 4 |
| Minimum aperture number | 1.4 |
| Focal length range | 4.3 - 137.6 mm |
| Aperture number (thermal module) | 1.6 |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, G.711, LPCM, PCM |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Security | |
| Password protection | Yes |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Alert notification type | |
| Power | |
| Power source type | AC, DC |
| AC input voltage | 20 - 28 V |
| Power consumption (typical) | 16 W |
| Power consumption (max) | 204 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 65 øC |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 360 mm |
| Height | 582 mm |
| Packaging content | |
| Sun shield included | Yes |
| Manual | Yes |
| Technical details | |
| Doesn't contain | PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
