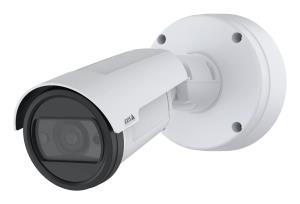

AXIS Q1808-LE Bullet Camera
This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It’s available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.
Excellent forensic details and powerful performance
Featuring a 4/3” image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, a deep learning processing unit (DLPU) lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
Great coverage in wide, open areas
With a wide (12 – 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.
Excellent details at great distances
With a tele (50 – 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it’s ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 150 m (500 ft) without the need for extra lighting.
Enjoy big savings
Not only does this powerful camera deliver outstanding 4K details, but thanks to Zipstream H.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you’ll enjoy the optimal level of Zipstream for your video storage - regardless of your VMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode reduces power demands by as much as 50% in certain temperature ranges.
Reliable and robust
AXIS Q1808-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With supervised inputs, you’ll be notified if the connection is cut. Plus, it can be powered with DC power and PoE, and even if there’s a power outage, redundant DC power ensures a reliable power supply to safeguard your data. This robust, outdoor-ready camera is IP66-, IP67-, IK10- and NEMA 4X-rated and can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Plus, with premium Q-line functionality, it guarantees always-great image quality.
| Performance | |
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Certification | UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM |
| Design | |
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| Housing material | Aluminium, Glass |
| Protection features | Impact resistant |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination | 0.02 lx |
| Angle of rotation | 360ø |
| Lens viewing angle, horizontal | 21 - 7ø |
| Lens viewing angle, vertical | 12 - 4ø |
| Tilt angle range | 0 - 90ø |
| Pan range | -180 - 180ø |
| Camera pixel size | 4.63 æm |
| Camera shutter speed | 1/45500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size | 101.6 / 3 mm (4 / 3") |
| Sensor type | CMOS |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 3x |
| Number of lenses | 1 |
| Focal length range | 50 - 150 mm |
| Focus | Motorized |
| Maximum aperture number | 4 |
| Detect distance (wide) | 426.9 m |
| Detect distance (tele) | 1275.8 m |
| Observe distance (wide) | 169.4 m |
| Observe distance (tele) | 506.3 m |
| Recognize distance (wide) | 85.4 m |
| Recognize distance (tele) | 255.1 m |
| Identify distance (wide) | 42.7 m |
| Identify distance (tele) | 127.6 m |
| Closest focusing distance | 5 m |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 120 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution | 3712 x 2784 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 120, 160 x 90, 1280 x 800, 3840 x 2160 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| ROM capacity | 2048 MB |
| Ports & interfaces | |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
| Password protection | Yes |
| Security algorithms | SNMP |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Management features | |
| Remotely operated | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 14.9 W |
| Power consumption (max) | 51 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 3.2 kg |
| Features | |
| License plate recognition | Yes |
| Sustainability | |
| Compliance certificates | REACH, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Cables included | LAN (RJ-45) |
| Manual | Yes |
| Other features | |
| Doesn't contain | PVC/BFR |
| Warranty | |
| Base Warranty | Non Non |
