Product Information

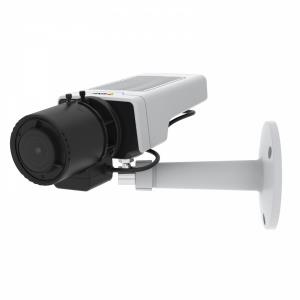

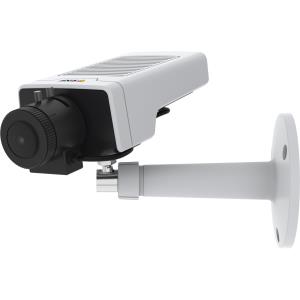

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Performance | |
Placement supported | Indoor & outdoor |
Connectivity technology | Wired |
PTZ modes | Digital PTZ |
Wide Dynamic Range (WDR) | Yes |
Day/night mode | Yes |
Design | |
Form factor | Box |
Mounting type | Wall |
Product colour | Black, White |
Camera | |
Minimum illumination | 0.1 lx |
Camera shutter speed | 1/33500 - 2 s |
Image sensor | |
Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
Sensor type | CMOS |
Lens system | |
Focal length range | 3 - 10.5 mm |
Night vision | |
Night vision | Yes |
Video | |
Maximum resolution | 1920 x 1080 pixels |
Frame rate | 30 fps |
Audio | |
Audio system | 2-way |
Network | |
Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
Storage | |
Flash memory | 512 MB |
Security | |
Active tampering alarm | Yes |
Power | |
Power source type | DC, PoE |
Power consumption (typical) | 4.4 W |
Power consumption (max) | 6.6 W |
Power consumption (Power over Ethernet (PoE)) | 4.5 W |
DC output voltage | 10, 12, 15, 16, 24, 28 |
Power over Ethernet (PoE) | Yes |
Operational conditions | |
Operating temperature (T-T) | -20 - 50 øC |
Packaging content | |
Number of cameras | 1 |
Technical details | |
Night mode | Yes |
Logistics data | |
Harmonized System (HS) code | 85258900 |
Warranty | |
Base Warranty | Non Non |
