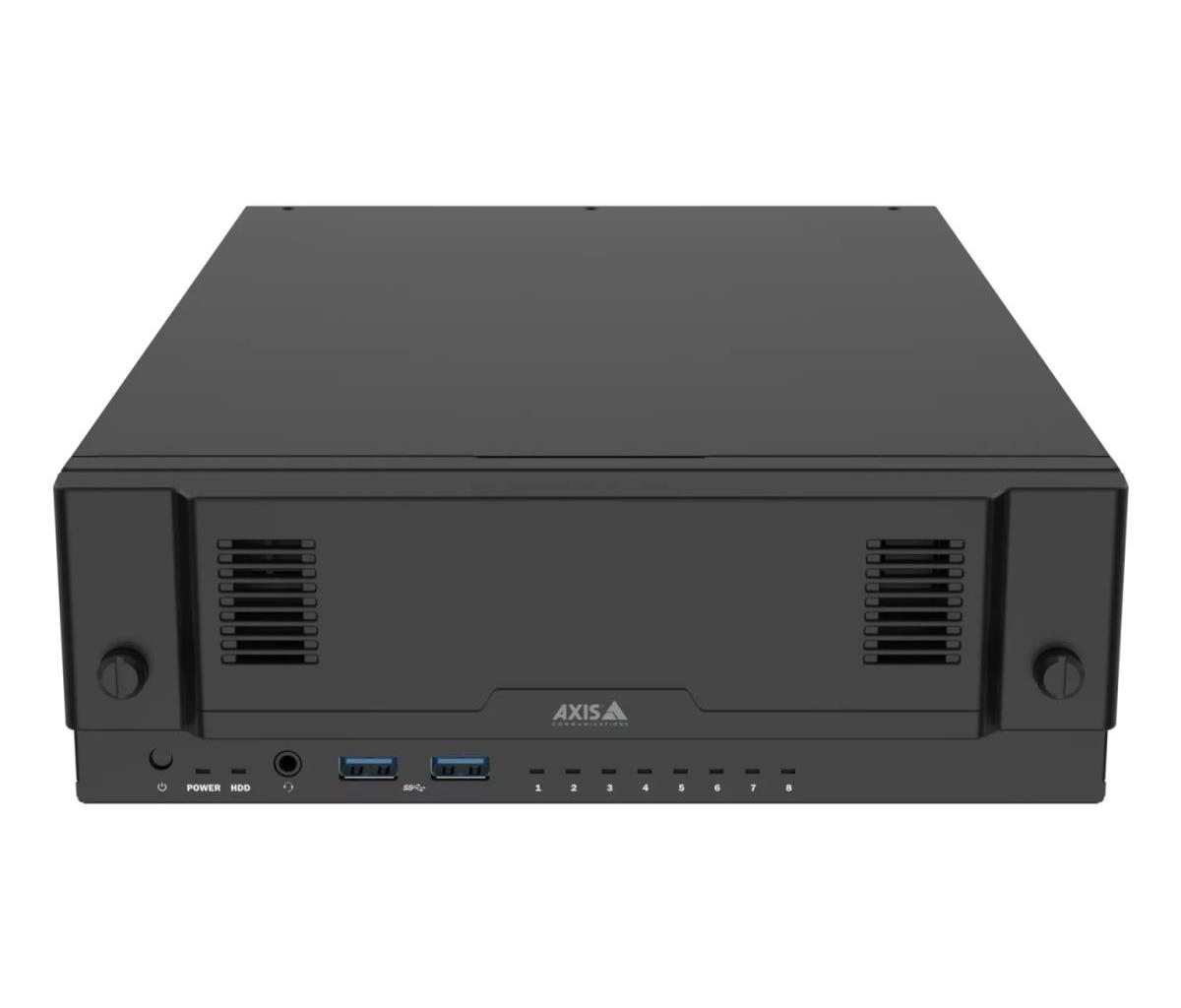

Camera Station S2208 Mk Il Appliance
ITCurry #: 13836636 | Article #: 02807-002-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
This 8-channel standalone appliance includes everything you need to run your complete surveillance system such as AXIS Camera Station Pro licenses, an 8-port PoE switch, and 4 TB of storage. It comes with pre-loaded software and tools to minimize installation time.
Powerful and versatile
This standalone appliance is compact and silent and won’t disturb local operations, ideal for example, in coffee shops, retail stores, and offices. With eight channels and AXIS Camera Station Pro licenses included, it gives you complete control, and you can run your entire solution on-premises. It comes with one empty bay for easy storage expansion, and support for AXIS Camera Station Cloud Storage if recording in the cloud is preferred. Built using powerful components, it supports AI applications such as Smart search 2. Furthermore, the built-in switch features an additional uplink port for easy and cost-efficient system expansion using AXIS S30 Recorder Series.
Easy to install and maintain
It comes preloaded with software and tools to help you set up and maintain your system. For instance, AXIS Recorder Toolbox includes an intuitive wizard to set up hostname, network settings, and date and time settings. It also includes a dashboard providing information on the built-in switch including uptime, current configuration, and basic settings. This all-in-one device provides everything you need to support your operations and update and maintain your system — all from one supplier. What’s more, advanced replacement service (RMA) and a 5-year hardware warranty ensure trouble-free ownership and better control over total costs.
Created with cybersecurity in mind
This reliable recording solution offers high-security features and standards. It includes an encrypted operating system and recordings with a FIPS 140-2 Level 2 certified TPM. Produced in a TAA-designated country, this appliance complies with NDAA FY19 and FY2023 and comes with a Software Bill of Materials (SBOM), ensuring compliance with strict regulations. Secure boot protects the system and ensures the recorder only runs a trusted operating system. Furthermore, the connected devices are physically isolated from the external network, reducing the risk of cyberattacks from the corporate network or the internet.
| Performance | |
| Video input channels | 8 channels |
| Maximum resolution | 7680 x 4320 pixels |
| Internal memory | 16 MB |
| Internal memory type | DDR5 |
| Hard drive | |
| Number of HDDs installed | 1 |
| HDD capacity | 4 GB |
| Number of HDDs supported | 2 |
| Total installed storage capacity | 4 GB |
| Maximum storage capacity | 8 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| HDMI output | Yes |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DC-in jack | Yes |
| Networking standards | IEEE 802.3at |
| Features | |
| Brand compatibility | Ajax |
| Reset button | Yes |
| Product colour | Black |
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM, BSMI, FCC, NOM |
| Processor | |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 270 W |
| Power consumption (typical) | 75 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 3.5 A |
| Total Power over Ethernet (PoE) budget | 135 W |
| System requirements | |
| Windows operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 65 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Safety warning | CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368. 1:2018, IS 13252 |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 230 mm |
| Height | 78 mm |
| Weight | 5.8 kg |
| Packaging content | |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Warranty | |
| Base Warranty | Non Non |
