M1137 Mk Il I-cs Box Camera

ITCurry #: 13836297 | Article #: 02581-001
Price:
528.70 Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Email us for assistance

Related products

Product Information

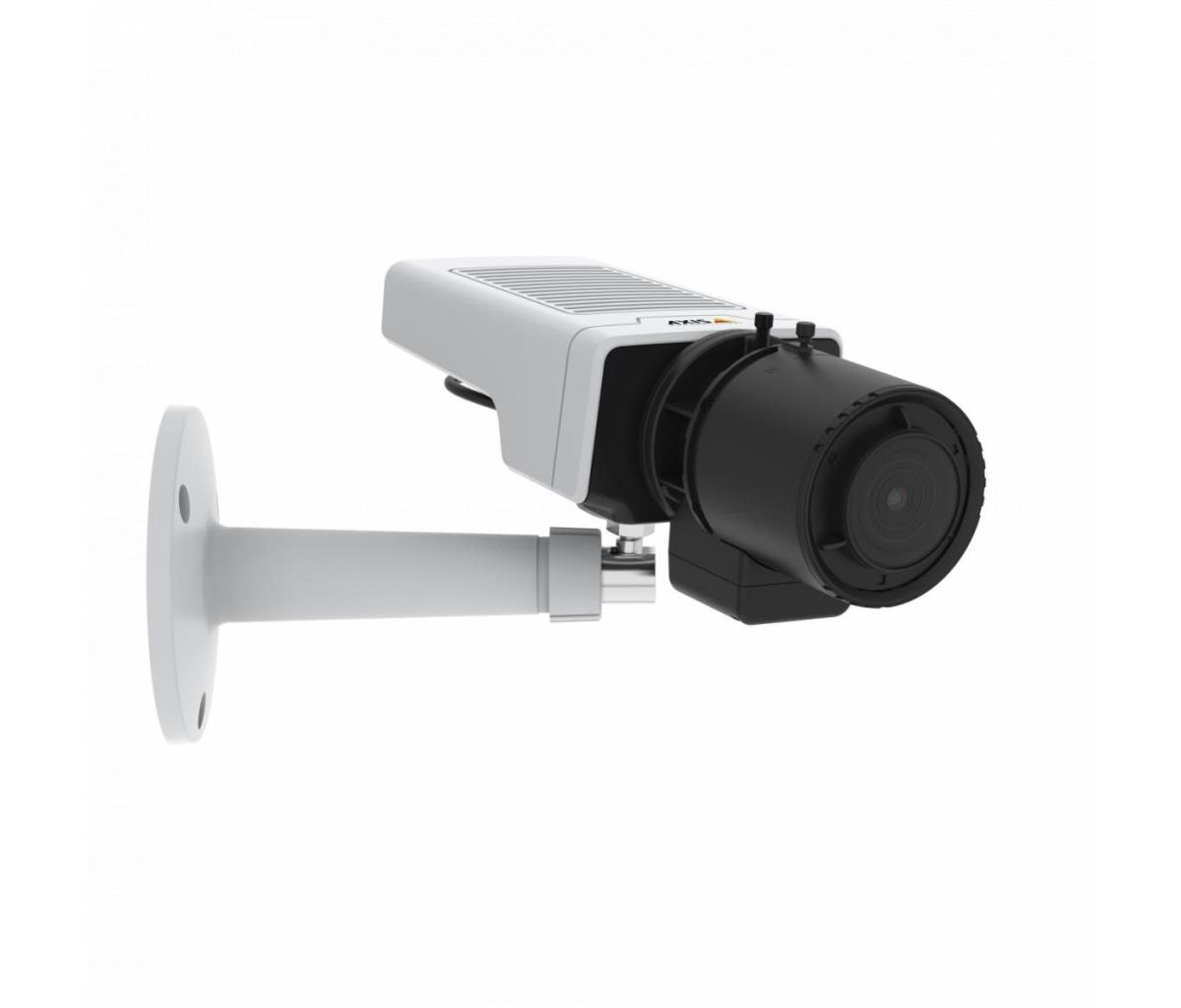

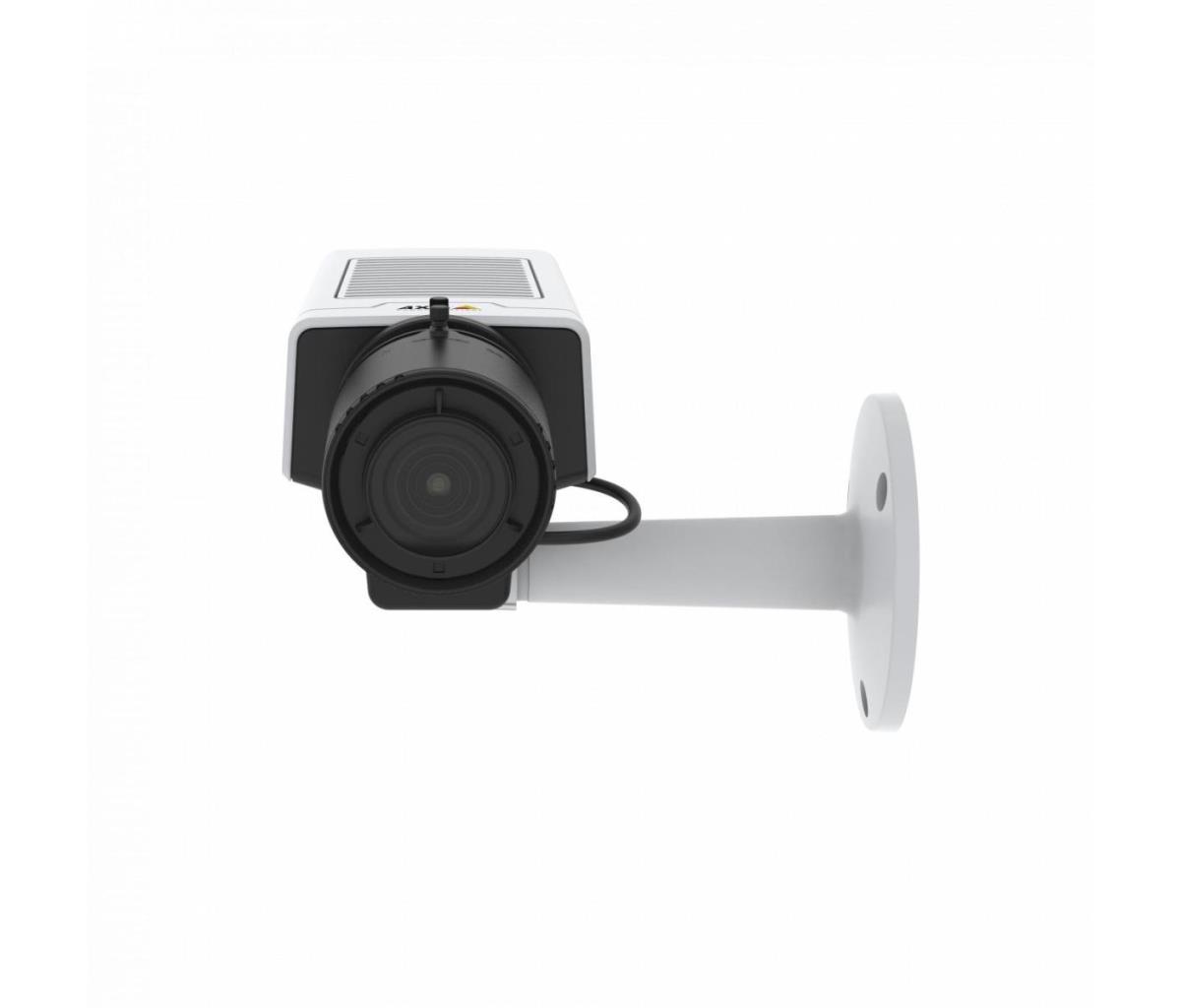

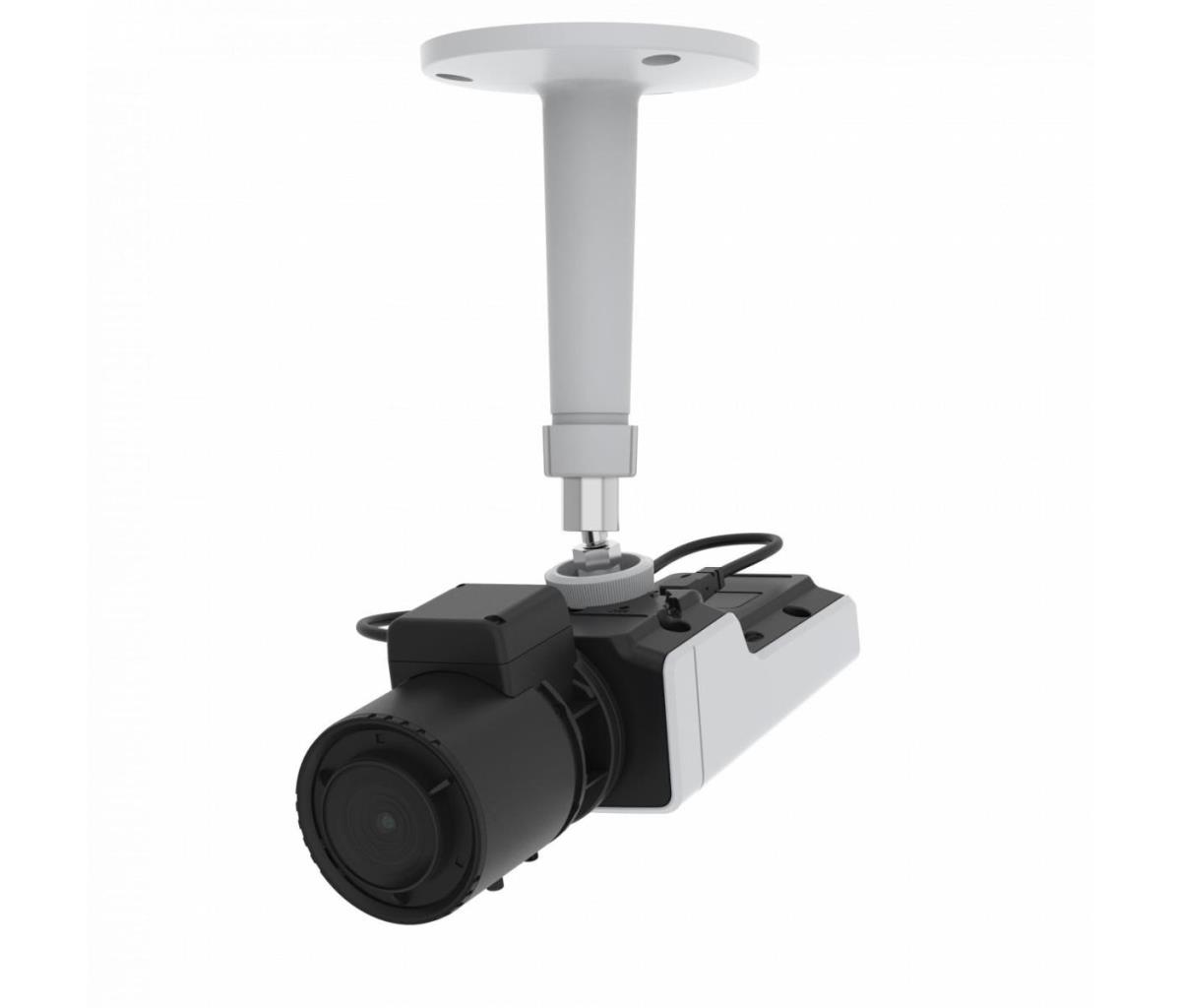

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.

Performance
Type IP security camera
Placement supported Indoor & outdoor
Connectivity technology Wired
Wide Dynamic Range (WDR) Yes
Day/night mode Yes
Design
Form factor Box
Mounting type Wall
Product colour Black, White
Camera
Minimum illumination 0.17 lx
Lens viewing angle, horizontal 112ø
Lens viewing angle, vertical 82ø
Camera shutter speed 1/33500 - 1/5 s
Image sensor
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Sensor type CMOS
Lens system
Focal length range 2.8 - 13 mm
Night vision
Night vision Yes
Video
Maximum resolution 2592 x 1944 pixels
Total megapixels 5 MP
Video formats supported H.264, H.265
Video compression formats MPEG4
Supported graphics resolutions 160 x 120
Frame rate 30 fps
Network
Networking standards IEEE 802.3af, IEEE 802.3at
Storage
Flash memory 512 MB
Power
Power source type DC, PoE
Power consumption (typical) 4.4 W
Power consumption (max) 6.6 W
Power consumption (Power over Ethernet (PoE)) 4.5 W
DC output voltage 10, 12, 15, 16, 24, 28
Operational conditions
Operating temperature (T-T) -20 - 50 øC
Storage temperature (T-T) -40 - 65 øC
Operating relative humidity (H-H) 10 - 85%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 70 mm
Depth 179 mm
Height 59 mm
Width (with stand) 70 mm
Depth (with stand) 179 mm
Height (with stand) 179 mm
Packaging content
Number of cameras 1
Warranty
Base Warranty Non Non
