Product Information

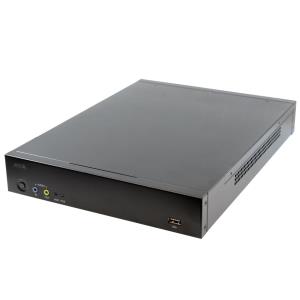

Extensively tested and validated with a wide range of Axis products, this flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS S30 Series. It supports up to two 4K resolution monitors for optimal overview. With a micro form factor, it’s ideal wherever space is limited. It comes preloaded with AXIS Camera Station client software. Plus, the integrated AXIS Recorder Toolbox installation wizard ensures quick and easy installation. Furthermore, it includes next business day on-site hardware replacement, 5-year warranty, and one point-of-contact for support.
Performance | |
Video input channels | 1 channels |
Number of simultaneously playbacked channels | 36 channels |
Internal memory | 8192 MB |
Operating system installed | Windows 10 IoT Enterprise |
Wireless LAN features | |
Wi-Fi | No |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Power over Ethernet (PoE) | No |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
Line-in | Yes |
Audio output | 1 |
DisplayPorts quantity | 2 |
Features | |
Brand compatibility | Axis |
LED indicators | Yes |
Product colour | Black |
Processor | |
Built-in processor | Yes |
Power | |
Power consumption (max) | 90 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Output current | 4.62 A |
Output voltage | 19.5 V |
Warranty | |
Base Warranty | Non Non |
Operational conditions | |
Operating temperature (T-T) | 0 - 45 øC |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -40 - 65 øC |
Storage relative humidity (H-H) | 5 - 95% |
Technical details | |
Sustainability compliance | Yes |
Compliance certificates | Trade Agreements Act (TAA) |
Weight & dimensions | |
Width | 182 mm |
Depth | 178 mm |
Height | 36 mm |
Weight | 1.1 kg |
Packaging content | |
Cables included | AC |
AC adapter included | Yes |
