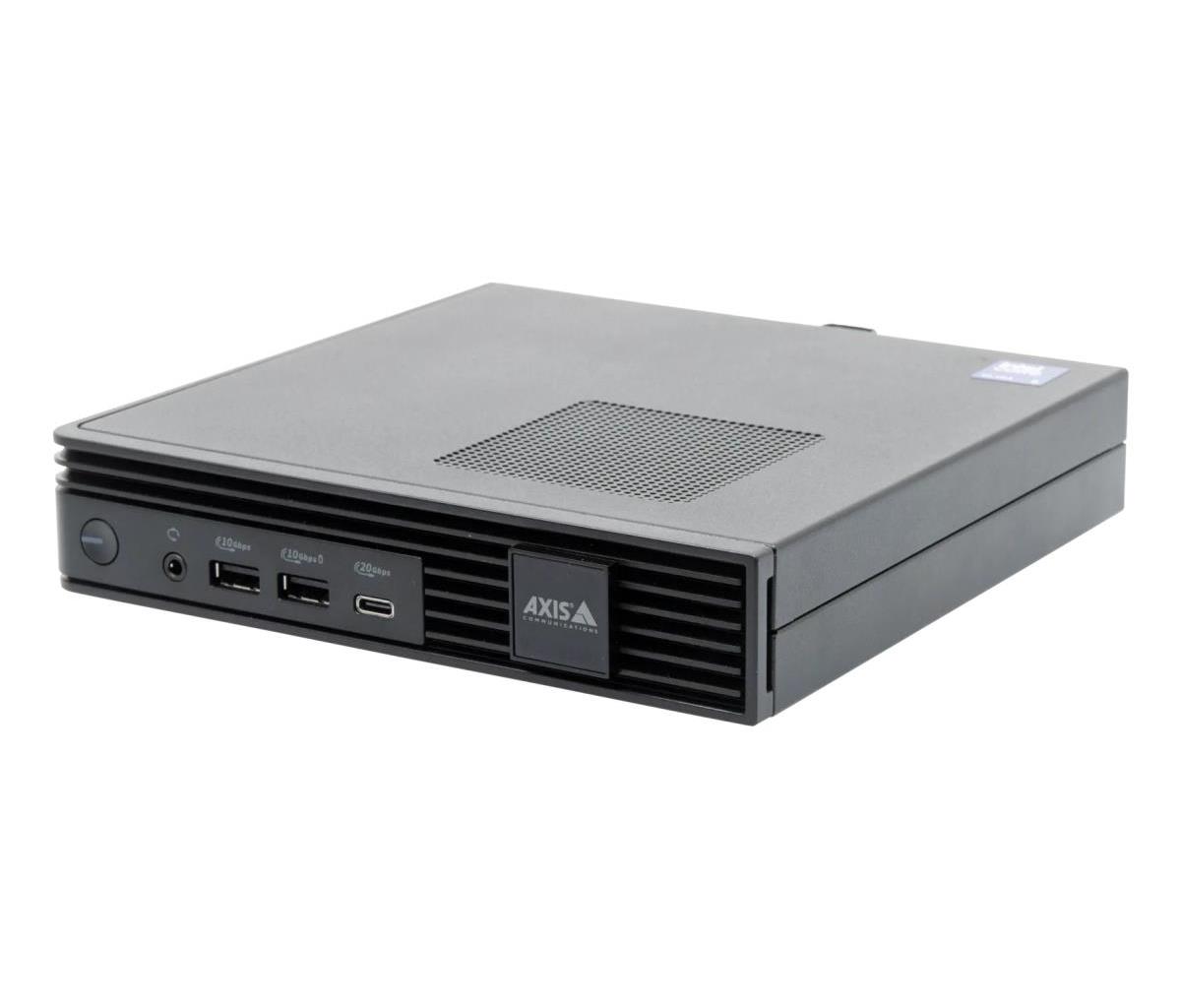

Perfectly matching the Axis portfolio, this compact and flexible workstation can be used either as a client when connected to the server, or as a server when used in combination with AXIS OS-based recorders. It supports up to two 4K resolution monitors for optimal viewing.
Flexible solutions
AXIS S9301 Mk II supports up to two 4K resolution monitors for optimal viewing. Perfectly matching the Axis portfolio, it’s ideal for both retail stores and manufacturing sites. This compact and flexible workstation can be used as a client or server depending on your needs.
Reliable surveillance system
AXIS S9301 Mk II offers an affordable, end-to-end solution with high reliability. It’s extensively tested and validated with a wide range of Axis products, including audio and video devices as well as Axis recorders. To further safeguard system uptime, the product includes next business day on-site hardware replacement and a 5-year warranty. Whenever support is needed, there is only one point of contact for your entire system.
AXIS S9301 Mk II as a client
AXIS S9301 Mk II can be used as a client when combined with a server such as AXIS Camera Station S12 and S22 Series. This is ideal for retail stores, where it acts as a workstation for end users to operate the system. It can be placed on office desks or anywhere you want it, allowing users to easily access recordings and watch live video using up to two 4K monitors. In this setup, most of the workload for the Video Management Software (VMS) is processed on the server, typically installed in a server room.
AXIS S9301 Mk II as a server
AXIS S9301 Mk II can also be used as a server when used with AXIS S30 Recorder Series or AXIS S4000 Recorder. This is ideal for smaller installations, such as in coffee shops and retail stores, where it provides the infrastructure needed to run your entire system, offering centralized processing power and great scalability. When recording is done on AXIS S30 Recorder Series or AXIS S4000 Recorders, you can use AXIS S9301 Mk II as your server to run your AXIS Camera Station Pro system with up to two monitors for optimal viewing, it offers a seamless and cost-efficient way to expand your system as your needs grow. Use this flexible workstation together with AXIS Camera Station Pro for your access control or audio systems.
Ease of installation
With a micro form factor, this workstation is ideal wherever space is limited. It comes preloaded with AXIS Camera Station Pro client software to enable quick connection. You can download AXIS Audio Manager Pro and use the 10 included licenses to get you started with your network speakers. Furthermore, the integrated AXIS Recorder Toolbox features an intuitive installation wizard, making it easy to set up hostname, network settings, and date and time settings.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 235 |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | FCLGA1851 |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Optical drive type | No |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel© Graphics |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Design | |
| Chassis type | Micro Tower |
| Product colour | Black |
| Housing material | Plastic |
| Performance | |
| Product type | Workstation |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 |
| Processor special features | |
| Intel Secure Boot | Yes |
| Power | |
| Power supply | 180 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Power consumption (typical) | 50 W |
| DC input voltage | 19.5 V |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 øC |
| Storage temperature (T-T) | -40 - 65 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Compliance certificates | RoHS, REACH, BSMI, CSA, KC, Norma Oficial Mexicana (NOM), RCM, Trade Agreements Act (TAA) |
| Weight & dimensions | |
| Width | 182 mm |
| Depth | 178 mm |
| Height | 36 mm |
| Weight | 1.2 kg |
| Packaging content | |
| Cables included | Power |
| AC adapter included | Yes |
| Display | |
| Display included | No |
| Other features | |
| Warranty period | 5 year(s) |
| Power plug type | Type G |
| Warranty | |
| Base Warranty | Non Non |
