USB-c Multiport Dock With Power Pass-through (13 Devices)
ITCurry #: 90314002 | Article #: UH3237-AT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

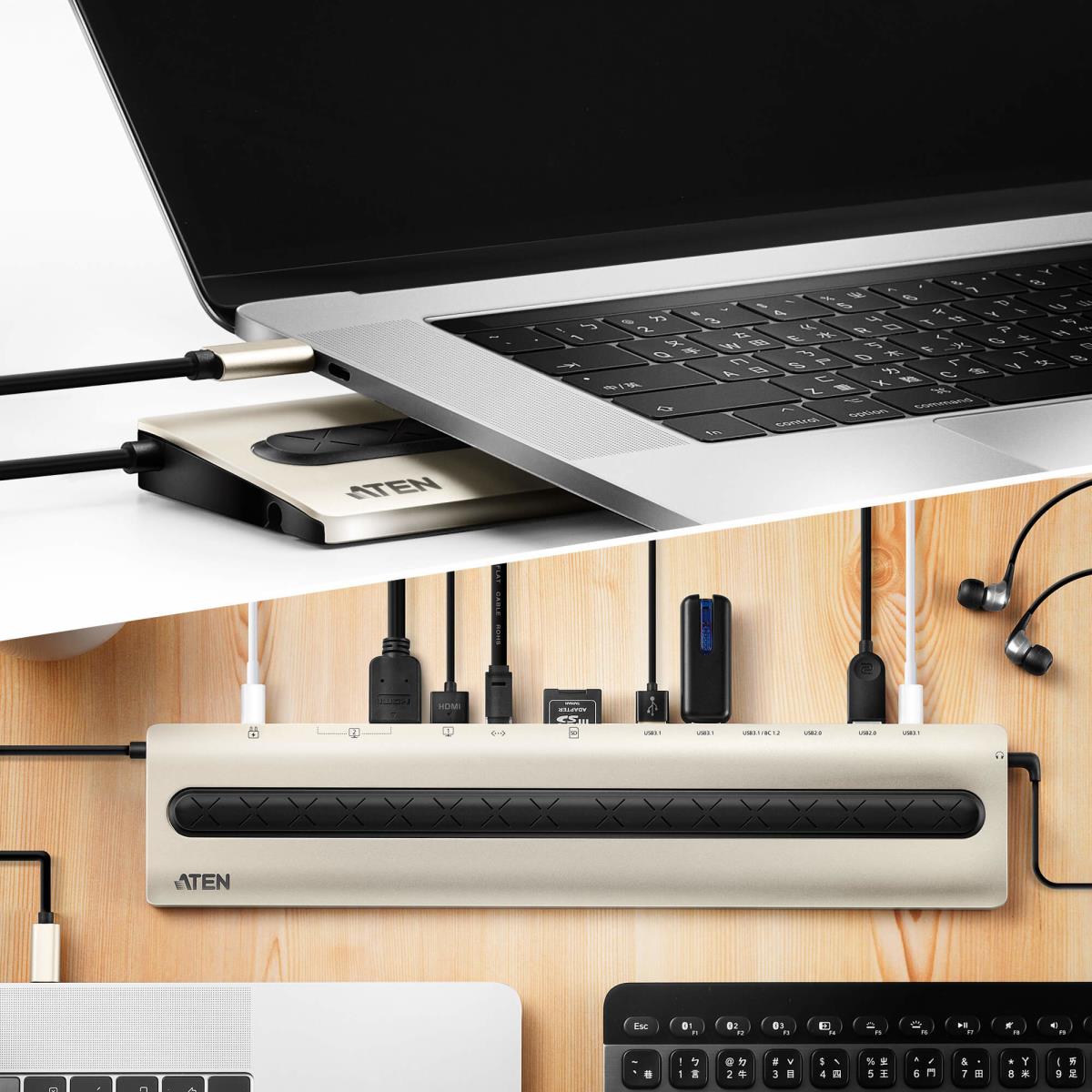

The ultra-sleek ATEN USB-C Multiport Dock is a one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 13 devices, with power delivery pass-through to boost your productivity with extra HDMI, VGA, USB 3.2 Gen 1, USB 2.0, SD/MicroSD, Ethernet and Audio connections.
Enjoy stunning 4K video or a dual HD monitor setup with HDMI, and VGA functionality. The UH3237 routes video from a source computer to a HDMI monitor via a single cable while maintaining the highest quality 4K resolution. You can also mirror or extend your Windows USB-C laptop to two monitors at 1920 x 1080@60hz.
The UH3237 also supports USB-C Power Delivery Pass-Through up to 85W, which means it can provide power to your device via a USB-C PD power adapter with the PD profile specifications of 5V, 9V, 12V, 15V, 20V.
The integrated USB 3.2 Gen 1 Type-A port supports data transfer rate up to 5Gbps, giving seamless access to USB flash drive. The USB 2.0 Type-A port are designed for keyboard and mouse to minimize the signal interference. The equipped Type-C data port can be used for the latest USB-C devices.
This ergonomic, plug-and-play device (no software drivers are needed) is compatible with all major operating systems (Windows, OS X and iPad Pro).Save space on your desktop by placing your laptop directly on top of the lightweight yet rugged dock or display the dock next to your monitors for a stylish, minimalist workstation.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Maximum memory card size | 128 GB |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum analog resolution | 1920 x 1080 pixels |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black, Grey |
| Housing material | Aluminium, Plastic |
| Power | |
| Power source type | DC |
| Power connector | USB Type-C |
| Power consumption (typical) | 15 W |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | iOS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 350.3 mm |
| Height | 14.8 mm |
| Weight | 371 g |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 420 mm |
| Package height | 38 mm |
| Package weight | 480 g |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 210 mm |
| Master (outer) case gross weight | 5.4 kg |
| Master (outer) case net weight | 3.71 kg |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.3 m |
| Warranty | |
| Base Warranty | Non Non |
