2-port USB-c 4k DisplayPort KVM Dock Switch With Power Pass-through And USB 3.2
ITCurry #: 90314305 | Article #: US3311-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Switch Between 2 USB-C Laptops
US3311 takes our agile and powerful KVM switch solutions to another dimension. It enables plug-n-play single USB-C cable connection so that 2 laptops can share 1 monitor and 1 keyboard and mouse set, plus 4K@60 and 4-port USB 3.2 SuperSpeed connectivity significantly save desk space and boost your efficiency.

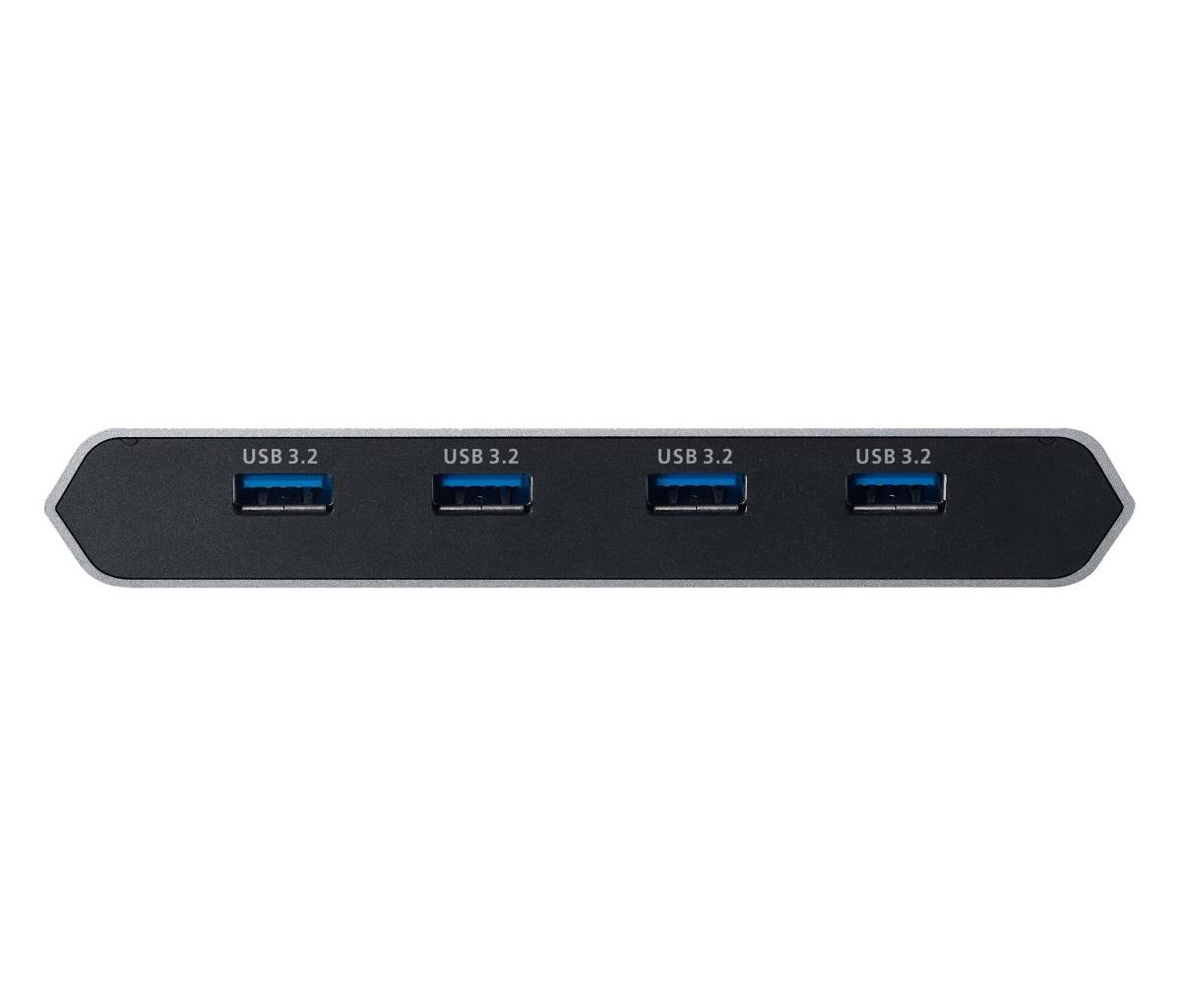

Superb 4-Port SuperSpeed Expansion
With 4 USB 3.2 gen1 ports, transfer data at up to 5Gb/s. Charge and power external devices, no need for an extra USB hub.
Unreal Switching Speed
Exclusive ATEN technology brings astoundingly fast switching speed. Switching between two systems takes three seconds,* making your workflow more efficient than ever before.
Always Correct Resolutions and Display Configurations
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations when switching ports under all operating systems, ensuring smooth desktop operation.
Exceptional AV Performance in Vivid 4K@60Hz
US3311 empowers your desktop operations with visual enhancement thanks to 4K DCI compliance. It supports up to 3840x2160@60Hz and also works with 21:9 Ultrawide and 32:9 super Ultrawide monitors for graphics-intensive work.
Work While Charging with 100W Power Delivery
The USB-C KVM dock switch also works as a charging station to keep your USB-C devices and USB peripherals powered on.

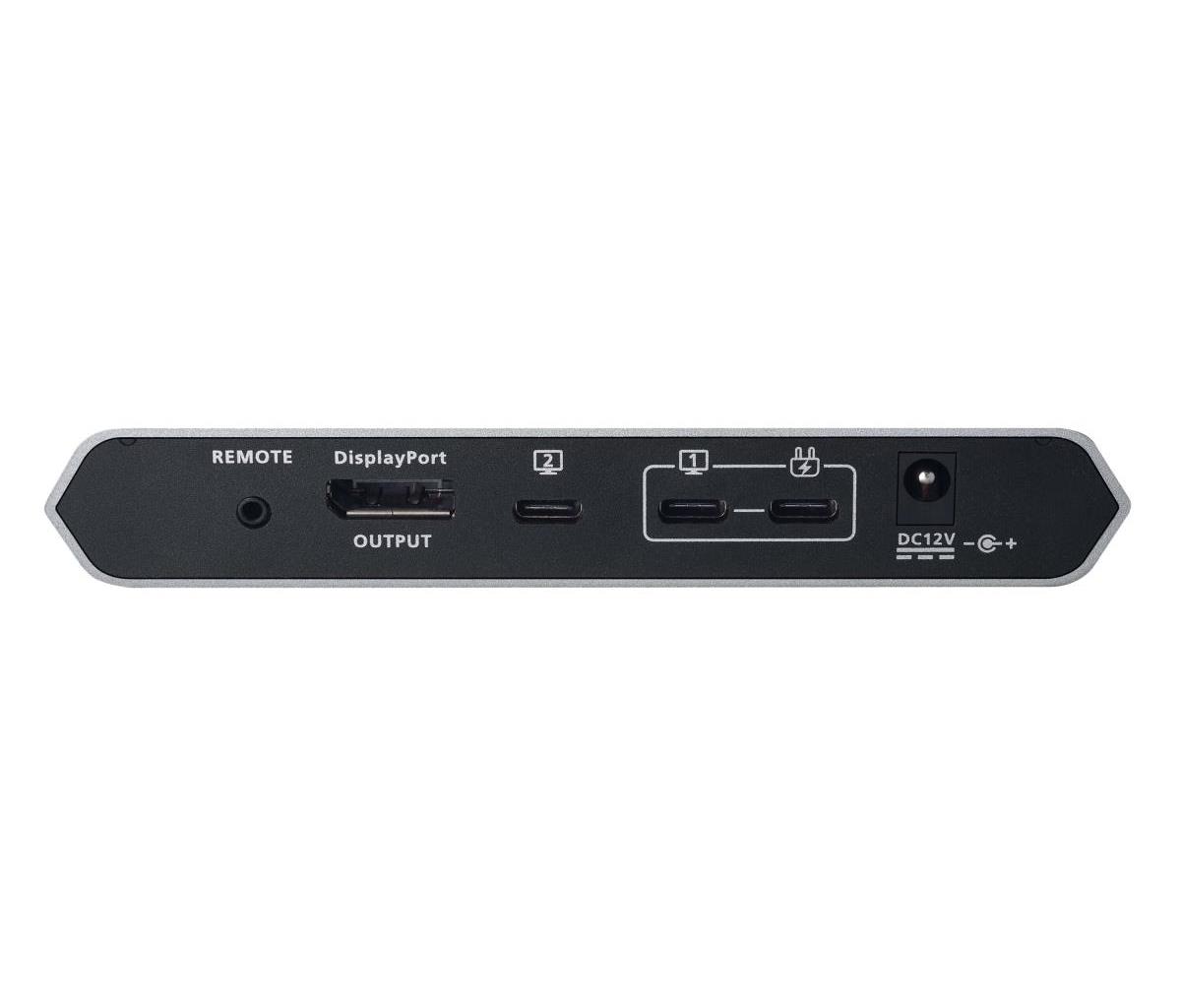

| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB Type-C ports quantity | 3 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 5 Gbit/s |
| Plug and Play | Yes |
| Design | |
| Product colour | Silver |
| Housing material | Aluminium |
| Wired remote switch | Yes |
| LED indicators | Yes |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Input current | 3 A |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Other operating systems supported | Android |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 119 mm |
| Depth | 143 mm |
| Height | 23.8 mm |
| Weight | 350 g |
| Packaging data | |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package volume | 1982.18 cmü |
| Package weight | 1.01 kg |
| Packaging content | |
| Cables included | USB Type-C |
| Manual | Yes |
| AC adapter included | Yes |
| Remote control included | Yes |
| Logistics data | |
| Master (outer) case net weight | 4.25 kg |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.43 kg |
| Master (outer) case volume | 19538.62 cmü |
| Country of origin | Taiwan |
| Warranty | |
| Base Warranty | Non Non |
