8-outlet 1u Eco Pdu Metered And Switched By Outlet (10a) (8x C13)
ITCurry #: 90314289 | Article #: PE8108G-ATA-G
slide 2 of 3
Price:
343.25
Ex VAT
Shipping:
FREE Shipping.
Out of Stock. Contact Us!
Related products
slide 6 to 10 of 15
Product Information
-8 outlets
-15A (UL derated 12A) / 10A
-Outlet Power Measurement

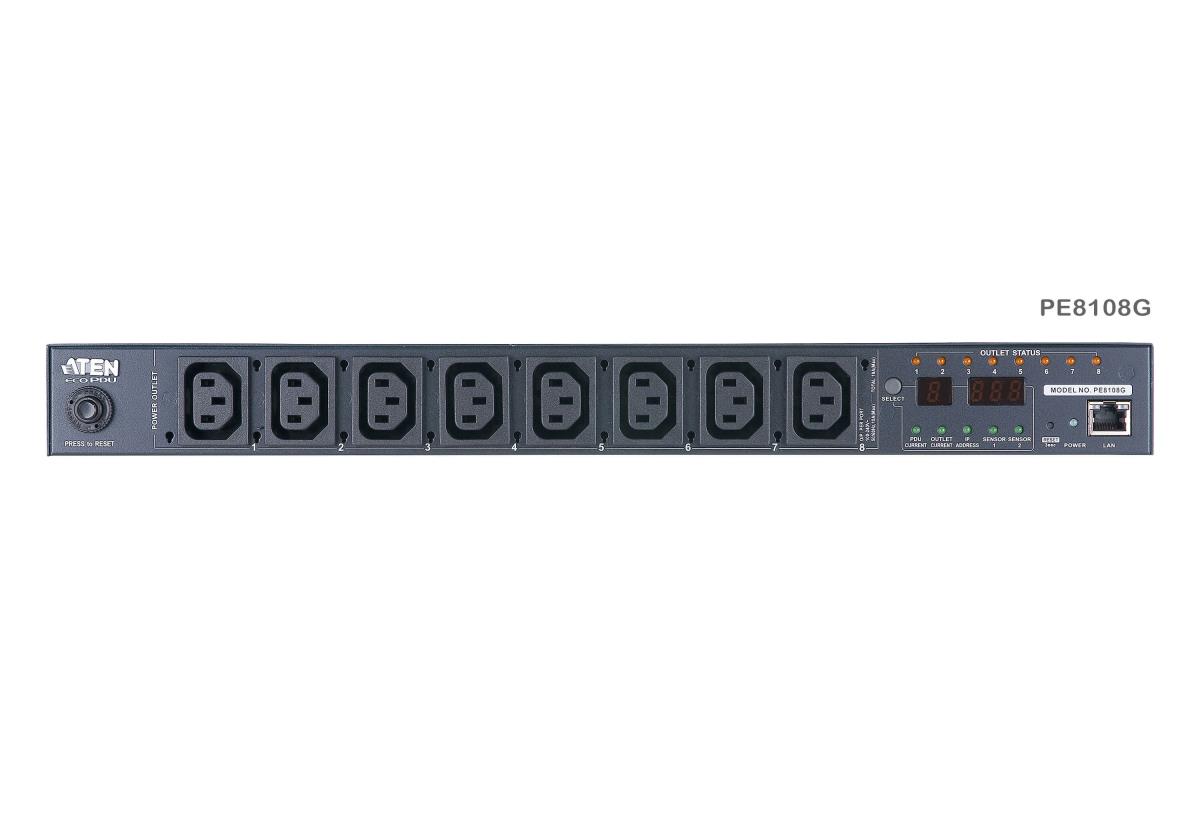

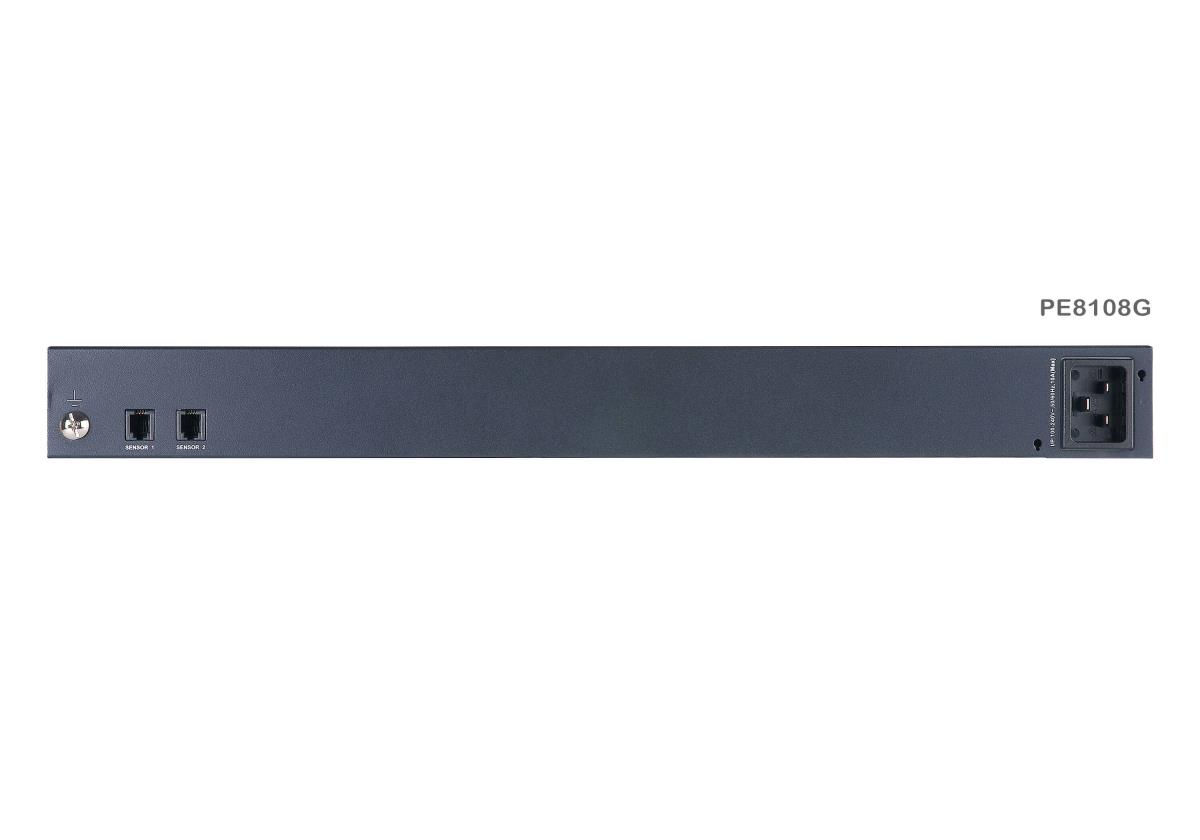

The PE8108 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
1x PE8108 Power Distribution Unit
1x Power Cord
1x Rack Mount Kit
1x Software CD
1x User Instructions
| Design | |
| PDU types | Metered, Switched |
| Rack capacity | 1U |
| Mounting | Horizontal |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| LED indicators | LAN, Link, Power, Status |
| Cable length | 3 m |
| Management features | |
| Monitoring | Current |
| Power | |
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 10 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 2300 VA |
| Maximum input current per phase | 10 A |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, TUV-CB, CE-LVD, GOST, |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 220.4 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | Yes |
| Packaging data | |
| Package weight | 3.99 kg |
| Package width | 116 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Logistics data | |
| Master (outer) case net weight | 9.66 kg |
| Master (outer) case width | 388 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 12.9 kg |
| Products per master (outer) case | 3 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
